Ideal Display Board Imax W 172660

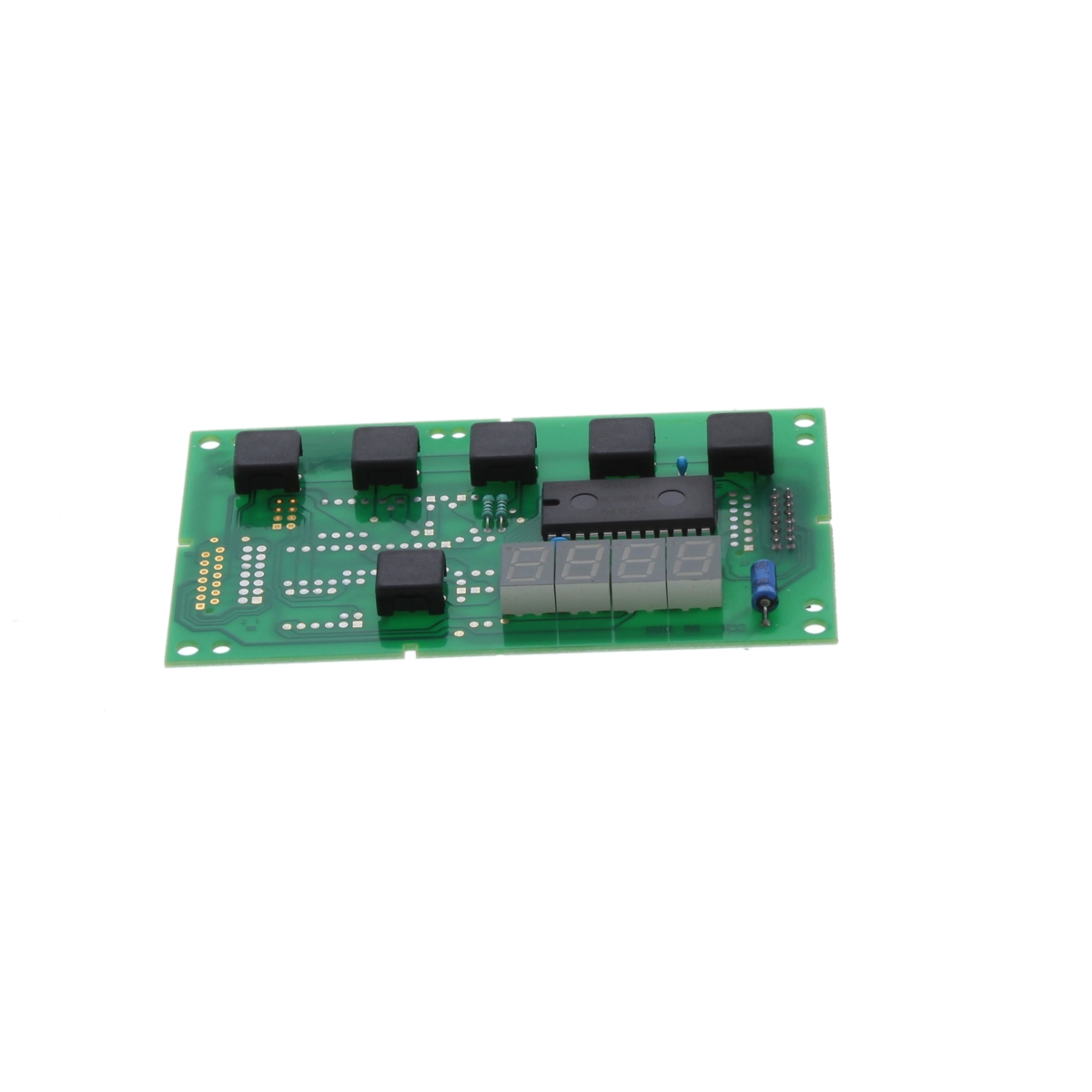

Ideal display board (PCB) for Imax W and Xtra commercial boilers, part 172660, giving the user interface readout and fault codes.
At a glance
- Part type: Printed circuit board (display board)
- Also known as 1178986
£114.62
£95.52 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal display board is the printed circuit board that drives the user interface on Ideal W and Ideal Xtra commercial boilers. It handles the display readout and the fault code information shown to the engineer or end user during servicing and fault finding. The board is supplied as a spare under part number 172660 and is listed against Ideal's commercial boiler range.
Signs this part needs replacing
- The boiler display is blank or unlit while the appliance still runs or attempts to fire
- Fault codes cannot be read from the display, leaving diagnosis without a code reference
- The display flickers, dims or shows partial segments that do not match the boiler's actual state
- The boiler locks out with no readable indication on the front panel
- Controls or buttons on the display panel stop responding
Before you order
- Check the boiler model and GC number against the compatibility list, as the same appliance family uses more than one board variant
- Confirm the number on the existing board matches 172660 or the alternative number 1178986 before ordering
- Isolate the electrical supply to the appliance before removing or refitting the board
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 172660 |
|---|---|
| Barcode / EAN | 5022141726606 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1178986 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL IMAX W100 | — | — | — | |
| IDEAL COMMERCIAL IMAX W100P - PROPANE | — | — | — | |
| IDEAL COMMERCIAL IMAX W45 | 41-397-97 | 41-397-97 | — | — |
| IDEAL COMMERCIAL IMAX W45P - PROPANE | 41-399-01 | 41-399-01 | — | — |
| IDEAL COMMERCIAL IMAX W60 | 41-397-98 | 41-397-98 | — | — |
| IDEAL COMMERCIAL IMAX W60P - PROPANE | 41-399-02 | 41-399-02 | — | — |
| IDEAL COMMERCIAL IMAX W80 | 41-397-99 | 41-397-99 | — | — |
| IDEAL COMMERCIAL IMAX W80P - PROPANE | 41-399-03 | 41-399-03 | — | — |
| IDEAL COMMERCIAL IMAX XTRA E120 | — | — | — |
Showing 10 of 29 compatible appliances.
