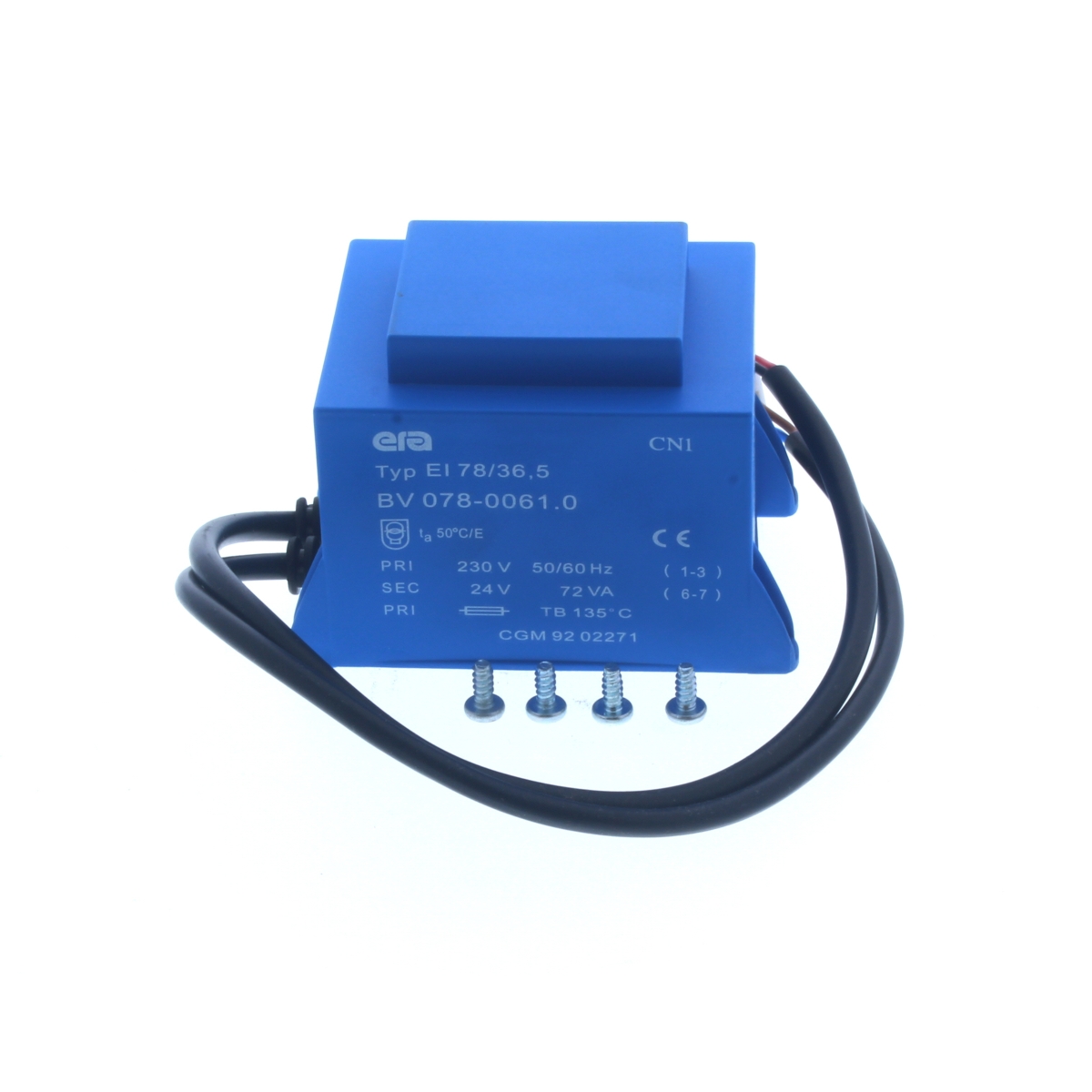

Ideal Transformer Imax W 172657
Control panel transformer for Ideal Commercial Imax W boilers, part 172657, with alternative number 1178984.
At a glance
- Part type: Transformer
- Appliance family: Ideal Commercial Imax W
- Also known as 1178984
£224.21
£186.84 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 172657 is a transformer used in the control panel section of Ideal Commercial Imax W appliances. It forms part of the user interface assembly, the area that carries the control knobs and digital display used to adjust the appliance settings. The transformer provides the low-voltage supply that the control panel electronics rely on to operate.
Signs this part needs replacing
- The control panel display stays blank with the appliance otherwise powered.
- The boiler does not respond when settings are changed at the control panel.
- Control panel functions cut in and out intermittently during use.
- The panel loses its settings or resets without input.
- No low-voltage output is measured at the control panel supply.
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct variant.
- Confirm the model and, where applicable, the fuel type, as propane and natural gas versions are listed separately.
- Note the alternative number 1178984, which may appear on older documentation or labels.
- Work inside the control panel should be carried out by a competent engineer, with the appliance isolated before any part is removed.
Mechanical
| Part type | Transformer |
|---|---|
| Appliance family | Imax W |
Compliance
| Manufacturer part number (MPN) | 172657 |
|---|---|
| Barcode / EAN | 5022141726576 |
| Commodity code | 8504 31 00 90 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1178984 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL IMAX W100 | — | — | — | |
| IDEAL COMMERCIAL IMAX W100P - PROPANE | — | — | — | |
| IDEAL COMMERCIAL IMAX W45 | 41-397-97 | 41-397-97 | — | — |
| IDEAL COMMERCIAL IMAX W45P - PROPANE | 41-399-01 | 41-399-01 | — | — |
| IDEAL COMMERCIAL IMAX W60 | 41-397-98 | 41-397-98 | — | — |
| IDEAL COMMERCIAL IMAX W60P - PROPANE | 41-399-02 | 41-399-02 | — | — |
| IDEAL COMMERCIAL IMAX W80 | 41-397-99 | 41-397-99 | — | — |
| IDEAL COMMERCIAL IMAX W80P - PROPANE | 41-399-03 | 41-399-03 | — | — |
| IDEAL COMMERCIAL IMAX XTRA E120 | — | — | — |
Showing 10 of 29 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — IMAX W45 (GC 41-397-97), IMAX W45P - PROPANE (GC 41-399-01), IMAX W60 (GC 41-397-98), IMAX W60P - PROPANE (GC 41-399-02), IMAX W80 (GC 41-397-99), IMAX W80P - PROPANE (GC 41-399-03)
manualmanualIDEAL COMMERCIAL appliance manual — IMAX XTRA E120, IMAX XTRA E160, IMAX XTRA E200, IMAX XTRA E240, IMAX XTRA E280, IMAX XTRA E80
manualmanualIDEAL COMMERCIAL appliance manual — IMAX XTRA E320, IMAX XTRA E400, IMAX XTRA E480, IMAX XTRA E560
manualmanualIDEAL COMMERCIAL appliance manual — IMAX XTRA F120, IMAX XTRA F160, IMAX XTRA F200, IMAX XTRA F240, IMAX XTRA F280, IMAX XTRA F80
manualNo technical questions yet for this part.
