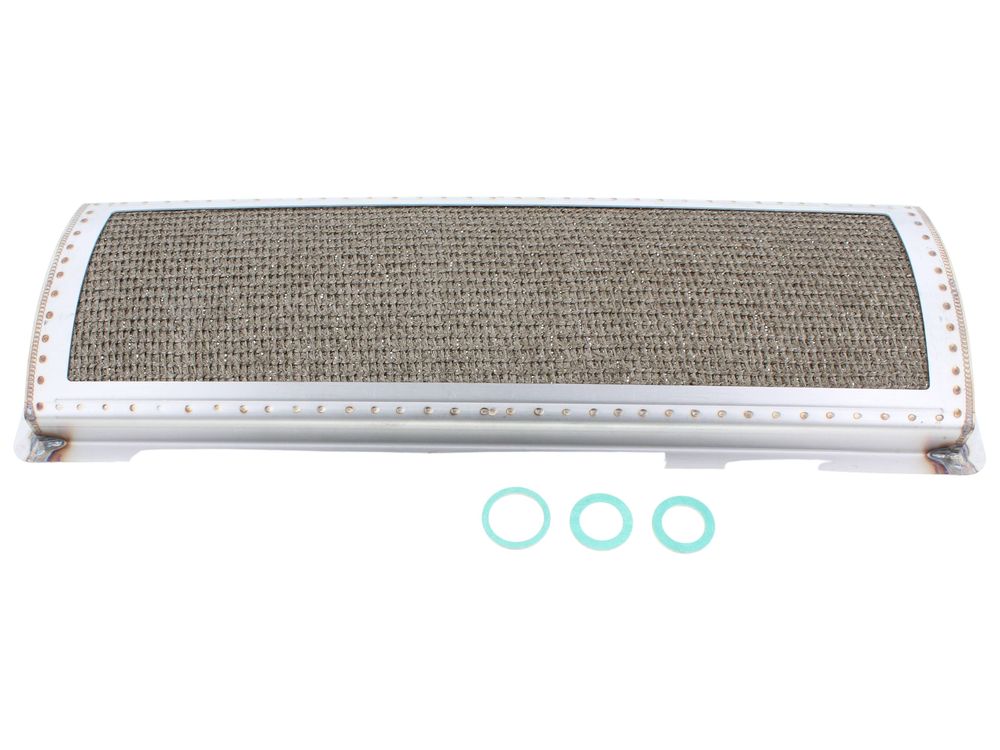

Ideal Burner Assembly W80 and P 172648
Ideal burner assembly, part 172648, for Ideal Commercial Imax W80 and W100 series boilers, including propane variants.
At a glance
- Part type: Burner assembly
- Also known as 1178975
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£592.22
£493.52 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
This is a replacement burner assembly manufactured by Ideal for its Commercial boiler range. It carries part number 172648 and is listed for the Imax W80 and W100 series, covering both natural gas and propane (P) versions of those appliances. The burner delivers the gas and air mixture to the combustion chamber, so its condition directly affects flame quality, ignition reliability and combustion readings.
Signs this part needs replacing
- Persistent ignition lockout or repeated failed light-ups on the appliance
- Yellow, lazy or lifting flame instead of a stable blue flame
- Soot deposits or discolouration around the burner head and heat exchanger
- Uneven flame pattern across the burner surface
- Rising CO readings or combustion analysis outside the expected range
Before you order
- Check the appliance model and GC number against the compatibility list, as the W80, W80P, W100 and W100P variants use different configurations.
- Confirm the part number on the existing burner matches 172648 or the alternative number 1178975 before ordering.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Burner Assembly |
|---|---|
| Appliance family | Imax W80 and W100 series |
Compliance
| Manufacturer part number (MPN) | 172648 |
|---|---|
| Barcode / EAN | 5022141726484 |
| Commodity code | 8416 20 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1178975 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL IMAX W100 | — | — | — | |
| IDEAL COMMERCIAL IMAX W100P - PROPANE | — | — | — | |
| IDEAL COMMERCIAL IMAX W80 | 41-397-99 | 41-397-99 | — | — |
| IDEAL COMMERCIAL IMAX W80P - PROPANE | 41-399-03 | 41-399-03 | — | — |
