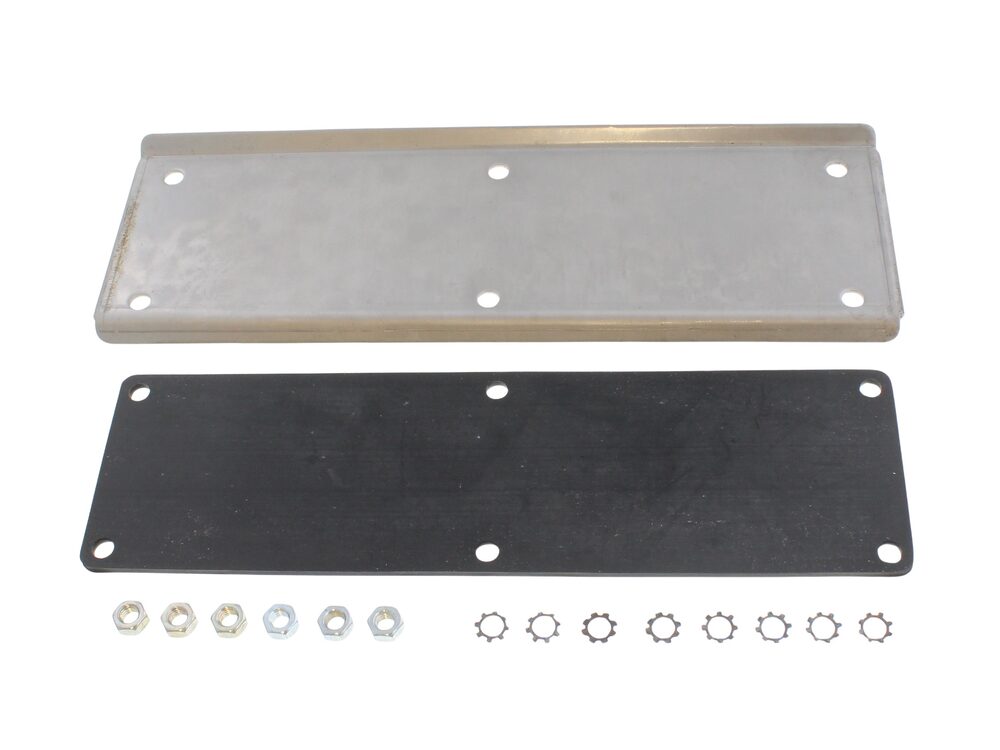

Ideal Inspection Cover Assembly 172630
Ideal inspection cover assembly, part 172630, a casing component for Ideal Commercial Imax W80 and W100 series boilers.
At a glance
- Part type: Casing assembly / inspection cover
- Appliance family: Ideal Commercial Imax W80 and W100 series
- Also known as 1178960
£91.19
£75.99 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal inspection cover assembly, part number 172630, is a casing component supplied for Ideal Commercial boiler appliances. It forms the removable cover over the inspection aperture on the appliance casing, closing off that opening once service or inspection work is complete.
It is listed under the Ideal Commercial Boiler Spares range and is used across the Imax W80 and W100 series, including the propane variants.
Signs this part needs replacing
- Cracks, splits or distortion in the cover panel
- Corrosion or heavy surface deterioration around the cover edges
- Damaged or elongated fixing points so the cover no longer sits flush
- Warping that prevents the cover seating correctly on the casing
- Visible damage found during a routine service or inspection
Before you order
- Check the GC number on the appliance data badge against the compatibility list below before ordering
- Confirm the appliance model and variant, as propane and natural gas versions are listed separately
Mechanical
| Part type | Casing assembly |
|---|---|
| Appliance family | Ideal Commercial Imax W80 / W100 |
Compliance
| Manufacturer part number (MPN) | 172630 |
|---|---|
| Barcode / EAN | 5022141726309 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1178960 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL IMAX W100 | — | — | — | |
| IDEAL COMMERCIAL IMAX W100P - PROPANE | — | — | — | |
| IDEAL COMMERCIAL IMAX W80 | 41-397-99 | 41-397-99 | — | — |
| IDEAL COMMERCIAL IMAX W80P - PROPANE | 41-399-03 | 41-399-03 | — | — |
