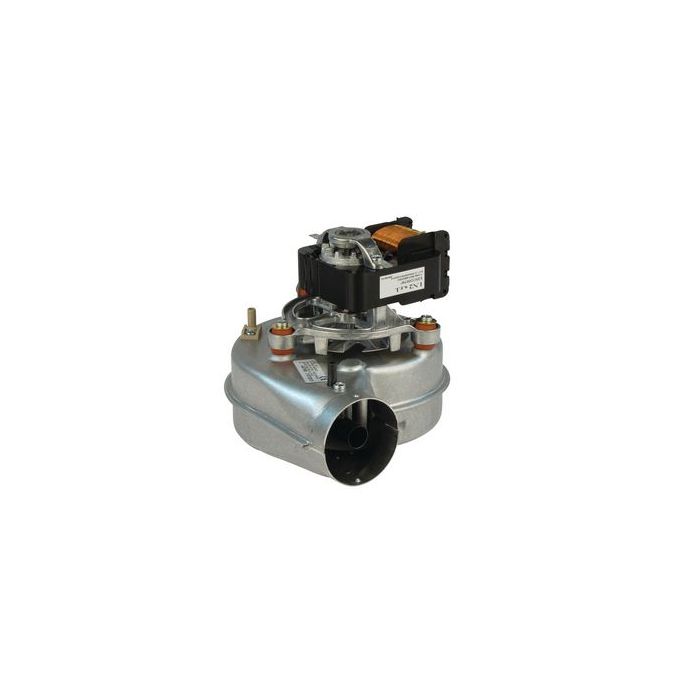

Ideal Fan Assembly 28 KW 172598

Ideal

Ideal Fan Assembly 28 KW 172598

At a glance

  • Part type: Fan assembly
  • Also known as 1178937, N7748
Manufacturer part no.
172598
Showing prices

£133.38

£111.15 ex. VAT · VAT at 20%

In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question

Same-day dispatch

Ordered by 4pm Mon–Fri, 10:30am Sat.

30-day returns

Unused, in original packaging.

What it is

The Ideal Fan Assembly 28 KW (part number 172598) is a replacement fan unit for Ideal Mini boilers. It draws fresh air into the combustion chamber and drives the burnt gases out through the flue, so combustion is correct and the products of combustion leave the appliance safely. The boiler's safety controls stop gas reaching the main burner if the fan is not running correctly.

Signs this part needs replacing

  • The boiler locks out or fails to fire, with a fan or flue fault indicated
  • The fan runs noisily, with rumbling, scraping or whining from the bearings
  • The boiler lights and then shuts down shortly afterwards
  • Repeated lockouts that clear on reset but return
  • Soot, debris or visible damage around the fan housing or impeller

Before you order

  • Check the GC number on the appliance data badge against the numbers listed below.
  • Confirm the model name on the data badge, as both Mini C28 and Mini S28 use this assembly.
  • Inspect the fan gasket and sealing washers and renew them if they are compressed or perished.
