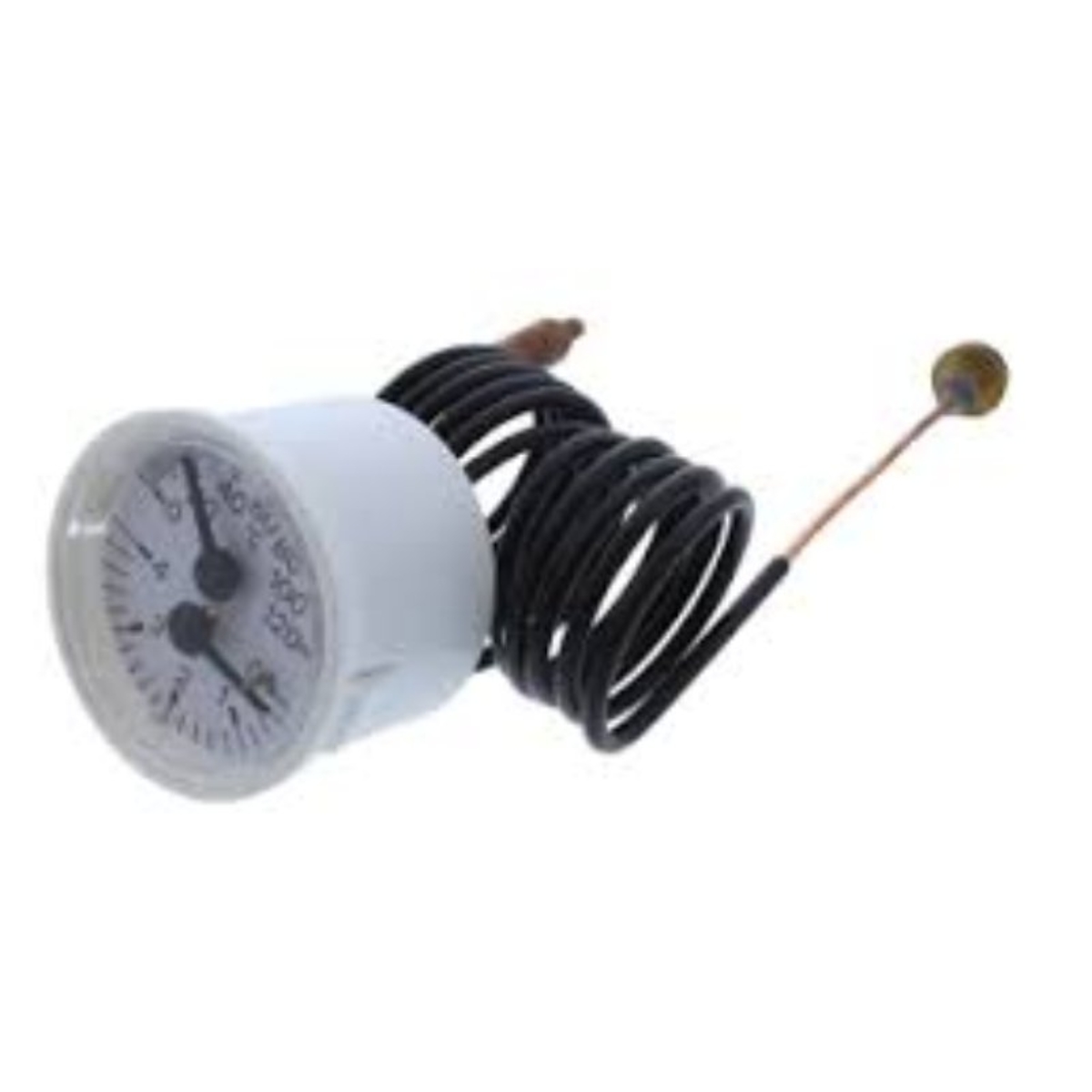

Ideal Pressure Gauge 172551
Ideal 172551 pressure gauge for Ideal Europa boilers, giving a visual reading of system pressure inside the appliance.
At a glance
- Part type: Pressure gauge
- Also known as 1178890
£63.46
£52.88 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 172551 is a pressure gauge fitted to Ideal Europa boilers. It provides a visual reading of the pressure built up within the appliance, letting an engineer or homeowner see at a glance whether the system is holding its normal operating pressure. A reading that falls repeatedly points to a loss of pressure somewhere on the central heating system, which the gauge itself will show before any other symptom appears.
Signs this part needs replacing
- The needle sits at zero even though the system is filled and pressurised.
- The reading falls repeatedly after topping up, indicating the gauge is no longer tracking system pressure accurately.
- The needle sticks, jumps or fails to move smoothly as pressure changes.
- Condensation or misting appears behind the gauge lens, obscuring the scale.
- The boiler locks out or refuses to fire on a low-pressure fault despite correct system pressure.
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the gauge is correct for your model.
- Confirm the model name and variant, as several Europa models share the same casing but differ in output.
- Note the alternative part number 1178890 when cross-referencing against older documentation or supplier listings.
Mechanical
| Part type | Gauges |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 172551 |
|---|---|
| GC number | E83-145 |
| Barcode / EAN | 5022141725517 |
| Commodity code | 9026 20 20 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1178890 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL EUROPA 224 | 47-348-26 | 47-348-26 | — | — |
| IDEAL EUROPA 228 | 47-348-27 | 47-348-27 | — | — |
| IDEAL EUROPA 232 | 47-348-28 | 47-348-28 | — | — |
| IDEAL IDEAL : EUROPA 224 | — | — | — | |
| IDEAL IDEAL : EUROPA 228 | — | — | — | |
| IDEAL IDEAL : EUROPA 232 | — | — | — | |
| IDEAL IDEAL : MINI C24 | — | — | — | |
| IDEAL IDEAL : MINI C28 | — | — | — | |
| IDEAL IDEAL : MINI C32 | — | — | — | |
| IDEAL IDEAL : MINI HE C24 | — | — | — |
Showing 10 of 22 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — EUROPA 224 (GC 47-348-26), EUROPA 228 (GC 47-348-27), EUROPA 232 (GC 47-348-28)
manualmanualIDEAL appliance manual — MINI C24 (GC 47-348-18), MINI C28 (GC 47-348-19), MINI C32 (GC 47-348-25)
manualmanualIDEAL appliance manual — MINI HE C24 (GC 47-348-38), MINI HE C28 (GC 47-348-39), MINI S24 (GC 41-392-98), MINI S28 (GC 41-392-99)
manualmanualIDEAL appliance manual — MINI HE C32 (GC 47-348-41)
manualNo technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
