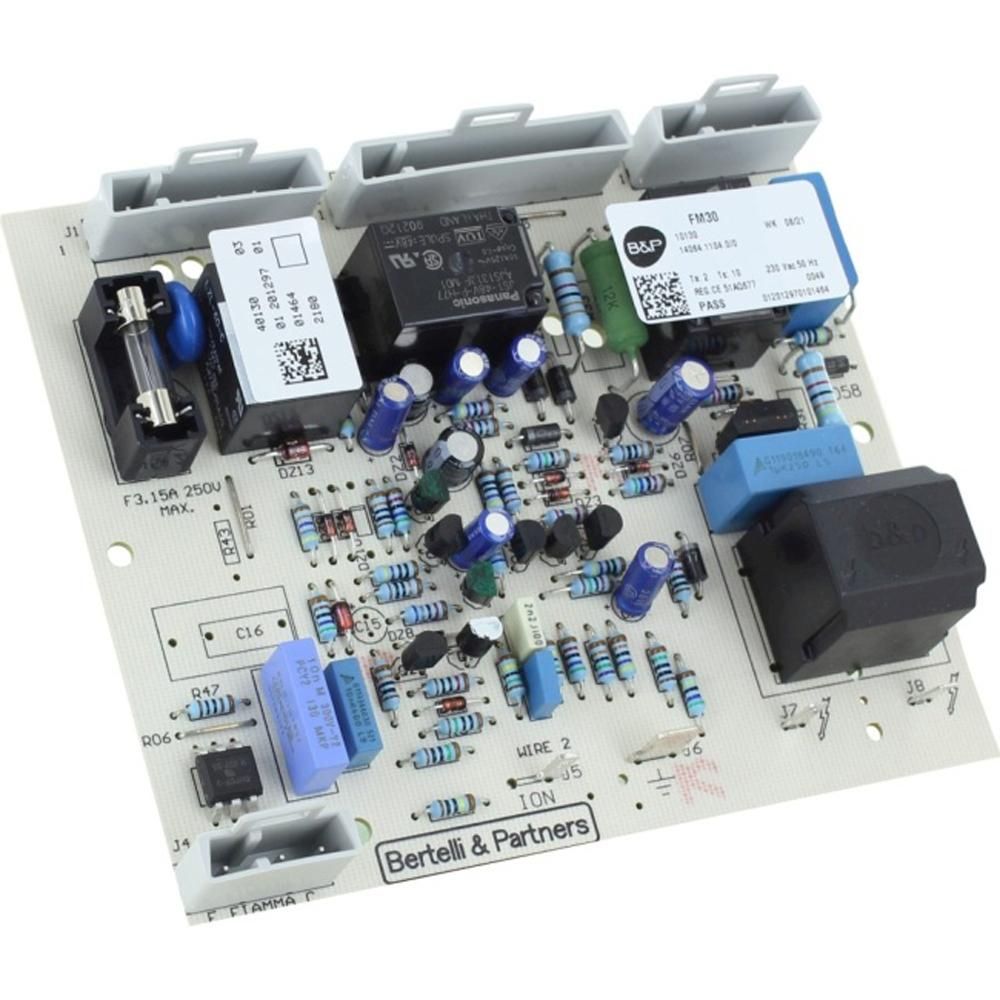

Ideal Ignition PCB 2 Board Set-Up IDEAL172548
Ideal ignition PCB for 2 board set-up, part 172548, for Ideal standard water heaters.
At a glance
- Part type: Ignition PCB
- Also known as 1178888, N2204-A, IDEAL172548
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£225.37
£187.81 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 172548 is an ignition printed circuit board (PCB) intended for use in a two-board set-up. Manufactured by Ideal, it is a spare part for Ideal standard water heaters and associated heating appliances. The ignition PCB generates the high-voltage spark that ignites the gas burner and monitors the flame through a flame sensing electrode. In a two-board configuration, it operates in conjunction with the main control board to ensure a safe and controlled ignition sequence. This part is essential for reliable boiler operation and safety.
Signs this part needs replacing
- Boiler fails to ignite or repeatedly locks out
- No spark at the electrode during the ignition sequence
- Intermittent ignition or flame detection faults
- Error code indicating an ignition or PCB fault
- Visible damage, burn marks, or corrosion on the PCB
Before you order
- Check the appliance model and serial number to confirm compatibility.
- No superseded part numbers are listed for this item.
- Ensure the replacement PCB is compatible with your boiler's control board version.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 172548 |
|---|---|
| GC number | E83-142 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | IDEAL172548, 1178888, N2204-A |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL EUROPA 224 | 47-348-26 | 47-348-26 | — | — |
| IDEAL EUROPA 228 | 47-348-27 | 47-348-27 | — | — |
| IDEAL EUROPA 232 | 47-348-28 | 47-348-28 | — | — |
| IDEAL IDEAL : EUROPA 224 | — | — | — | |
| IDEAL IDEAL : EUROPA 228 | — | — | — | |
| IDEAL IDEAL : EUROPA 232 | — | — | — | |
| IDEAL IDEAL : MINI C24 | — | — | — | |
| IDEAL IDEAL : MINI C28 | — | — | — | |
| IDEAL IDEAL : MINI C32 | — | — | — | |
| IDEAL IDEAL : MINI HE C24 | — | — | — |
Showing 10 of 21 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — EUROPA 224 (GC 47-348-26), EUROPA 228 (GC 47-348-27), EUROPA 232 (GC 47-348-28)
manualmanualIDEAL appliance manual — MINI C24 (GC 47-348-18), MINI C28 (GC 47-348-19), MINI C32 (GC 47-348-25)
manualmanualIDEAL appliance manual — MINI HE C24 (GC 47-348-38), MINI HE C28 (GC 47-348-39), MINI S24 (GC 41-392-98), MINI S28 (GC 41-392-99)
manualNo technical questions yet for this part.
