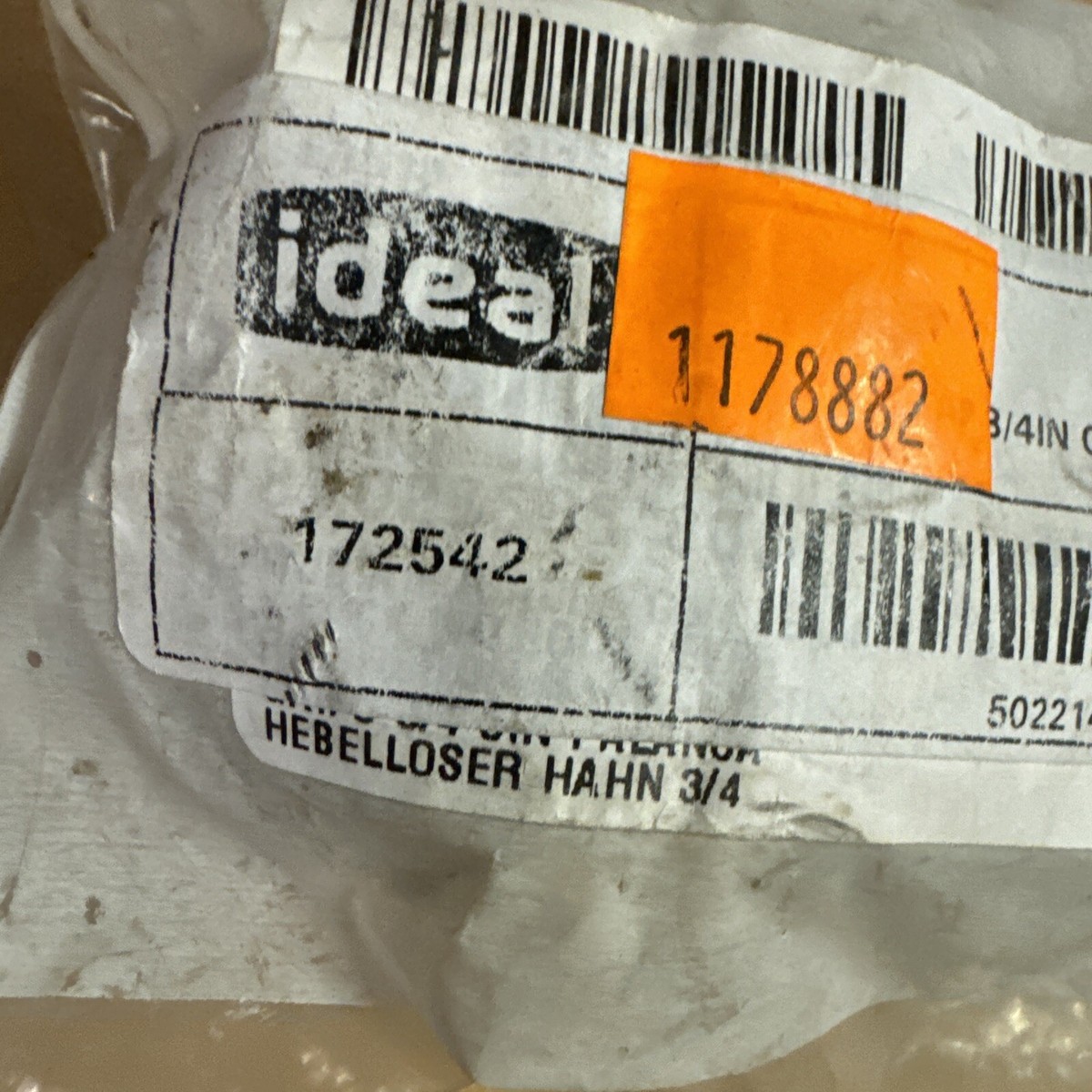

Ideal Isolating Valve 3/4 Inch CH 172542
Ideal 172542 3/4 inch CH isolating valve for Europa and Mini C32 boiler models, used to isolate the central heating circuit for servicing.
At a glance
- Part type: Isolating valve
- Also known as 1178882
£43.82
£36.52 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 172542 is a 3/4 inch central heating isolating valve supplied as a spare for Ideal domestic boilers. It sits on the heating circuit pipework and allows the water flow to be shut off at that point, so the appliance or a section of the system can be drained and worked on without emptying the whole installation. It is a serviceable component rather than a gas-carrying part.
Signs this part needs replacing
- Water weeping or a visible drip from the valve body or spindle
- The valve will not turn, or turns without shutting off the flow
- Scale or corrosion around the connection, with staining on nearby pipework
- Difficulty isolating the heating circuit during a service or drain-down
- A damp smell or minor water loss traced to the valve area
Before you order
- Confirm the GC number on the appliance data badge matches the numbers listed in the compatibility table
- Check the valve size and thread against the pipework on your model before fitting
- Have a suitable sealing washer or jointing material to hand, as connections disturbed during replacement may need resealing
Mechanical
| Part type | Isolating valve |
|---|
Compliance
| Manufacturer part number (MPN) | 172542 |
|---|---|
| GC number | E83-136 |
| Barcode / EAN | 5022141725425 |
| Commodity code | 8481 80 99 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 1178882 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL EUROPA 224 | 47-348-26 | 47-348-26 | — | — |
| IDEAL EUROPA 228 | 47-348-27 | 47-348-27 | — | — |
| IDEAL EUROPA 232 | 47-348-28 | 47-348-28 | — | — |
| IDEAL IDEAL : EUROPA 224 | — | — | — | |
| IDEAL IDEAL : EUROPA 228 | — | — | — | |
| IDEAL IDEAL : EUROPA 232 | — | — | — | |
| IDEAL IDEAL : MINI C24 | — | — | — | |
| IDEAL IDEAL : MINI C28 | — | — | — | |
| IDEAL IDEAL : MINI C32 | — | — | — | |
| IDEAL IDEAL : MINI HE C24 | — | — | — |
Showing 10 of 22 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — EUROPA 224 (GC 47-348-26), EUROPA 228 (GC 47-348-27), EUROPA 232 (GC 47-348-28)
manualmanualIDEAL appliance manual — MINI C24 (GC 47-348-18), MINI C28 (GC 47-348-19), MINI C32 (GC 47-348-25)
manualmanualIDEAL appliance manual — MINI HE C24 (GC 47-348-38), MINI HE C28 (GC 47-348-39), MINI S24 (GC 41-392-98), MINI S28 (GC 41-392-99)
manualmanualIDEAL appliance manual — MINI HE C32 (GC 47-348-41)
manualNo technical questions yet for this part.
