Ideal

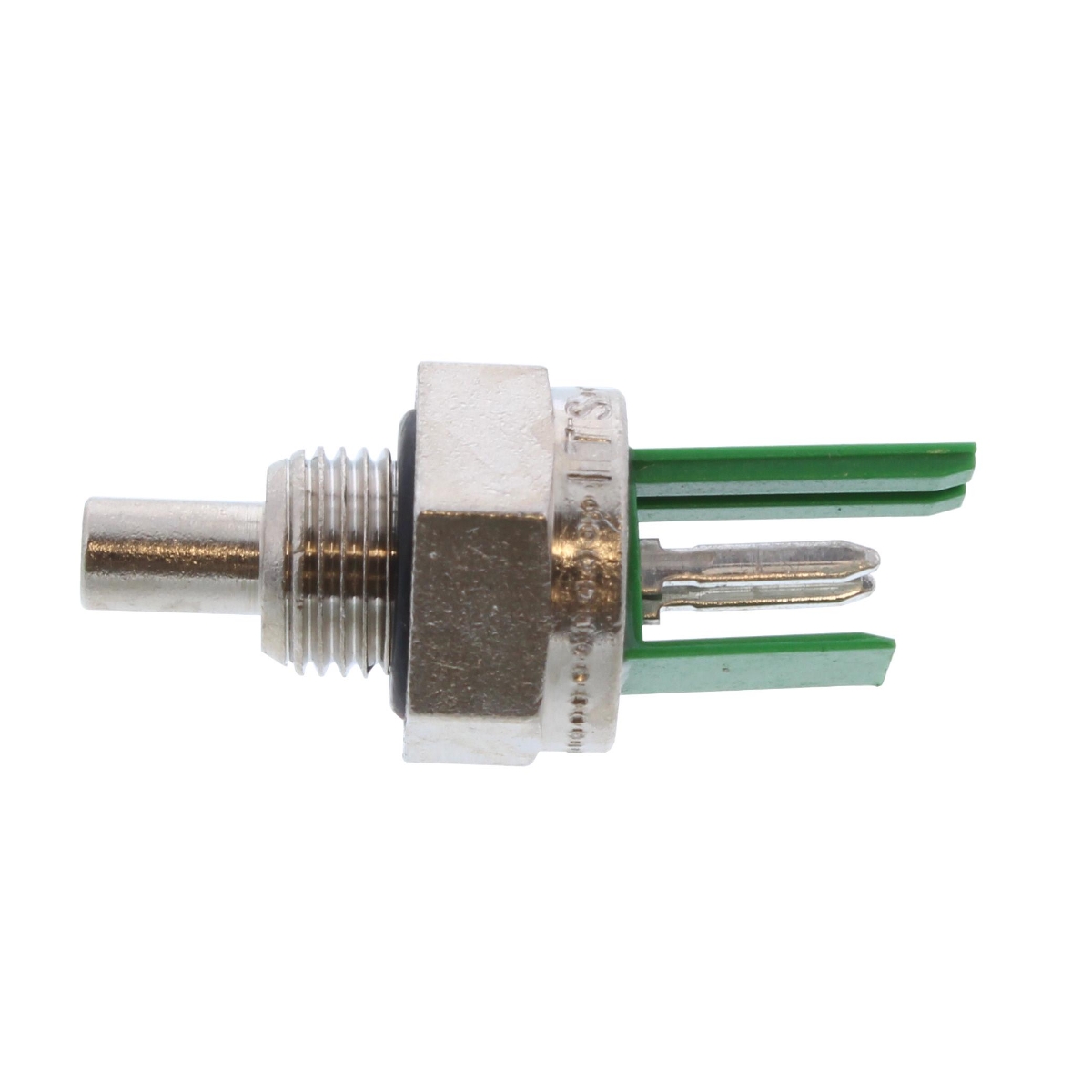

Ideal Thermistor Sensor BI1001 117 172496
Ideal thermistor sensor 172496 for Mini and Europa boilers, raising circuit resistance as temperature drops. Fits 22 Ideal models.
At a glance
- Part type: Thermistor sensor
- Also known as SENSOR-BI1001-117, 1178842, N0247-C
£23.99
£19.99 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal thermistor sensor 172496 is a temperature-sensing component used in Ideal Mini and Europa boilers. It works by increasing circuit resistance as temperature falls, giving the printed control board (PCB) a resistance reading it uses to decide whether heat output should rise or drop. The sensor therefore sits at the centre of the boiler's temperature regulation loop.
Signs this part needs replacing
- Boiler temperature swings between too hot and too cool instead of holding steady
- Domestic hot water runs hot then cold, or heating output is erratic
- Boiler locks out or shuts down shortly after firing
- Fault codes relating to temperature sensing or flow/return temperature appear on the display
- Resistance readings from the sensor fall outside the expected range for the measured temperature
Before you order
- Check the GC number on the appliance data badge against the GC numbers listed in the compatibility table before ordering
- Confirm the alternative numbers 1178842 and N0247-C match the sensor currently fitted
- Inspect the sensor seal or O-ring at the same time and replace it if it is hardened or damaged
Mechanical
| Part type | Thermostats, Thermistors & Sensors |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 172496 |
|---|---|
| GC number | 164-026 |
| Barcode / EAN | 5022141724961 |
| Commodity code | 8533 40 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | SENSOR-BI1001-117, 1178842, N0247-C |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL EUROPA 224 | 47-348-26 | 47-348-26 | — | — |
| IDEAL EUROPA 228 | 47-348-27 | 47-348-27 | — | — |
| IDEAL EUROPA 232 | 47-348-28 | 47-348-28 | — | — |
| IDEAL IDEAL : EUROPA 224 | — | — | — | |
| IDEAL IDEAL : EUROPA 228 | — | — | — | |
| IDEAL IDEAL : EUROPA 232 | — | — | — | |
| IDEAL IDEAL : MINI C24 | — | — | — | |
| IDEAL IDEAL : MINI C28 | — | — | — | |
| IDEAL IDEAL : MINI C32 | — | — | — | |
| IDEAL IDEAL : MINI HE C24 | — | — | — |
Showing 10 of 22 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — EUROPA 224 (GC 47-348-26), EUROPA 228 (GC 47-348-27), EUROPA 232 (GC 47-348-28)
manualmanualIDEAL appliance manual — MINI C24 (GC 47-348-18), MINI C28 (GC 47-348-19), MINI C32 (GC 47-348-25)
manualmanualIDEAL appliance manual — MINI HE C24 (GC 47-348-38), MINI HE C28 (GC 47-348-39), MINI S24 (GC 41-392-98), MINI S28 (GC 41-392-99)
manualmanualIDEAL appliance manual — MINI HE C32 (GC 47-348-41)
manualNo technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
