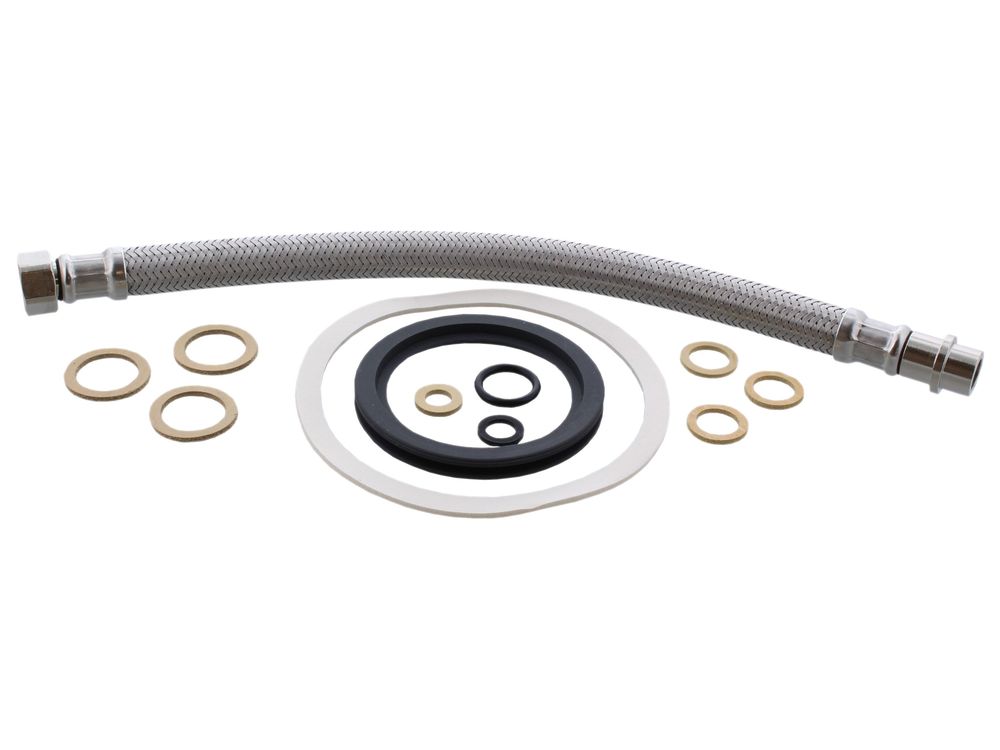

Ideal Expansion Vessel Pipe Kit Isar Icos System IDEAL172492
Expansion vessel pipe kit for Ideal Isar and Icos system boilers, forming part of the internal pipework between vessel and hydraulic circuit.
At a glance
- Part type: Pipes & Hoses
- Also known as 7625880473015, IDEAL172492, 1178838
£45.59
£37.99 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 172492 Expansion Vessel Pipe Kit is an internal pipework assembly for Ideal Isar and Icos system boilers. It carries water between the expansion vessel and the boiler's hydraulic circuit, keeping the connection correctly routed inside the casing. The kit is supplied under the Ideal Spares brand and is listed under the Pipes & Hoses spare part type.
Signs this part needs replacing
- Water weeping, dripping or white staining around the expansion vessel connection
- System pressure dropping on the boiler gauge and returning only briefly after topping up
- Corrosion, pitting or green scale on the pipe surface at the union joints
- Kettling, knocking or gurgling noises coming from the vessel area
- Boiler locking out on a low-pressure fault after the system has been refilled
Before you order
- Read the model and serial number from the appliance data badge; Isar and Icos variants use different internal layouts, so match the part to the exact boiler.
- Compare the number stamped or printed on the old pipe with 172492 before ordering.
- Inspect the sealing washers and O-rings at the vessel connection and replace any that have hardened, flattened or perished.
- This is not a gas-carrying component, but any work inside the boiler casing should be carried out by a competent person.
Mechanical
| Part type | Pipes & Hoses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | IDEAL172492 |
|---|---|
| GC number | E83-993 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 7625880473015, IDEAL172492, 1178838 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ESPRIT 2 - 24 | 47-348-71 | 47-348-71 | — | — |
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL EVO HE C22/24 | 47-348-32 | 47-348-32 | — | — |
| IDEAL EVO HE C22/30 | 47-348-33 | 47-348-33 | — | — |
| IDEAL EVO HE C22/35 | 47-348-34 | 47-348-34 | — | — |
| IDEAL ICOS SYSTEM HE15 | 41-421-99 | 41-421-99 | — | — |
| IDEAL ICOS SYSTEM HE24 | 41-397-82 | 41-397-82 | — | — |
| IDEAL ICOS SYSTEM M3080 | 41-391-52 | 41-391-52 | — | — |
| IDEAL IDEAL : ISAR + PROGRAMMER HE24 | — | — | — |
Showing 10 of 20 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — ESPRIT 2 - 24 (GC 47-348-71), ESPRIT 2 - 30 (GC 47-348-72), ESPRIT 2 - 35 (GC 47-348-73)
manualmanualIDEAL appliance manual — EVO HE C22/24 (GC 47-348-32), EVO HE C22/30 (GC 47-348-33), EVO HE C22/35 (GC 47-348-34)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE15 (GC 41-421-99)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE24 (GC 41-397-82)
manualmanualIDEAL appliance manual — ICOS SYSTEM M3080 (GC 41-391-52)
manualmanualIDEAL appliance manual — ISAR + PROGRAMMER HE24 (GC 47-348-43), ISAR + PROGRAMMER HE30 (GC 47-348-44), ISAR + PROGRAMMER HE35 (GC 47-348-45)
manualmanualIDEAL appliance manual — ISAR HE24 (GC 47-348-31), ISAR HE30 (GC 47-348-30), ISAR HE35 (GC 47-348-29)
manualmanualIDEAL appliance manual — ISAR M30100 (GC 47-348-15)
manualNo technical questions yet for this part.
