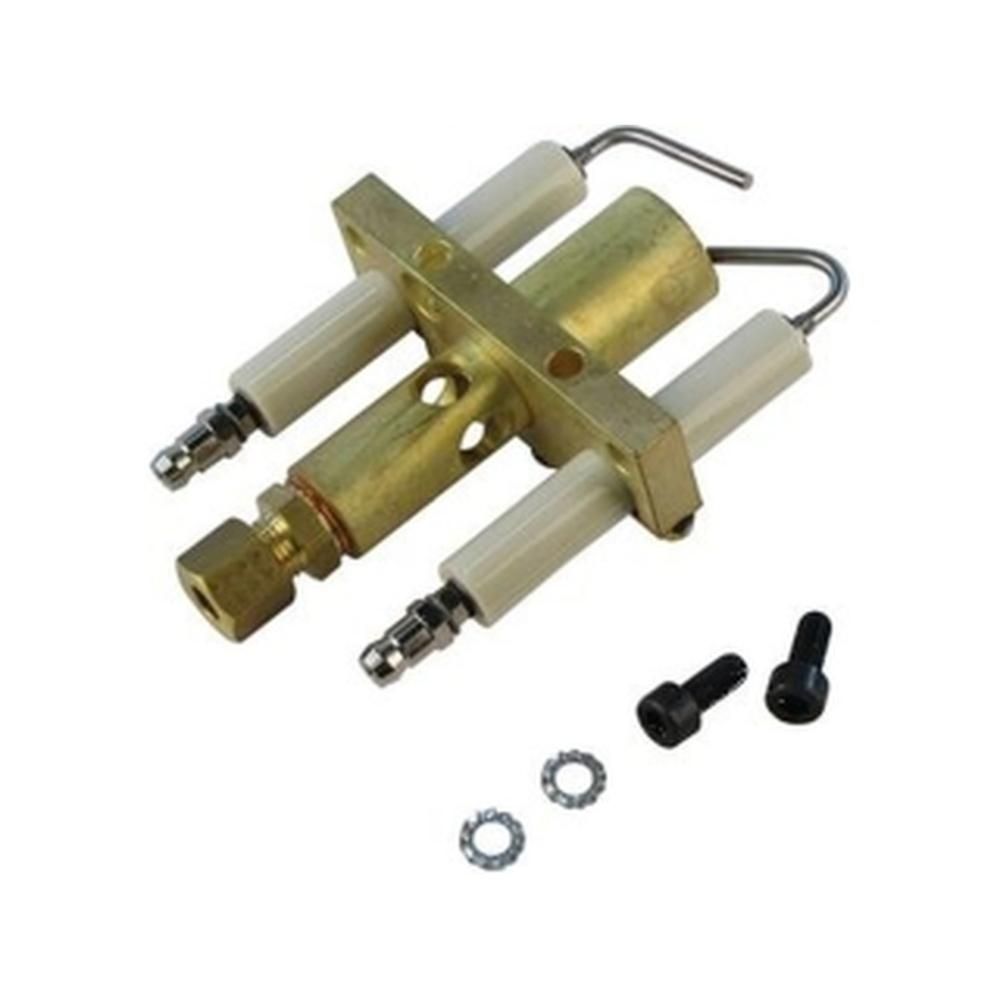

Ideal Pilot Bracket Assembly 172277
Ideal 172277 complete pilot bracket assembly for Ideal Commercial Concord ES series gas appliances; replaces 8358-8601 and 1178660.
At a glance
- Part type: Pilot burner bracket assembly
- Also known as PILOT-BRACKET-CPLT-8358-8601, 1178660
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£1,308.61
£1,090.51 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 172277 is a complete pilot bracket assembly supplied by Ideal for use in its commercial gas appliances. It carries and locates the pilot burner so the pilot flame sits in the correct position relative to the main burner, allowing ignition to take place reliably during each demand for heat. The bracket is listed under the pilot burner spare part group and is used across the Ideal Commercial Concord ES range.
Signs this part needs replacing
- The pilot flame fails to establish or will not stay lit once the ignition sequence ends.
- Repeated lockouts on start-up, with the appliance cycling through ignition without firing the main burner.
- A weak, yellow or lifting pilot flame that no longer plays on the flame sensing point correctly.
- Visible heat damage, corrosion or distortion on the bracket where it holds the pilot burner.
- Sooting or discolouration around the pilot area, suggesting the burner is no longer sitting in its correct position.
Before you order
- Confirm the appliance model and, where shown on the data badge, the GC number against the compatibility list before ordering.
- Check the numbers on the existing bracket: 8358-8601 and 1178660 both identify this same assembly.
- Inspect the pilot injector, electrode and any seals in the pilot assembly while access is available, as these are commonly disturbed during replacement.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Pilot Burners |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 172277 |
|---|---|
| Barcode / EAN | 5022141722776 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | PILOT-BRACKET-CPLT-8358-8601, 8358-8601, 1178660 |
| Previous numbers | 8358-8601 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD ES140/H CPT P/A | — | — | — | |
| IDEAL COMMERCIAL CONCORD ES140/H CPT U/A | — | — | — | |
| IDEAL COMMERCIAL CONCORD ES160/H CPT P/A | — | — | — | |
| IDEAL COMMERCIAL CONCORD ES160/H CPT U/A | — | — | — | |
| IDEAL COMMERCIAL CONCORD ES180/H CPT P/A | — | — | — | |
| IDEAL COMMERCIAL CONCORD ES180/H CPT U/A | — | — | — | |
| IDEAL COMMERCIAL CONCORD ES200/H CPT P/A | — | — | — | |
| IDEAL COMMERCIAL CONCORD ES200/H CPT U/A | — | — | — | |
| IDEAL COMMERCIAL CONCORD ES220/H CPT P/A | — | — | — | |
| IDEAL COMMERCIAL CONCORD ES220/H CPT U/A | — | — | — |
Showing 10 of 28 compatible appliances.
