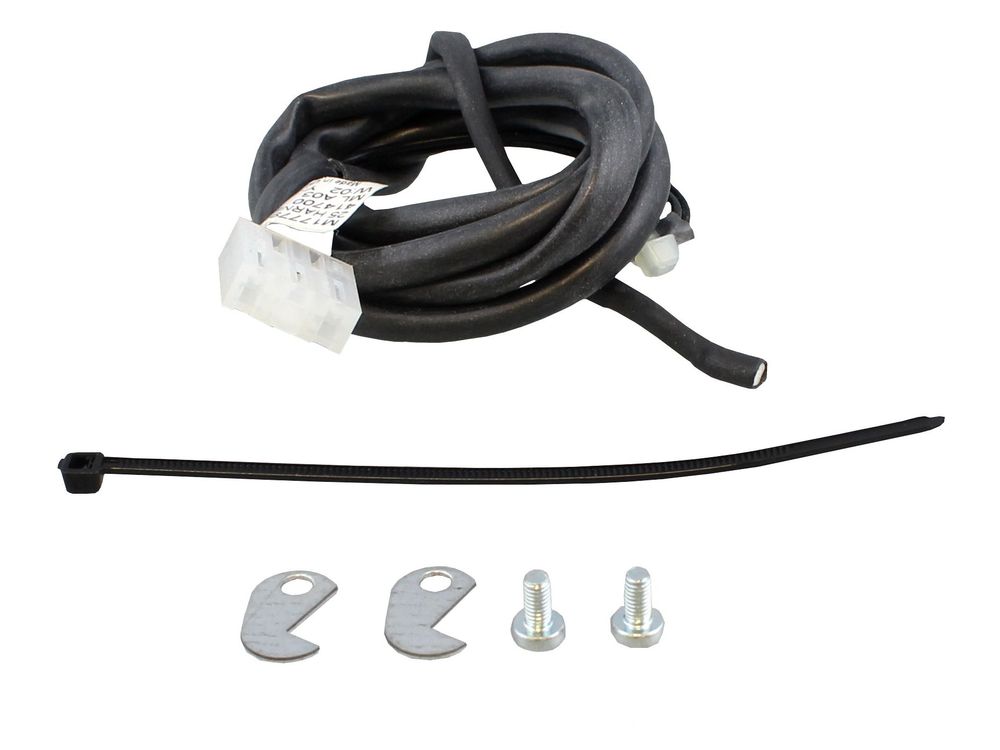

Ideal Thermostat and Harness Kit CLA FF 171879
Ideal thermostat and harness kit (171879) for Classic FF series boilers, letting the user set and control central heating temperature.
At a glance
- Part type: Sensors
- Also known as 1178285
Showing prices
£94.72
£78.93 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal thermostat and harness kit is a control assembly supplied for boilers in the Ideal Classic FF range. The thermostat is the device that lets the user set and change the temperature of the central heating system, working with the boiler's control circuit to bring the burner on and off as demand changes. The kit pairs the thermostat with its wiring harness so the control can be connected to the appliance as a complete unit.
Signs this part needs replacing
- The boiler does not respond when the thermostat is turned up or down
- Room temperature drifts away from the setting, with the heating running constantly or not at all
- The appliance fails to fire on a call for heat from the control
- Temperature control feels loose, stiff or fails to click through its range
- Visible damage, scorching or a poor connection at the harness plug or terminals
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct variant
- Confirm the boiler model and serial number, as several Classic FF variants use different control assemblies
- Inspect the existing harness and plug for damage, as the kit is supplied as a matched thermostat and harness assembly
- Work on the boiler casing and controls should be carried out by a competent person; isolate the electrical supply before fitting
Mechanical
| Part type | Thermostats, Thermistors & Sensors |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 171879 |
|---|---|
| GC number | 308-357 |
| Barcode / EAN | 5022141718793 |
| Commodity code | 9032 10 00 00 |
| GPC classification | Thermostats |
| Alternative numbers | 1178285 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC FF3100 | 41-392-01 | 41-392-01 | — | — |
| IDEAL CLASSIC FF330 | 41-391-54 | 41-391-54 | — | — |
| IDEAL CLASSIC FF330 SLIMLINE | 41-392-02 | 41-392-02 | — | — |
| IDEAL CLASSIC FF340 | 41-391-95 | 41-391-95 | — | — |
| IDEAL CLASSIC FF340 SLIMLINE | 41-392-03 | 41-392-03 | — | — |
| IDEAL CLASSIC FF340LF | 41-392-90 | 41-392-90 | — | — |
| IDEAL CLASSIC FF350 | 41-391-96 | 41-391-96 | — | — |
| IDEAL CLASSIC FF350 P | 41-392-06 | 41-392-06 | — | — |
| IDEAL CLASSIC FF350 SLIMLINE | 41-392-04 | 41-392-04 | — | — |
| IDEAL CLASSIC FF350LF | 41-392-91 | 41-392-91 | — | — |
Showing 10 of 110 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL appliance manual — CLASSIC FF3100 (GC 41-392-01), CLASSIC FF330 (GC 41-391-54), CLASSIC FF340 (GC 41-391-95), CLASSIC FF350 (GC 41-391-96), CLASSIC FF360 (GC 41-391-97), CLASSIC FF370 (GC 41-391-98), CLASSIC FF380 (GC 41-391-99)
manualmanualIDEAL appliance manual — CLASSIC FF330 SLIMLINE (GC 41-392-02), CLASSIC FF340 SLIMLINE (GC 41-392-03), CLASSIC FF350 SLIMLINE (GC 41-392-04), CLASSIC FF360 SLIMLINE (GC 41-392-05)
manualmanualIDEAL appliance manual — CLASSIC FF340LF (GC 41-392-90), CLASSIC FF350LF (GC 41-392-91), CLASSIC FF360LF (GC 41-392-92)
manualmanualIDEAL appliance manual — CLASSIC FF350 P (GC 41-392-06), CLASSIC FF360 P (GC 41-392-07), CLASSIC FF380 P (GC 41-392-08)
manualmanualIDEAL appliance manual — CLASSIC HE 12 (GC 41-415-59), CLASSIC HE 15 (GC 41-421-45), CLASSIC HE 15P (GC 41-421-97), CLASSIC HE 18 (GC 41-421-46), CLASSIC HE 18P (GC 41-421-98), CLASSIC HE 9 (GC 41-415-58)
manualmanualIDEAL appliance manual — CLASSIC SE 12 FF (GC 41-395-31), CLASSIC SE 12 FF (SILVER) (GC 41-397-64), CLASSIC SE 15 FF (GC 41-395-32), CLASSIC SE 15 FF (SILVER) (GC 41-397-65), CLASSIC SE 18 FF (GC 41-395-33), CLASSIC SE 18 FF (SILVER) (GC 41-397-68), CLASSIC SE 18 FF SLIMLINE (GC 41-395-43), CLASSIC SE 21 FF (GC 41-395-34), CLASSIC SE 21 FF (SILVER) (GC 41-397-69), CLASSIC SE 24 FF (GC 41-395-35), CLASSIC SE 24 FF (SILVER) (GC 41-397-70), CLASSIC SE 30 FF (GC 41-395-36), CLASSIC SE 30 FF (SILVER) (GC 41-397-71), CLASSIC SE 9 FF (GC 41-395-30), CLASSIC SE 9 FF (SILVER) (GC 41-397-63)
manualmanualIDEAL appliance manual — CLASSIC SE 12 FF SLIMLINE (GC 41-395-41), CLASSIC SE 15 FF SLIMLINE (GC 41-395-42), CLASSIC SE 9 FF SLIMLINE (GC 41-395-40)
manualmanualIDEAL appliance manual — CLASSIC SE 15P FF (GC 41-397-72), CLASSIC SE 18P FF (GC 41-397-73), CLASSIC SE 24P FF (GC 41-397-74)
manualmanualIDEAL appliance manual — OPTIA FF100 (GC 41-392-01), OPTIA FF30 (GC 41-391-54), OPTIA FF40 (GC 41-391-95), OPTIA FF50 (GC 41-391-96), OPTIA FF60 (GC 41-391-97), OPTIA FF70 (GC 41-391-98), OPTIA FF80 (GC 41-391-99)
manualmanualIDEAL appliance manual — OPTIA HE 12 (GC 41-421-71), OPTIA HE 15 (GC 41-421-72), OPTIA HE 18 (GC 41-421-96), OPTIA HE 9 (GC 41-421-70)
manualNo technical questions yet for this part.
