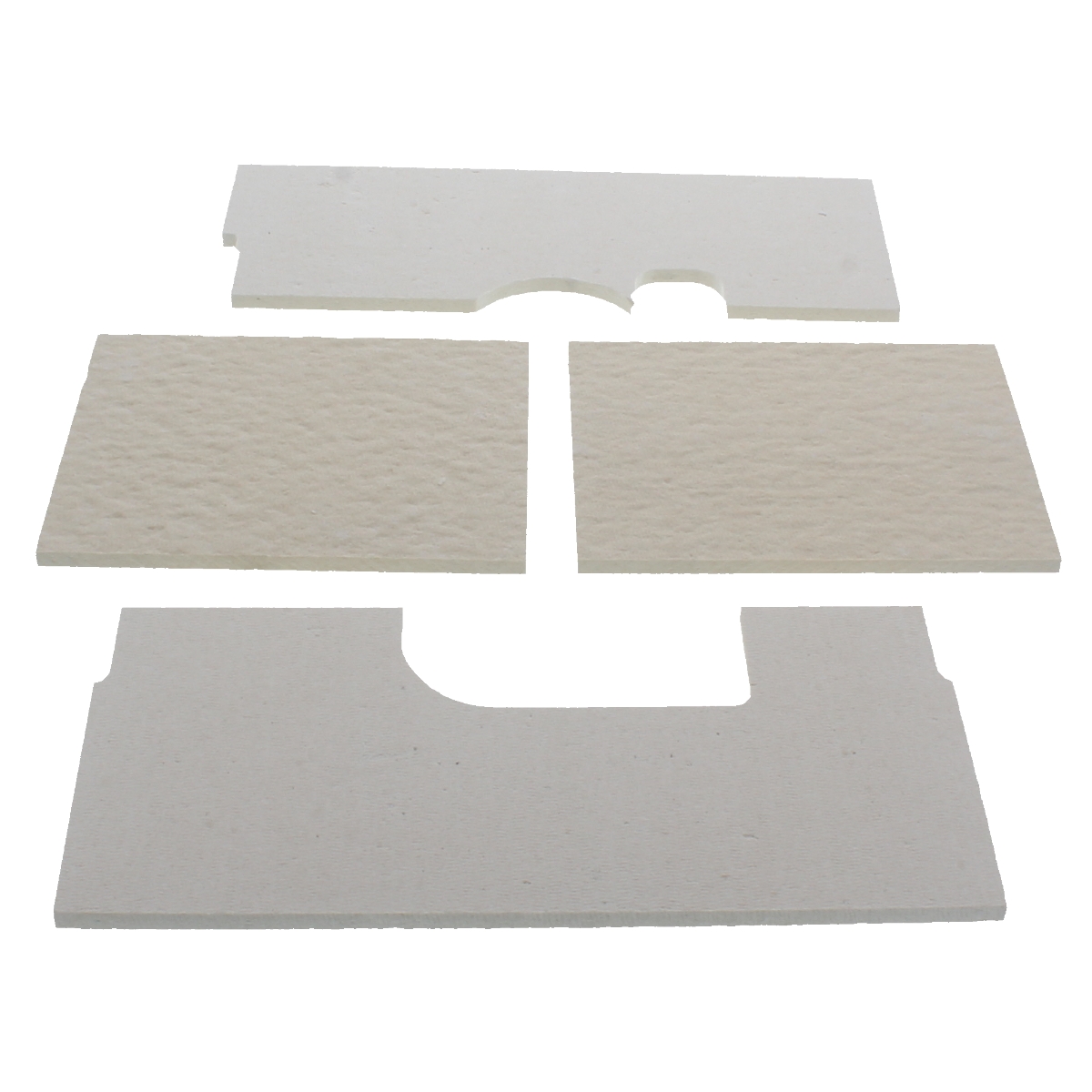

Ideal Combustion Chamber Insulation Kit CLA FF70-80-10 171410
Ideal combustion chamber insulation kit, part 171410, for Classic FF and Classic Combi gas boilers; replaces the burner section insulation boards.
At a glance
- Part type: combustion chamber insulation kit
- Also known as 1178166
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£27.22
£22.68 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 171410 is a combustion chamber insulation kit for Ideal Classic FF and Classic Combi gas boilers. It forms the heat-resistant lining around the burner section, where gas is fed through the gas valve and ignited at the burner. The insulation boards protect the surrounding casing and combustion chamber metalwork from sustained radiant heat and help hold steady combustion conditions.
Signs this part needs replacing
- Insulation boards visibly cracked, crumbling or breaking away from the chamber walls
- Discolouration or scorching on the boards or the metalwork behind them
- Soot or debris collecting around the burner area where the lining has degraded
- Combustion readings that will not settle within tolerance after servicing
- Heat damage or distortion to nearby components in the burner section
Before you order
- Check the appliance GC number and model against the compatibility list, as this kit covers a wide spread of Classic FF and Classic Combi variants.
- Confirm the existing insulation boards are the correct pattern for your chamber before removing them.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Combustion Chamber Insulation Kit |
|---|
Compliance
| Manufacturer part number (MPN) | 171410 |
|---|---|
| GC number | 308-520 |
| Barcode / EAN | 5022141714108 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1178166 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC COMBI FF280 | 47-415-08 | 47-415-08 | — | — |
| IDEAL CLASSIC FF 2 100 | 41-349-71 | 41-349-71 | — | — |
| IDEAL CLASSIC FF 275P | 41-387-09 | 41-387-09 | — | — |
| IDEAL CLASSIC FF LX 270 | 41-387-28 | 41-387-28 | — | — |
| IDEAL CLASSIC FF LX 275P | 41-387-32 | 41-387-32 | — | — |
| IDEAL CLASSIC FF LX 280 | 41-387-29 | 41-387-29 | — | — |
| IDEAL CLASSIC FF280 | 41-387-06 | 41-387-06 | — | — |
| IDEAL CLASSIC FF3100 | 41-392-01 | 41-392-01 | — | — |
| IDEAL CLASSIC FF370 | 41-391-98 | 41-391-98 | — | — |
| IDEAL CLASSIC FF380 | 41-391-99 | 41-391-99 | — | — |
Showing 10 of 33 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — CLASSIC COMBI FF280 (GC 47-415-08)
manualmanualIDEAL appliance manual — CLASSIC FF 2 100 (GC 41-349-71), CLASSIC FF LX 270 (GC 41-387-28), CLASSIC FF LX 280 (GC 41-387-29)
manualmanualIDEAL appliance manual — CLASSIC FF 275P (GC 41-387-09), CLASSIC FF LX 275P (GC 41-387-32)
manualmanualIDEAL appliance manual — CLASSIC FF280 (GC 41-387-06), CLASSIC NF LX 270 (GC 41-387-28), CLASSIC NF LX 280 (GC 41-387-29), CLASSIC NF270 (GC 41-387-05), CLASSIC NF280 (GC 41-387-06)
manualmanualIDEAL appliance manual — CLASSIC FF3100 (GC 41-392-01), CLASSIC FF370 (GC 41-391-98), CLASSIC FF380 (GC 41-391-99)
manualmanualIDEAL appliance manual — CLASSIC FF380 P (GC 41-392-08)
manualmanualIDEAL appliance manual — CLASSIC LX RS260 (GC 41-387-36), CLASSIC RS260 (GC 41-387-13)
manualmanualIDEAL appliance manual — CLASSIC SE 21 FF (GC 41-395-34), CLASSIC SE 21 FF (SILVER) (GC 41-397-69), CLASSIC SE 24 FF (GC 41-395-35), CLASSIC SE 24 FF (SILVER) (GC 41-397-70), CLASSIC SE 30 FF (GC 41-395-36), CLASSIC SE 30 FF (SILVER) (GC 41-397-71)
manualmanualIDEAL appliance manual — CLASSIC SE 24P FF (GC 41-397-74)
manualmanualIDEAL appliance manual — HENRAD WH FF LX70 (GC 41-349-98), HENRAD WH FF LX80 (GC 41-349-99), HENRAD WH FF100 (GC 41-349-93)
manualmanualIDEAL appliance manual — HENRAD WH FF70 (GC 41-349-91), HENRAD WH FF80 (GC 41-349-92)
manualmanualIDEAL appliance manual — OPTIA FF100 (GC 41-392-01), OPTIA FF70 (GC 41-391-98), OPTIA FF80 (GC 41-391-99)
manualNo technical questions yet for this part.
