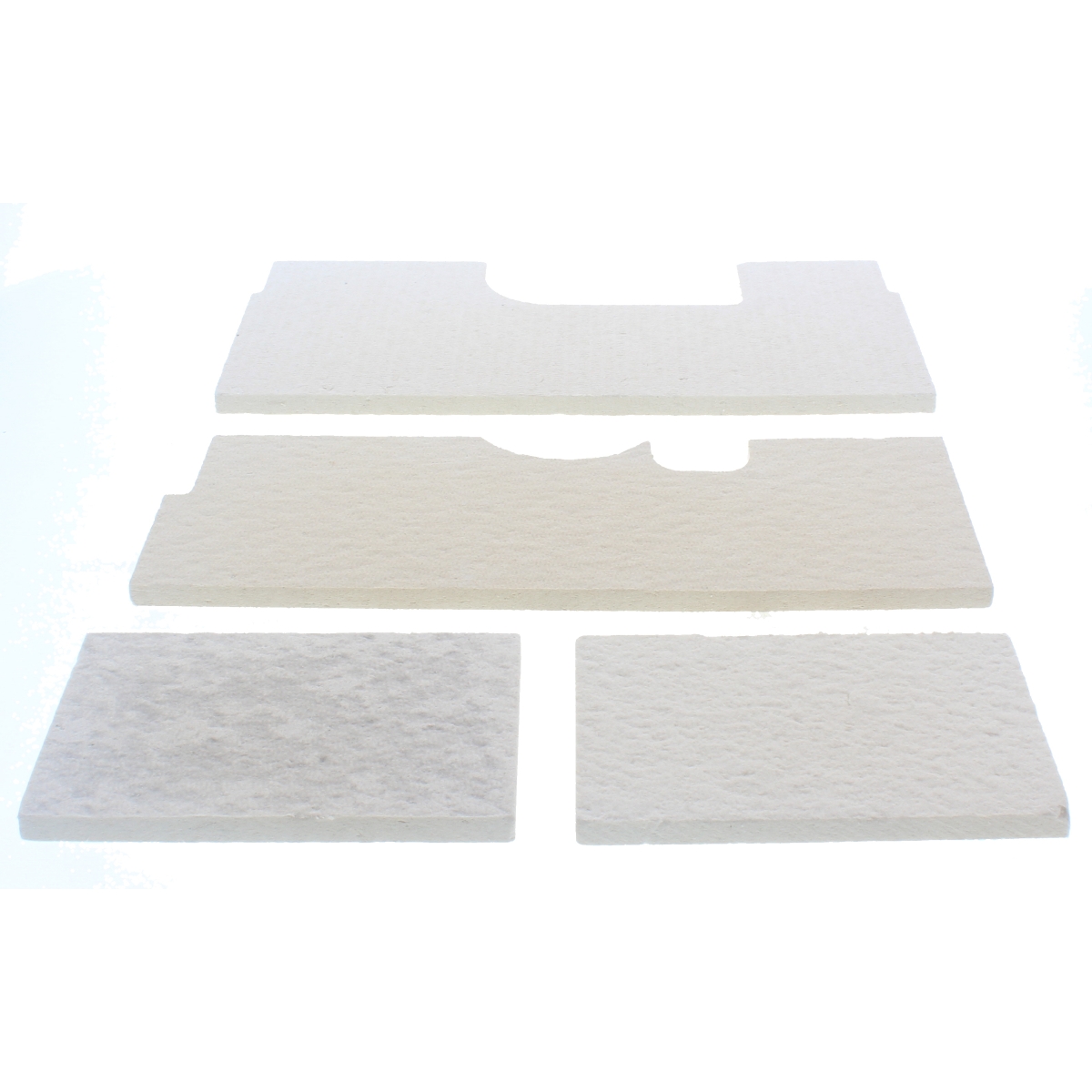

Ideal Combustion Chamber Insulation Kit CLA FF30-40 171404
Ideal 171404 combustion chamber insulation kit for Classic FF30-40 and other Classic models, sitting within the burner section of the appliance.
At a glance
- Part type: Combustion chamber insulation kit
- Also known as 1178160
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£27.22
£22.68 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 171404 is a combustion chamber insulation kit manufactured by Ideal Heating for the Classic range of gas boilers. It sits within the burner section of the appliance, where the insulation shields the surrounding casing and components from the heat produced at the burner. The burner is the primary heating method on a combustible appliance: gas is delivered through the gas valve and ignited once it reaches the burner, and the insulation around that area manages the resulting temperatures.
Signs this part needs replacing
- Visible cracking, crumbling or flaking of the insulation material
- Insulation panels that have become brittle or detached from their seating
- Discolouration or scorching around the burner area
- Debris from the insulation falling into the combustion chamber
- Disturbed or damaged insulation found during a burner service or inspection
Before you order
- Check the Gas Council number and model plate on the appliance to confirm the correct variant before ordering.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
- Confirm whether any gasket or seal is disturbed during removal, as these are often replaced at the same time.
- Cross-check the alternative part number 1178160 against any documentation supplied with the boiler.
Mechanical
| Part type | COMB CHAMB INSULATION KIT CLA FF30-40 |
|---|
Compliance
| Manufacturer part number (MPN) | 171404 |
|---|---|
| GC number | 308-518 |
| Barcode / EAN | 5022141714047 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1178160 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC FF LX 230 | 41-387-24 | 41-387-24 | — | — |
| IDEAL CLASSIC FF LX 240 | 41-387-25 | 41-387-25 | — | — |
| IDEAL CLASSIC FF230 | 41-387-02 | 41-387-02 | — | — |
| IDEAL CLASSIC FF240 | 41-387-03 | 41-387-03 | — | — |
| IDEAL CLASSIC FF330 | 41-391-54 | 41-391-54 | — | — |
| IDEAL CLASSIC FF330 SLIMLINE | 41-392-02 | 41-392-02 | — | — |
| IDEAL CLASSIC FF340 | 41-391-95 | 41-391-95 | — | — |
| IDEAL CLASSIC FF340 SLIMLINE | 41-392-03 | 41-392-03 | — | — |
| IDEAL CLASSIC FF340LF | 41-392-90 | 41-392-90 | — | — |
| IDEAL CLASSIC HE 12 | 41-415-59 | 41-415-59 | — | — |
Showing 10 of 34 compatible appliances.
