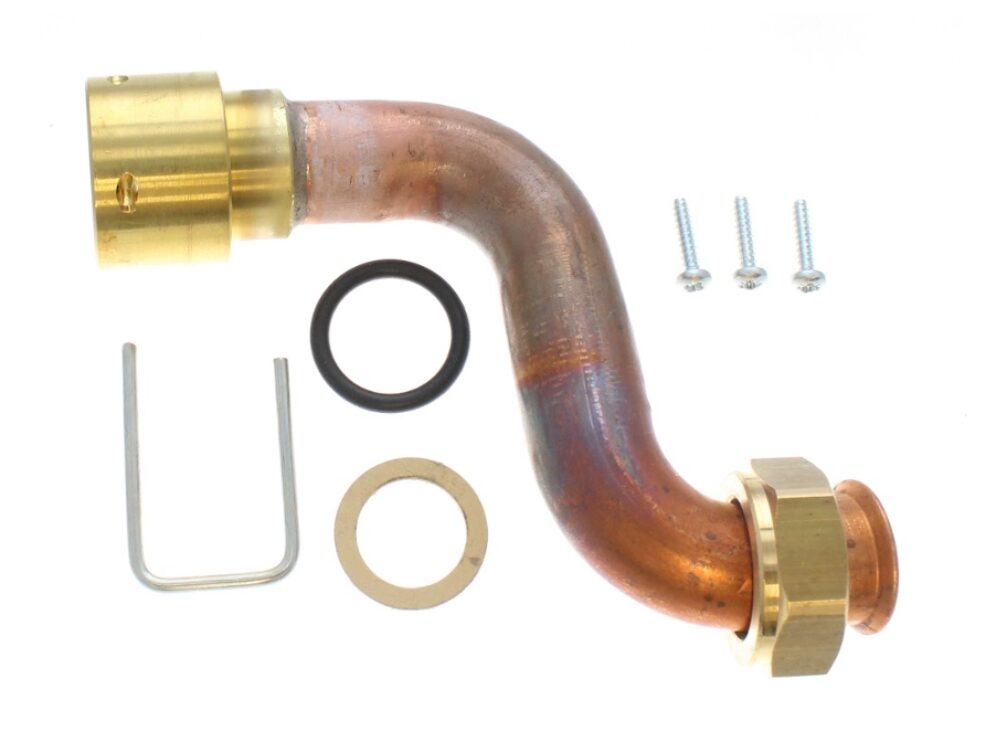

Ideal Flow Stub Pipe Kit Icos System 171081
Ideal 171081 CH flow stub pipe kit for Icos System HE15, HE24 and M3080 boilers, carrying central heating flow from the appliance.
At a glance
- Part type: Hoses & Pipes
- Appliance family: Icos System
- Also known as 1178034
£108.47
£90.39 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 171081 is a central heating flow stub pipe kit supplied by Ideal for the Icos System range of domestic and commercial boilers. It forms the short pipe stub that takes the heated central heating flow away from the appliance and into the system pipework, so it sits on the primary water circuit rather than the gas side of the boiler. The kit is listed under the Hoses & Pipes part group and is used where the original stub has corroded, scaled or started to weep at its joints.
Signs this part needs replacing
- Water weeping or a visible drip at the flow stub connection when the boiler is running
- Staining, crusting or green/white corrosion around the pipe stub and its joints
- System pressure that drops steadily and needs frequent topping up
- Scale or sludge build-up restricting flow through the stub, giving poor heating performance
- Pipework that has been disturbed or damaged during servicing and no longer seals correctly
Before you order
- Confirm the boiler model and GC number against the compatibility list, as the Icos System variants use different arrangements
- Check the part number on the existing component or in the boiler manual before ordering
- Have new sealing washers or jointing seals to hand if the existing ones are disturbed during removal
Mechanical
| Part type | Hoses & Pipes |
|---|---|
| Appliance family | Icos System |
Compliance
| Manufacturer part number (MPN) | 171081 |
|---|---|
| GC number | E69-337 |
| Barcode / EAN | 5022141710810 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Pipes/Tubing - Water, Gas, Central heating |
| Alternative numbers | 1178034 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ICOS SYSTEM HE15 | 41-421-99 | 41-421-99 | — | — |
| IDEAL ICOS SYSTEM HE24 | 41-397-82 | 41-397-82 | — | — |
| IDEAL ICOS SYSTEM M3080 | 41-391-52 | 41-391-52 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
