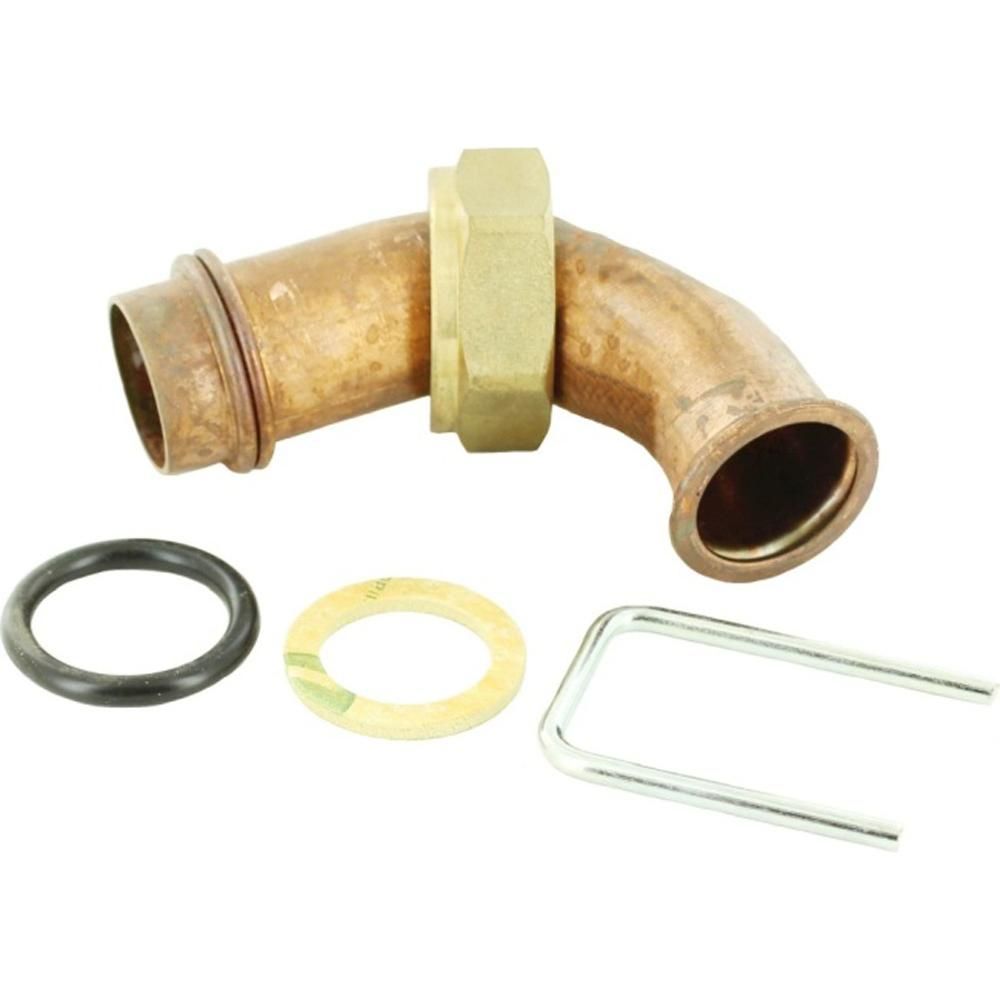

Ideal Pipe Kit Isar 171050
Ideal DHW inlet/outlet pipe kit, part 171050, for Esprit 2 and Evo HE combi boilers; routes domestic hot water through the appliance.
At a glance
- Part type: Pipes and hoses
- Also known as 1178027
£25.90
£21.58 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal DHW inlet/outlet pipe kit, part number 171050, is a set of internal pipework for Ideal domestic boilers. It carries domestic hot water to and from the heat exchanger and outlet connections, keeping the water route inside the casing correct and secure. The kit is listed under Ideal's pipes and hoses range and is used across the Esprit 2 and Evo HE combi families.
Signs this part needs replacing
- Water weeping or visible drips around the DHW inlet or outlet connections
- Damp staining or corrosion on the pipework or surrounding casing
- Scale build-up or a narrowed bore restricting hot water flow
- Cracks, splits or deformation at the pipe ends or bends
- Repeated loss of pressure traced to the internal water circuit
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the model
- Confirm the alternative number 1178027 matches the pipework currently fitted
- Inspect the connection seals and washers while the pipework is removed and replace them if they are worn
- Work on the appliance casing and internal water connections should be carried out by a competent engineer
Mechanical
| Part type | Pipes & Hoses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 171050 |
|---|---|
| GC number | E69-402 |
| Barcode / EAN | 5022141710506 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1178027 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ESPRIT 2 - 24 | 47-348-71 | 47-348-71 | — | — |
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL EVO HE C22/24 | 47-348-32 | 47-348-32 | — | — |
| IDEAL EVO HE C22/30 | 47-348-33 | 47-348-33 | — | — |
| IDEAL EVO HE C22/35 | 47-348-34 | 47-348-34 | — | — |
| IDEAL IDEAL : ISAR + PROGRAMMER HE24 | — | — | — | |
| IDEAL IDEAL : ISAR + PROGRAMMER HE30 | — | — | — | |
| IDEAL IDEAL : ISAR + PROGRAMMER HE35 | — | — | — | |
| IDEAL ISAR + PROGRAMMER HE24 | 47-348-43 | 47-348-43 | — | — |
Showing 10 of 17 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — ESPRIT 2 - 24 (GC 47-348-71), ESPRIT 2 - 30 (GC 47-348-72), ESPRIT 2 - 35 (GC 47-348-73)
manualmanualIDEAL appliance manual — EVO HE C22/24 (GC 47-348-32), EVO HE C22/30 (GC 47-348-33), EVO HE C22/35 (GC 47-348-34)
manualmanualIDEAL appliance manual — ISAR + PROGRAMMER HE24 (GC 47-348-43), ISAR + PROGRAMMER HE30 (GC 47-348-44), ISAR + PROGRAMMER HE35 (GC 47-348-45)
manualmanualIDEAL appliance manual — ISAR HE24 (GC 47-348-31), ISAR HE30 (GC 47-348-30), ISAR HE35 (GC 47-348-29)
manualmanualIDEAL appliance manual — ISAR M30100 (GC 47-348-15)
manualNo technical questions yet for this part.
