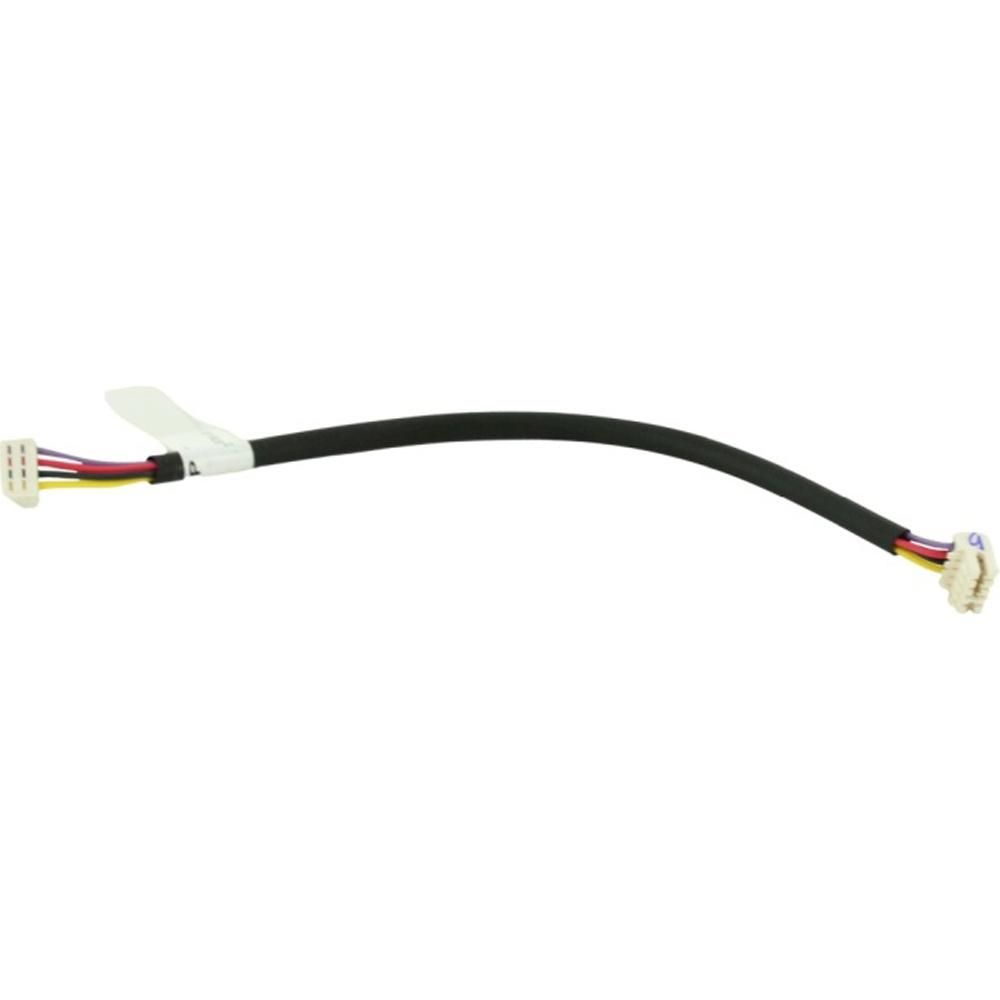

Ideal 171041 Printed Circuit Board User Controls Harness Kit
At a glance
- Part type: Cables, Leads & Wiring Harnesses
- Also known as IDEAL171041
£38.81
£32.34 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 171041 is a printed circuit board user controls harness kit manufactured by Ideal. It sits within the Isar and Icos system appliance family and forms the wiring link between the printed circuit board and the user control interface. Its job is to carry control signals and low-voltage supplies between the board and the controls, so that inputs from the user panel reach the PCB and the board's status outputs reach the display.
Signs this part needs replacing
- The user controls or display stop responding, or respond only intermittently
- Fault codes relating to communication between the PCB and the control panel appear
- The appliance runs but ignores changes made at the user controls
- Visible damage to the harness — chafed, brittle, scorched or broken conductors, or a loose or corroded plug
- Repeated faults that return after the board or control panel has been checked
Before you order
- Confirm the appliance model and GC number against the data badge before ordering
- Check that the existing harness connectors and pin layout match the part being replaced
- Isolate the electrical supply to the appliance before removing or refitting the harness
- Inspect the board and control panel connectors for heat damage or corrosion while the harness is removed
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 171041 |
|---|---|
| GC number | E69-344 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | IDEAL171041, 1178021, N3135 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ESPRIT 2 - 24 | 47-348-71 | 47-348-71 | — | — |
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL EVO HE C22/24 | 47-348-32 | 47-348-32 | — | — |
| IDEAL EVO HE C22/30 | 47-348-33 | 47-348-33 | — | — |
| IDEAL EVO HE C22/35 | 47-348-34 | 47-348-34 | — | — |
| IDEAL ICOS SYSTEM HE15 | 41-421-99 | 41-421-99 | — | — |
| IDEAL ICOS SYSTEM HE24 | 41-397-82 | 41-397-82 | — | — |
| IDEAL ICOS SYSTEM M3080 | 41-391-52 | 41-391-52 | — | — |
| IDEAL IDEAL : EVO HE C22/24 | — | — | — |
Showing 10 of 29 compatible appliances.
