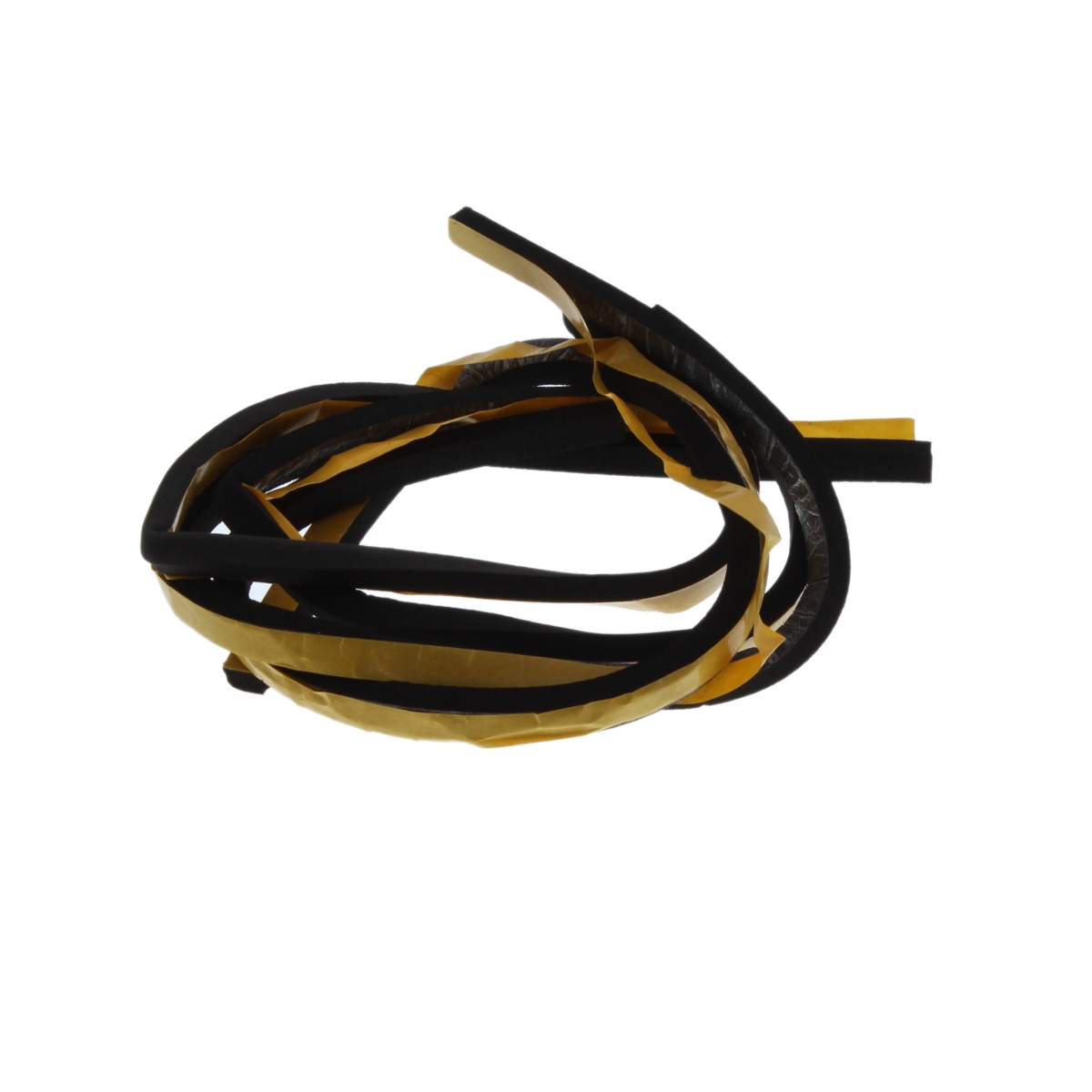

Ideal Seal Kit Case Sealing Panel 171014
Ideal 171014 case sealing panel seal kit for Elise, Evo, Icos, Isar, Esprit 2, Istor and Classic boiler heat exchangers; fits 35 models.
At a glance
- Part type: Gaskets, Seals & Washers
- Also known as 1178002
£24.18
£20.15 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 171014 seal kit is a case sealing panel seal set used on Ideal boiler heat exchangers. The seals sit at the casing and panel joints, where they stop water and flue gases escaping as they pass through the appliance. It is an Ideal Spares component covering the Elise, Evo, Icos, Isar, Esprit 2, Istor and Classic ranges.
Signs this part needs replacing
- Water weeping or staining around the heat exchanger casing or sealing panel
- Seal material visibly hardened, flattened, cracked or split
- Flue gas smell or drifting combustion readings near the casing joints
- Repeated pressure loss with no obvious leak elsewhere on the system
- Seal disturbed, pinched or deformed after the casing has been opened for servicing
Before you order
- Check the GC number on the appliance data badge against the compatibility list
- Confirm the exact model, and the serial range where it applies, before ordering
- Cross-reference the alternative number 1178002 when checking an older listing
- Confirm whether a full gasket and seal kit is needed for the job in hand
Mechanical
| Part type | Gaskets, Seals & Washers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 171014 |
|---|---|
| GC number | E68-376 |
| Barcode / EAN | 5022141710148 |
| Commodity code | 4016 93 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1178002 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC M 3050 | 41-391-50 | 41-391-50 | — | — |
| IDEAL CLASSIC M 5080 | 41-391-51 | 41-391-51 | — | — |
| IDEAL ELISE HE15 | 41-399-97 | 41-399-97 | — | — |
| IDEAL ELISE HE24 | 41-399-98 | 41-399-98 | — | — |
| IDEAL ESPRIT 2 - 24 | 47-348-71 | 47-348-71 | — | — |
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL EVO HE C22/24 | 47-348-32 | 47-348-32 | — | — |
| IDEAL EVO HE C22/30 | 47-348-33 | 47-348-33 | — | — |
| IDEAL EVO HE C22/35 | 47-348-34 | 47-348-34 | — | — |
Showing 10 of 35 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — CLASSIC M 3050 (GC 41-391-50), CLASSIC M 5080 (GC 41-391-51)
manualmanualIDEAL appliance manual — ELISE HE15 (GC 41-399-97), ELISE HE24 (GC 41-399-98)
manualmanualIDEAL appliance manual — ESPRIT 2 - 24 (GC 47-348-71), ESPRIT 2 - 30 (GC 47-348-72), ESPRIT 2 - 35 (GC 47-348-73)
manualmanualIDEAL appliance manual — EVO HE C22/24 (GC 47-348-32), EVO HE C22/30 (GC 47-348-33), EVO HE C22/35 (GC 47-348-34)
manualmanualIDEAL appliance manual — EVO HE H12 (GC 41-397-96), EVO HE H16 (GC 41-397-86), EVO HE H19 (GC 41-397-93), EVO HE H22 (GC 41-397-94)
manualmanualIDEAL appliance manual — ICOS HE12 (GC 41-397-95), ICOS HE15 (GC 41-397-83), ICOS HE18 (GC 41-397-84), ICOS HE24 (GC 41-397-85)
manualmanualIDEAL appliance manual — ICOS M3080 (GC 41-391-49)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE15 (GC 41-421-99)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE24 (GC 41-397-82)
manualmanualIDEAL appliance manual — ICOS SYSTEM M3080 (GC 41-391-52)
manualmanualIDEAL appliance manual — ISAR + PROGRAMMER HE24 (GC 47-348-43), ISAR + PROGRAMMER HE30 (GC 47-348-44), ISAR + PROGRAMMER HE35 (GC 47-348-45)
manualmanualIDEAL appliance manual — ISAR HE24 (GC 47-348-31), ISAR HE30 (GC 47-348-30), ISAR HE35 (GC 47-348-29)
manualmanualIDEAL appliance manual — ISAR M30100 (GC 47-348-15)
manualmanualIDEAL appliance manual — ISTOR HE260 (GC 41-394-13), ISTOR HE325 (GC 41-394-14)
manualNo technical questions yet for this part.
