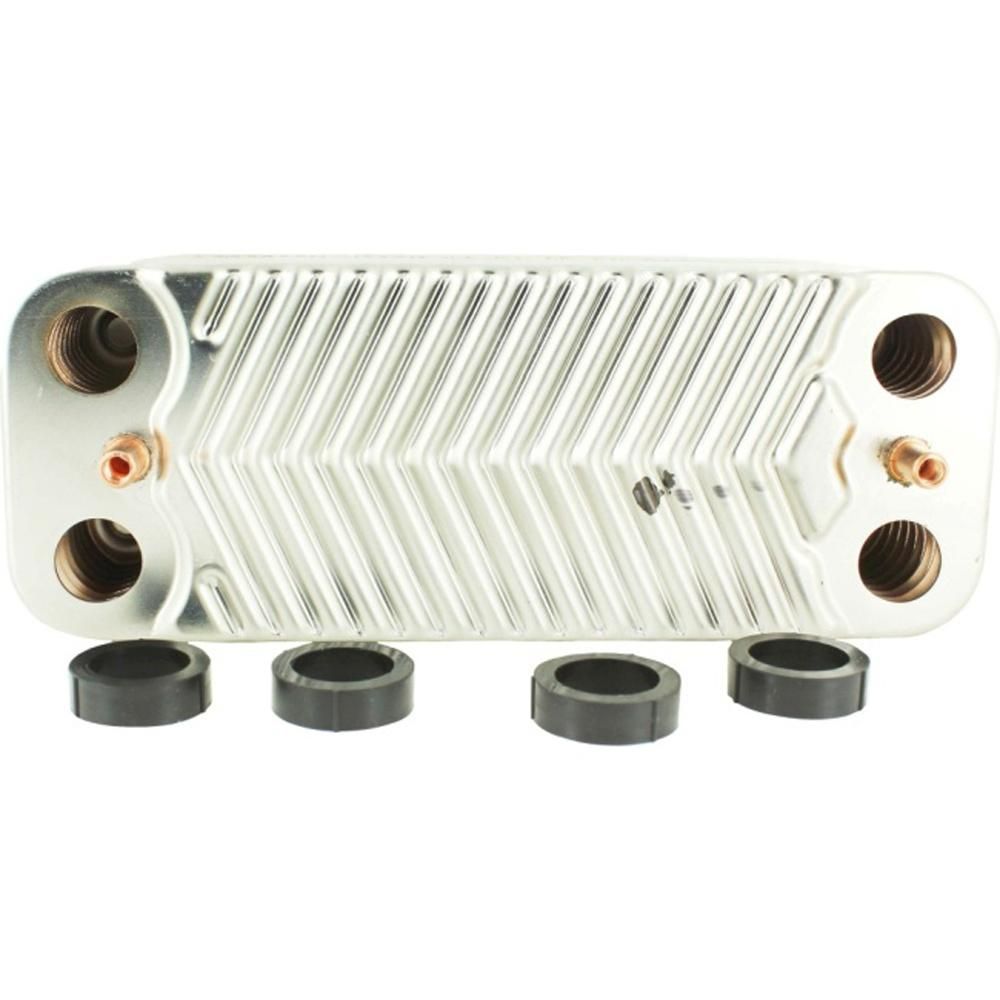

Ideal 170995 DHW Plate Heat Exchanger Kit Isar
At a glance
- Part type: Plate heat exchanger kit
- Appliance family: Ideal Isar
- Also known as 252970859255, 1177990, N4970, IDEAL170995
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£148.51
£123.76 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 170995 is a plate heat exchanger kit manufactured for Ideal Isar appliances. The plate heat exchanger transfers heat between the primary circuit and the domestic hot water circuit, so it sits at the centre of the appliance's hot water performance. This kit is supplied with the screws and washers needed to mount the exchanger during the repair.
Signs this part needs replacing
- Domestic hot water runs hot and cold, or the temperature fluctuates at the tap
- Reduced hot water flow rate compared with the cold supply
- Scale or debris blocking the plate passages, common in hard water areas
- Water weeping from the plate pack or from the seals around the exchanger
- Poor heat transfer between the primary and secondary circuits, with the boiler firing but the tap water staying lukewarm
Before you order
- Confirm the appliance model and, where available, the GC number against the compatibility list before ordering.
- Check the existing plate heat exchanger and its mounting hardware to confirm the kit matches what is fitted.
- Have new seals or gaskets to hand if the existing ones are disturbed during removal.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Heat Exchangers |
|---|---|
| Appliance family | Ideal Isar |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 170995 |
|---|---|
| GC number | E69-408 |
| Commodity code | 8419 50 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | IDEAL170995, 252970859255, 1177990, N4970 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL EVO HE C22/30 | 47-348-33 | 47-348-33 | — | — |
| IDEAL EXCEL HE C24 | 47-348-35 | 47-348-35 | — | — |
| IDEAL IDEAL : EVO HE C22/30 | — | — | — | |
| IDEAL IDEAL : EXCEL HE C24 | — | — | — | |
| IDEAL IDEAL : EXCEL HE C28 | — | — | — | |
| IDEAL IDEAL : EXCEL HE C32 | — | — | — | |
| IDEAL IDEAL : ISAR + PROGRAMMER HE30 | — | — | — | |
| IDEAL IDEAL : ISAR HE30 | — | — | — | |
| IDEAL IDEAL : ISAR M30100 | — | — | — |
Showing 10 of 14 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — ESPRIT 2 - 30 (GC 47-348-72)
manualmanualIDEAL appliance manual — EVO HE C22/30 (GC 47-348-33)
manualmanualIDEAL appliance manual — EXCEL HE C24 (GC 47-348-35)
manualmanualIDEAL appliance manual — ISAR + PROGRAMMER HE30 (GC 47-348-44)
manualmanualIDEAL appliance manual — ISAR HE30 (GC 47-348-30)
manualmanualIDEAL appliance manual — ISAR M30100 (GC 47-348-15)
manualNo technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
