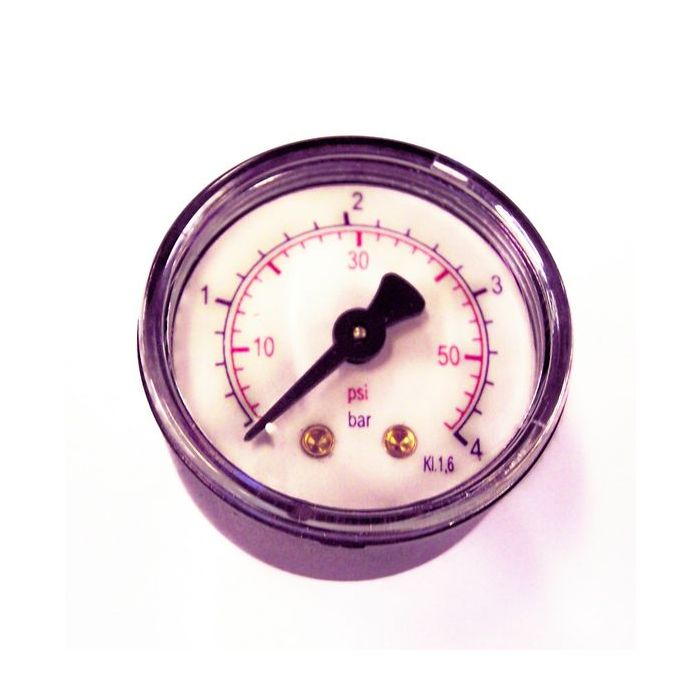

Ideal 170991 Pressure Gauge Kit Isar/Icos System
Ideal 170991 pressure gauge kit for Ideal gas boilers, used to show system water pressure on the sealed heating circuit.
At a glance
- Part type: Gauges – Temperature / Pressure
- Also known as 1177986, N7530, IDEAL170991
£52.34
£43.62 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 170991 is a pressure gauge kit manufactured by Ideal for use on Ideal gas boilers. The gauge displays the water pressure inside the sealed heating circuit, giving a direct visual reading at the boiler so the system can be checked against its required operating range. It is listed under the gauges – temperature / pressure part group and is supplied as a kit rather than a bare gauge head.
Signs this part needs replacing
- The needle sits at zero or fails to move when the system is pressurised.
- The reading drifts or jumps and does not match the pressure shown at the filling loop.
- The needle sticks, or does not return to zero when pressure is released.
- Water weeps from the gauge body or its connection to the boiler.
- The dial face is clouded, cracked or the scale is no longer legible.
Before you order
- Note the boiler model and GC number from the data badge and confirm the part number against the appliance parts list.
- Check the existing gauge connection and seating before fitting, and renew any sealing washer or O-ring if the joint shows signs of weeping.
Mechanical
| Part type | Gauges - Temperature / Pressure |
|---|
Compliance
| Manufacturer part number (MPN) | IDEAL170991 |
|---|---|
| GC number | E69-341 |
| Commodity code | 9026 20 20 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 5022141709913, IDEAL170991, IDEAL170991, IDEAL170991, 43375488, 1177986, N7530 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ESPRIT 2 - 24 | 47-348-71 | 47-348-71 | — | — |
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL EVO HE C22/24 | 47-348-32 | 47-348-32 | — | — |
| IDEAL EVO HE C22/30 | 47-348-33 | 47-348-33 | — | — |
| IDEAL EVO HE C22/35 | 47-348-34 | 47-348-34 | — | — |
| IDEAL ICOS SYSTEM HE15 | 41-421-99 | 41-421-99 | — | — |
| IDEAL ICOS SYSTEM HE24 | 41-397-82 | 41-397-82 | — | — |
| IDEAL ICOS SYSTEM M3080 | 41-391-52 | 41-391-52 | — | — |
| IDEAL IDEAL : EVO HE C22/24 | — | — | — |
Showing 10 of 29 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — ESPRIT 2 - 24 (GC 47-348-71), ESPRIT 2 - 30 (GC 47-348-72), ESPRIT 2 - 35 (GC 47-348-73)
manualmanualIDEAL appliance manual — EVO HE C22/24 (GC 47-348-32), EVO HE C22/30 (GC 47-348-33), EVO HE C22/35 (GC 47-348-34)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE15 (GC 41-421-99)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE24 (GC 41-397-82)
manualmanualIDEAL appliance manual — ICOS SYSTEM M3080 (GC 41-391-52)
manualmanualIDEAL appliance manual — ISAR + PROGRAMMER HE24 (GC 47-348-43), ISAR + PROGRAMMER HE30 (GC 47-348-44), ISAR + PROGRAMMER HE35 (GC 47-348-45)
manualmanualIDEAL appliance manual — ISAR HE24 (GC 47-348-31), ISAR HE30 (GC 47-348-30), ISAR HE35 (GC 47-348-29)
manualmanualIDEAL appliance manual — ISAR M30100 (GC 47-348-15)
manualNo technical questions yet for this part.
