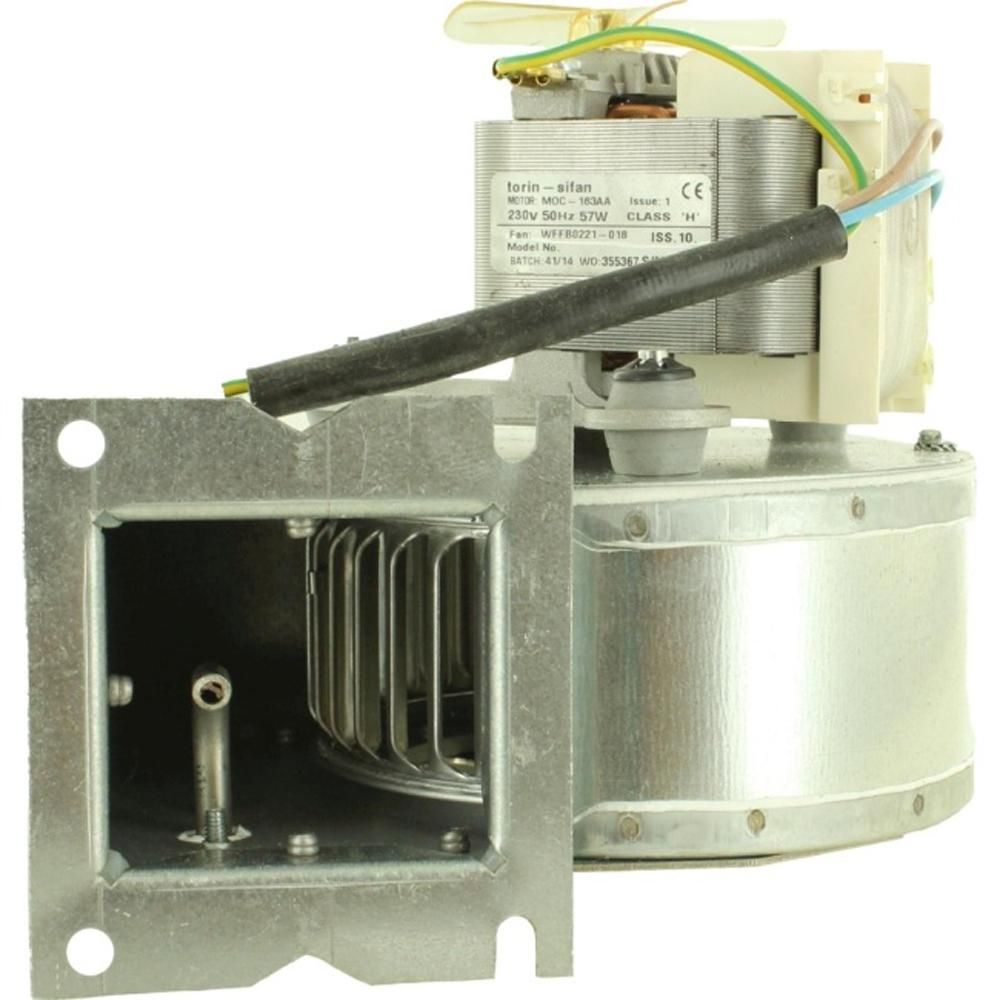

Ideal Fan Assembly Super Ser 4 170950
Ideal 170950 fan assembly for Ideal Commercial Concord Super Series 4 horizontal and vertical appliances.
At a glance
- Part type: Fan assembly
- Appliance family: Ideal Commercial Concord Super Series 4
- Also known as 1177969, N9274-3
£752.08
£626.73 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 170950 is a fan assembly produced for the Ideal Commercial Concord Super Series 4 range. It sits within the appliance and performs a key function in the combustion and flue path, drawing air through the burner and discharging flue products to the outlet so the unit runs reliably. It is listed by Ideal under the Ideal Spares banner and is supplied as a spare for service and repair work.
Signs this part needs replacing
- Grinding, rumbling or whistling noise from the fan area during or after ignition
- The appliance locks out on a fan or air pressure fault and will not reset
- Fan runs intermittently, at reduced speed, or fails to start on a call for heat
- Visible damage to the impeller, housing or mounting, or debris and corrosion inside the fan
- Repeated ignition failure or unstable flame signal traced to poor air movement
Before you order
- Confirm the appliance model and serial number against the compatibility list, as the Concord Super Series 4 is supplied in horizontal and vertical formats
- Check the part number on the existing fan assembly before ordering, and cross-reference the alternative numbers 1177969, N9274-3 and 100780
- Have the installation and service literature to hand so the replacement is fitted and commissioned to the manufacturer's instructions
Mechanical
| Part type | Fan Impellors & Fan Assembly |
|---|---|
| Appliance family | Ideal Commercial Concord Super Series 4 |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 170950 |
|---|---|
| Barcode / EAN | 5022141709500 |
| Commodity code | 8414 59 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 100780, 1177969, N9274-3 |
| Previous numbers | 100780 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD SUPER SERIES 4 - HORIZONTAL | — | — | — | |
| IDEAL COMMERCIAL CONCORD SUPER SERIES 4 - VERTICAL | — | — | — | |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
