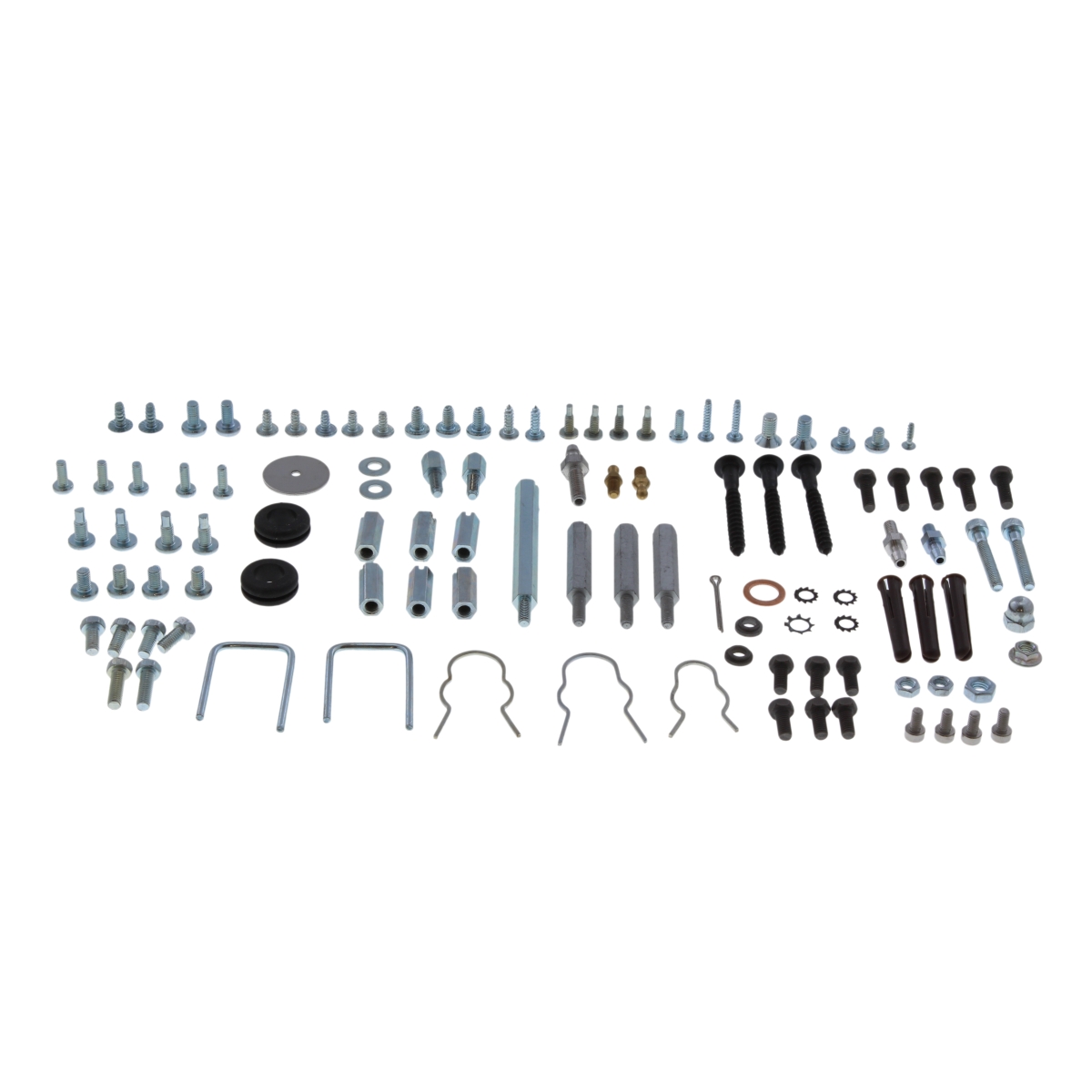

Ideal Fixing Kit M Series 170941
Ideal 170941 fixing kit for Classic M, Elise and Esprit boilers, supplied as a set of fixings for servicing or replacing boiler sections.
At a glance
- Part type: Fixing kit
- Also known as 1177967
Showing prices
£47.96
£39.97 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 170941 is a boiler fixing kit made up of the fasteners and fittings needed to secure and reassemble parts of the appliance. The individual pieces vary in shape and size, but together they form a kit used when servicing or replacing a complete section or component of a boiler. It is supplied by Ideal for models across the Classic M, Elise and Esprit families.
Signs this part needs replacing
- Fixings are corroded, rusted or seized after long service and will not release cleanly
- Screw heads are rounded or stripped, so fasteners cannot be tightened or removed
- Panels, brackets or internal components are loose and rattle or vibrate in use
- Fixings have been lost or dropped during a previous service or strip-down
- Fasteners no longer hold torque and allow parts to work loose again shortly after reassembly
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the kit suits your model
- Confirm the part number 170941 or the alternative number 1177967 matches the fixings being replaced
- If the joint being disturbed is sealed, check whether a gasket or seal is also required before starting the job
Mechanical
| Part type | Fittings & Fixings |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 170941 |
|---|---|
| GC number | E67-530 |
| Barcode / EAN | 5022141709418 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1177967 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC M 3050 | 41-391-50 | 41-391-50 | — | — |
| IDEAL CLASSIC M 5080 | 41-391-51 | 41-391-51 | — | — |
| IDEAL ELISE HE15 | 41-399-97 | 41-399-97 | — | — |
| IDEAL ELISE HE24 | 41-399-98 | 41-399-98 | — | — |
| IDEAL ESPRIT 2 - 24 | 47-348-71 | 47-348-71 | — | — |
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL ESPRIT HE24 | 47-348-46 | 47-348-46 | — | — |
| IDEAL ESPRIT HE30 | 47-348-47 | 47-348-47 | — | — |
| IDEAL ESPRIT HE35 | 47-348-48 | 47-348-48 | — | — |
Showing 10 of 43 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL appliance manual — CLASSIC M 3050 (GC 41-391-50), CLASSIC M 5080 (GC 41-391-51)
manualmanualIDEAL appliance manual — ELISE HE15 (GC 41-399-97), ELISE HE24 (GC 41-399-98)
manualmanualIDEAL appliance manual — ESPRIT 2 - 24 (GC 47-348-71), ESPRIT 2 - 30 (GC 47-348-72), ESPRIT 2 - 35 (GC 47-348-73)
manualmanualIDEAL appliance manual — ESPRIT HE24 (GC 47-348-46), ESPRIT HE30 (GC 47-348-47), ESPRIT HE35 (GC 47-348-48)
manualmanualIDEAL appliance manual — EVO HE C22/24 (GC 47-348-32), EVO HE C22/30 (GC 47-348-33), EVO HE C22/35 (GC 47-348-34)
manualmanualIDEAL appliance manual — EVO HE H12 (GC 41-397-96), EVO HE H16 (GC 41-397-86), EVO HE H19 (GC 41-397-93), EVO HE H22 (GC 41-397-94)
manualmanualIDEAL appliance manual — ICOS HE12 (GC 41-397-95), ICOS HE15 (GC 41-397-83), ICOS HE18 (GC 41-397-84), ICOS HE24 (GC 41-397-85)
manualmanualIDEAL appliance manual — ICOS M3080 (GC 41-391-49)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE15 (GC 41-421-99)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE24 (GC 41-397-82)
manualmanualIDEAL appliance manual — ICOS SYSTEM M3080 (GC 41-391-52)
manualmanualIDEAL appliance manual — ISAR + PROGRAMMER HE24 (GC 47-348-43), ISAR + PROGRAMMER HE30 (GC 47-348-44), ISAR + PROGRAMMER HE35 (GC 47-348-45)
manualmanualIDEAL appliance manual — ISAR HE24 (GC 47-348-31), ISAR HE30 (GC 47-348-30), ISAR HE35 (GC 47-348-29)
manualmanualIDEAL appliance manual — ISAR M30100 (GC 47-348-15)
manualmanualIDEAL appliance manual — ISTOR HE260 (GC 41-394-13), ISTOR HE325 (GC 41-394-14)
manualmanualIDEAL appliance manual — MEXICO HE 15 (GC 41-429-39), MEXICO HE 18 (GC 41-429-65), MEXICO HE 24 (GC 41-429-98), MEXICO HE 30 (GC 41-429-99), MEXICO HE 36 (GC 41-415-20)
