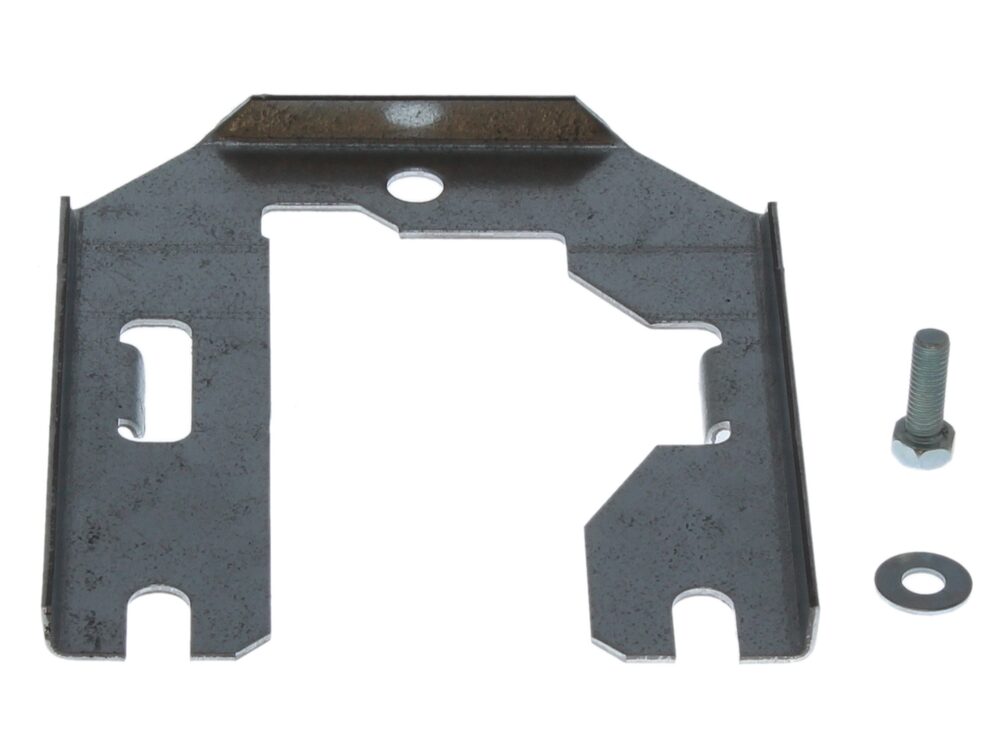

Ideal Fan Fixing Kit M Series 170914
Ideal 170914 fan fixing kit for M Series boilers, securing the fan assembly on Classic M, Elise HE and Esprit 2 models.
At a glance
- Part type: Fan fixing kit
- Appliance family: M Series
- Also known as 1177944
Showing prices
£15.65
£13.04 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 170914 is a fan fixing kit for Ideal domestic boilers. It holds the combustion fan securely in position on the appliance casing or fan mounting, keeping the fan aligned so it runs without movement or vibration. This kit is listed against the Ideal M Series family and is used across a broad spread of Classic M, Elise HE and Esprit 2 appliances.
Signs this part needs replacing
- Fan assembly rattling or vibrating against its mounting
- Fan sitting loose or able to move by hand when the casing is opened
- Grinding or scraping noise from the fan area on start-up
- Fixings corroded, seized or missing after previous service work
- Fan gasket face not pulling down evenly against the mounting
Before you order
- Check the GC number on the appliance data badge against the compatibility list before ordering
- Confirm the boiler model and, where relevant, the serial number, as the same part number can appear across several M Series variants
- Inspect the fan gasket and sealing face while the fan is off, and replace if it is perished or compressed
Mechanical
| Part type | Fan Fixing Kit |
|---|---|
| Appliance family | M Series |
Compliance
| Manufacturer part number (MPN) | 170914 |
|---|---|
| GC number | E67-498 |
| Barcode / EAN | 5022141709142 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1177944 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC M 3050 | 41-391-50 | 41-391-50 | — | — |
| IDEAL CLASSIC M 5080 | 41-391-51 | 41-391-51 | — | — |
| IDEAL ELISE HE15 | 41-399-97 | 41-399-97 | — | — |
| IDEAL ELISE HE24 | 41-399-98 | 41-399-98 | — | — |
| IDEAL ESPRIT 2 - 24 | 47-348-71 | 47-348-71 | — | — |
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL ESPRIT HE24 | 47-348-46 | 47-348-46 | — | — |
| IDEAL ESPRIT HE30 | 47-348-47 | 47-348-47 | — | — |
| IDEAL ESPRIT HE35 | 47-348-48 | 47-348-48 | — | — |
Showing 10 of 45 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL appliance manual — CLASSIC M 3050 (GC 41-391-50), CLASSIC M 5080 (GC 41-391-51)
manualmanualIDEAL appliance manual — ELISE HE15 (GC 41-399-97), ELISE HE24 (GC 41-399-98)
manualmanualIDEAL appliance manual — ESPRIT 2 - 24 (GC 47-348-71), ESPRIT 2 - 30 (GC 47-348-72), ESPRIT 2 - 35 (GC 47-348-73)
manualmanualIDEAL appliance manual — ESPRIT HE24 (GC 47-348-46), ESPRIT HE30 (GC 47-348-47), ESPRIT HE35 (GC 47-348-48)
manualmanualIDEAL appliance manual — EVO HE C22/24 (GC 47-348-32), EVO HE C22/30 (GC 47-348-33), EVO HE C22/35 (GC 47-348-34)
manualmanualIDEAL appliance manual — EVO HE H12 (GC 41-397-96), EVO HE H16 (GC 41-397-86), EVO HE H19 (GC 41-397-93), EVO HE H22 (GC 41-397-94)
manualmanualIDEAL appliance manual — ICOS HE12 (GC 41-397-95), ICOS HE15 (GC 41-397-83), ICOS HE18 (GC 41-397-84), ICOS HE24 (GC 41-397-85)
manualmanualIDEAL appliance manual — ICOS HE30 (GC 41-399-10), ICOS HE36 (GC 41-399-16)
manualmanualIDEAL appliance manual — ICOS M3080 (GC 41-391-49)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE15 (GC 41-421-99)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE24 (GC 41-397-82)
manualmanualIDEAL appliance manual — ICOS SYSTEM M3080 (GC 41-391-52)
manualmanualIDEAL appliance manual — ISAR + PROGRAMMER HE24 (GC 47-348-43), ISAR + PROGRAMMER HE30 (GC 47-348-44), ISAR + PROGRAMMER HE35 (GC 47-348-45)
manualmanualIDEAL appliance manual — ISAR HE24 (GC 47-348-31), ISAR HE30 (GC 47-348-30), ISAR HE35 (GC 47-348-29)
manualmanualIDEAL appliance manual — ISAR M30100 (GC 47-348-15)
manualmanualIDEAL appliance manual — ISTOR HE260 (GC 41-394-13), ISTOR HE325 (GC 41-394-14)
manualmanualIDEAL appliance manual — MEXICO HE 15 (GC 41-429-39), MEXICO HE 18 (GC 41-429-65), MEXICO HE 24 (GC 41-429-98), MEXICO HE 30 (GC 41-429-99), MEXICO HE 36 (GC 41-415-20)
