Ideal

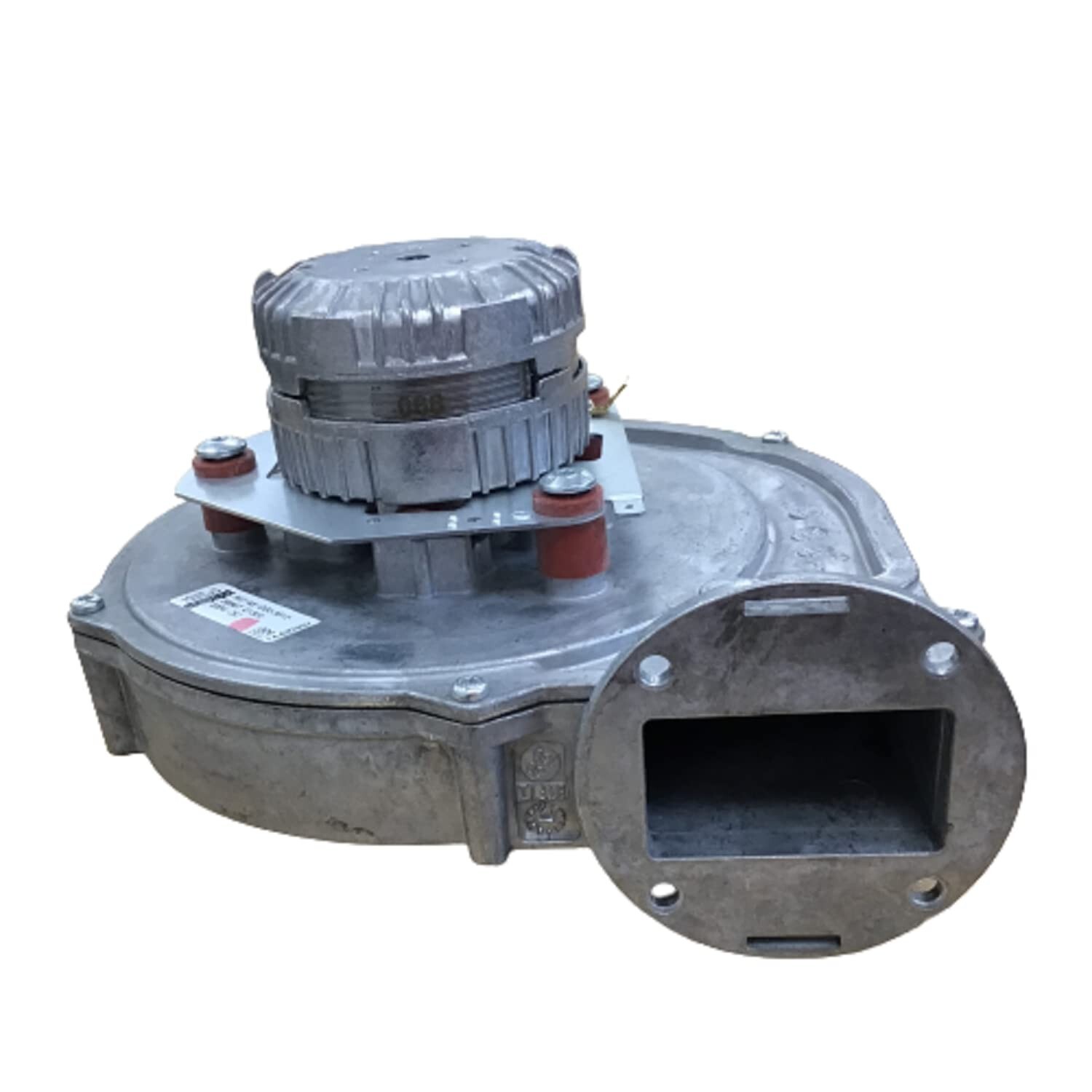

Ideal 170909 Isar/Icos M Series Fan Kit
At a glance
- Part type: Fan kit
- Appliance family: Icos, Isar, Icos System
- Also known as 1177939, N7918, IDEAL170909
£253.63
£211.36 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 170909 is a fan kit intended for Ideal Icos, Isar and Icos System boilers. The fan draws combustion air into the burner and pushes flue gases out through the flue assembly, so it sits at the centre of the appliance's safe combustion and flueing operation. This kit is supplied as a fan assembly for direct replacement of the original unit.
Signs this part needs replacing
- The boiler locks out or fails to ignite, with a fan or air pressure related fault code stored.
- Whistling, grinding or rumbling noise from the fan area during or after ignition.
- Intermittent operation where the boiler runs and then shuts down shortly after firing.
- Visible damage, corrosion or debris build-up on the fan impeller or housing.
- Flue gas readings outside the expected range, or repeated flame failure on start-up.
Before you order
- Confirm the appliance model and, where available, the GC number against the compatibility list before ordering.
- Check the existing fan assembly and its mounting gasket or seal, as these may need renewing at the same time.
- Isolate the electrical supply and the gas supply before removing the existing fan, and follow the manufacturer's service instructions.
Mechanical
| Part type | Fan kit |
|---|---|
| Appliance family | Icos, Isar, Icos System |
Compliance
| Manufacturer part number (MPN) | 170909 |
|---|---|
| GC number | E67-494 |
| Commodity code | 8414 59 00 90 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 5022141709098, IDEAL170909, IDEAL170909, IDEAL170909, 254811513778, 43375451, 1177939, N7918 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ICOS M3080 | 41-391-49 | 41-391-49 | — | — |
| IDEAL ICOS SYSTEM M3080 | 41-391-52 | 41-391-52 | — | — |
| IDEAL IDEAL : ICOS M3080 | — | — | — | |
| IDEAL IDEAL : ICOS SYSTEM M3080 | — | — | — | |
| IDEAL IDEAL : ISAR M30100 | — | — | — | |
| IDEAL ISAR M30100 | 47-348-15 | 47-348-15 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
