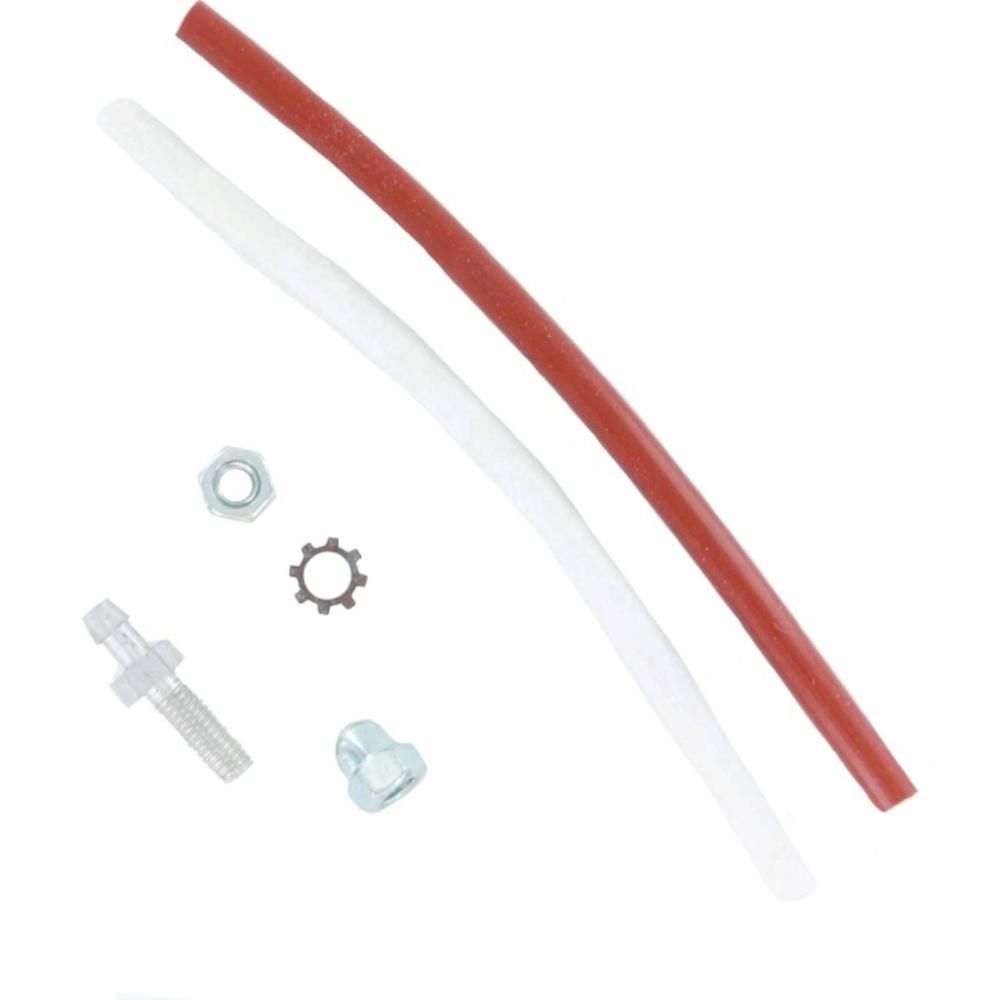

Ideal Flue Sensing Nipple Kit M Series 170901
Ideal 170901 flue sensing nipple kit for M Series boilers, including Classic M, Elise HE and Esprit 2 models. Ideal Spares component, GC E67-483.
At a glance
- Part type: Flue assembly
- Also known as 1177932
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£13.50
£11.25 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 170901 is a flue sensing nipple kit supplied as an Ideal Spares component for the M Series boiler family. It forms part of the flue assembly, providing the sensing point that the appliance controls use to monitor conditions in the flue path and support safe, reliable operation. The kit is listed under part type Flue Assembly and carries the GC number E67-483.
Signs this part needs replacing
- The boiler locks out or fails to prove flame sensing at ignition
- Intermittent shutdowns or repeated nuisance lockouts during normal running
- Flue gas readings fall outside the expected range when the appliance is serviced
- Visible corrosion, cracking, distortion or sooting around the nipple
- Recurring fault codes linked to flue or flame sensing on the appliance display
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct variant.
- Confirm the boiler model and, where available, the serial number before ordering.
- The alternative number 1177932 identifies the same component.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Flue Assembly |
|---|---|
| Appliance family | M Series |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 170901 |
|---|---|
| GC number | E67-483 |
| Barcode / EAN | 5022141709012 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1177932 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC M 3050 | 41-391-50 | 41-391-50 | — | — |
| IDEAL CLASSIC M 5080 | 41-391-51 | 41-391-51 | — | — |
| IDEAL ELISE HE15 | 41-399-97 | 41-399-97 | — | — |
| IDEAL ELISE HE24 | 41-399-98 | 41-399-98 | — | — |
| IDEAL ESPRIT 2 - 24 | 47-348-71 | 47-348-71 | — | — |
| IDEAL ESPRIT 2 - 30 | 47-348-72 | 47-348-72 | — | — |
| IDEAL ESPRIT 2 - 35 | 47-348-73 | 47-348-73 | — | — |
| IDEAL EVO HE C22/24 | 47-348-32 | 47-348-32 | — | — |
| IDEAL EVO HE C22/30 | 47-348-33 | 47-348-33 | — | — |
| IDEAL EVO HE C22/35 | 47-348-34 | 47-348-34 | — | — |
Showing 10 of 69 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL appliance manual — CLASSIC M 3050 (GC 41-391-50), CLASSIC M 5080 (GC 41-391-51)
manualmanualIDEAL appliance manual — ELISE HE15 (GC 41-399-97), ELISE HE24 (GC 41-399-98)
manualmanualIDEAL appliance manual — ESPRIT 2 - 24 (GC 47-348-71), ESPRIT 2 - 30 (GC 47-348-72), ESPRIT 2 - 35 (GC 47-348-73)
manualmanualIDEAL appliance manual — EVO HE C22/24 (GC 47-348-32), EVO HE C22/30 (GC 47-348-33), EVO HE C22/35 (GC 47-348-34)
manualmanualIDEAL appliance manual — EVO HE H12 (GC 41-397-96), EVO HE H16 (GC 41-397-86), EVO HE H19 (GC 41-397-93), EVO HE H22 (GC 41-397-94)
manualmanualIDEAL appliance manual — HENRAD CC100 FF (GC 47-348-12), HENRAD CC120FF (GC 47-348-13), HENRAD CC80 FF (GC 47-348-11)
manualmanualIDEAL appliance manual — HENRAD SE30 FF (GC 41-387-46), HENRAD SE40 FF (GC 41-387-47), HENRAD SE50 FF (GC 41-387-48), HENRAD SE60 FF (GC 41-387-49), HENRAD SE70 FF (GC 41-387-50), HENRAD SE80 FF (GC 41-387-51)
manualmanualIDEAL appliance manual — HENRAD SEC FF (GC 47-348-10)
manualmanualIDEAL appliance manual — ICOS HE12 (GC 41-397-95), ICOS HE15 (GC 41-397-83), ICOS HE18 (GC 41-397-84), ICOS HE24 (GC 41-397-85)
manualmanualIDEAL appliance manual — ICOS HE30 (GC 41-399-10), ICOS HE36 (GC 41-399-16)
manualmanualIDEAL appliance manual — ICOS M3080 (GC 41-391-49)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE15 (GC 41-421-99)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE24 (GC 41-397-82)
manualmanualIDEAL appliance manual — ICOS SYSTEM M3080 (GC 41-391-52)
manualmanualIDEAL appliance manual — ISAR + PROGRAMMER HE24 (GC 47-348-43), ISAR + PROGRAMMER HE30 (GC 47-348-44), ISAR + PROGRAMMER HE35 (GC 47-348-45)
manualmanualIDEAL appliance manual — ISAR HE24 (GC 47-348-31), ISAR HE30 (GC 47-348-30), ISAR HE35 (GC 47-348-29)
manualmanualIDEAL appliance manual — ISAR M30100 (GC 47-348-15)
manualmanualIDEAL appliance manual — ISTOR HE260 (GC 41-394-13), ISTOR HE325 (GC 41-394-14)
manualmanualIDEAL appliance manual — MEXICO HE 15 (GC 41-429-39), MEXICO HE 18 (GC 41-429-65), MEXICO HE 24 (GC 41-429-98), MEXICO HE 30 (GC 41-429-99), MEXICO HE 36 (GC 41-415-20)
manualmanualIDEAL appliance manual — MINIMISER FF30 (GC 41-387-16), MINIMISER FF40 (GC 41-387-17), MINIMISER FF50 (GC 41-387-18), MINIMISER FF60 (GC 41-387-19), MINIMISER FF70 (GC 41-387-20), MINIMISER FF80 (GC 41-387-21)
manualmanualIDEAL appliance manual — MINIMISER SE30 (GC 41-349-64), MINIMISER SE40 (GC 41-349-65), MINIMISER SE50 (GC 41-349-66), MINIMISER SE60 (GC 41-349-67), MINIMISER SE70 (GC 41-349-68), MINIMISER SE80 (GC 41-349-69)
manualmanualIDEAL appliance manual — RESPONSE 100 (GC 47-348-04), RESPONSE 120 (GC 47-348-01), RESPONSE 80 (GC 47-348-02)
manualmanualIDEAL appliance manual — RESPONSE SE (GC 47-348-03)
manualmanualIDEAL appliance manual — SYSTEMISER SE (GC 41-349-70)
manualNo technical questions yet for this part.
