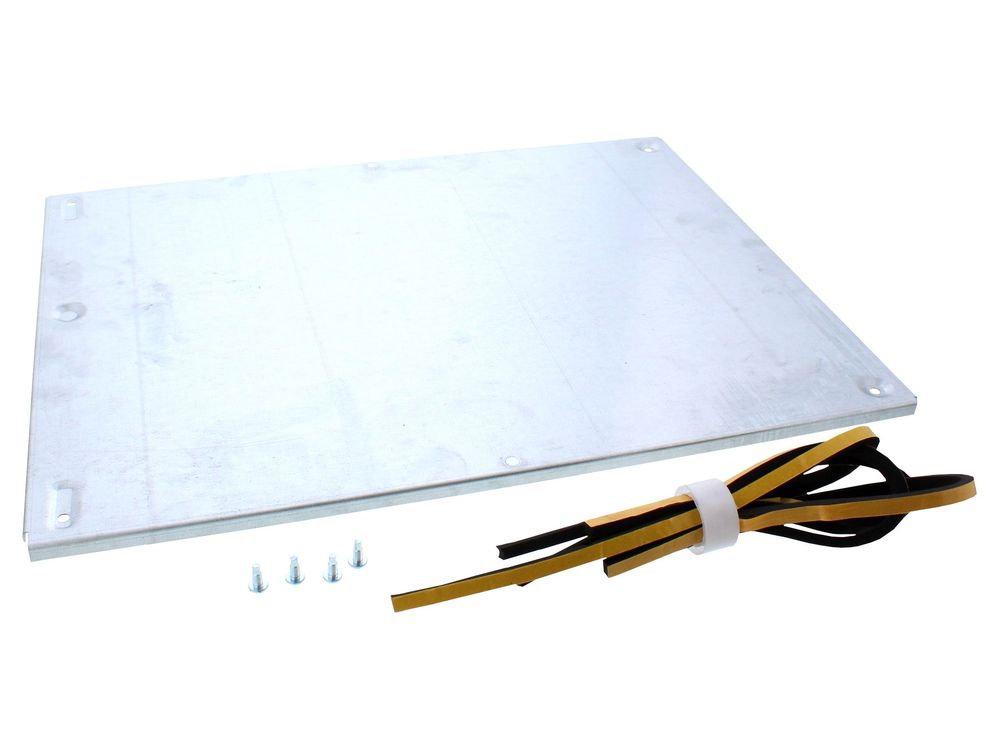

Ideal Case Sealing Panel Kit Icos and Icos System 170898
Ideal case sealing panel kit, part 170898, for Icos, Icos System and Elise HE boilers; seals the outer case to the combustion area.
At a glance
- Part type: Gaskets, o-rings, seals and washers
- Also known as 1177929
£164.62
£137.18 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal case sealing panel kit, part number 170898, is a replacement sealing assembly for the outer case of Ideal Icos and Icos System boilers. It sits between the boiler casing and the combustion chamber area, keeping the case sealed so that combustion products are directed to the flue rather than into the room. Ideal supplies it as a spare for servicing and repair across the Icos range and related models.
Signs this part needs replacing
- Cracking, splitting or hardening of the sealing panel material
- The case no longer sits flush, leaving gaps along the panel edges
- Discolouration or heat damage across the panel surface
- Evidence of combustion products escaping into the case area
- The seal fails to hold after the case has been removed and refitted
Before you order
- Check the GC number on the appliance data badge against E67-480 before ordering.
- Confirm the boiler model against the compatibility list; the kit covers Icos, Icos System and Elise HE variants.
- Check whether any associated gaskets or seals also need replacing at the same time.
Mechanical
| Part type | Casings, Covers & Panels |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 170898 |
|---|---|
| GC number | E67-480 |
| Barcode / EAN | 5022141708985 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1177929 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ELISE HE15 | 41-399-97 | 41-399-97 | — | — |
| IDEAL ELISE HE24 | 41-399-98 | 41-399-98 | — | — |
| IDEAL ICOS HE12 | 41-397-95 | 41-397-95 | — | — |
| IDEAL ICOS HE15 | 41-397-83 | 41-397-83 | — | — |
| IDEAL ICOS HE18 | 41-397-84 | 41-397-84 | — | — |
| IDEAL ICOS HE24 | 41-397-85 | 41-397-85 | — | — |
| IDEAL ICOS M3080 | 41-391-49 | 41-391-49 | — | — |
| IDEAL ICOS SYSTEM HE15 | 41-421-99 | 41-421-99 | — | — |
| IDEAL ICOS SYSTEM HE24 | 41-397-82 | 41-397-82 | — | — |
| IDEAL ICOS SYSTEM M3080 | 41-391-52 | 41-391-52 | — | — |
Showing 10 of 11 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — ELISE HE15 (GC 41-399-97), ELISE HE24 (GC 41-399-98)
manualmanualIDEAL appliance manual — ICOS HE12 (GC 41-397-95), ICOS HE15 (GC 41-397-83), ICOS HE18 (GC 41-397-84), ICOS HE24 (GC 41-397-85)
manualmanualIDEAL appliance manual — ICOS M3080 (GC 41-391-49)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE15 (GC 41-421-99)
manualmanualIDEAL appliance manual — ICOS SYSTEM HE24 (GC 41-397-82)
manualmanualIDEAL appliance manual — ICOS SYSTEM M3080 (GC 41-391-52)
manualNo technical questions yet for this part.
