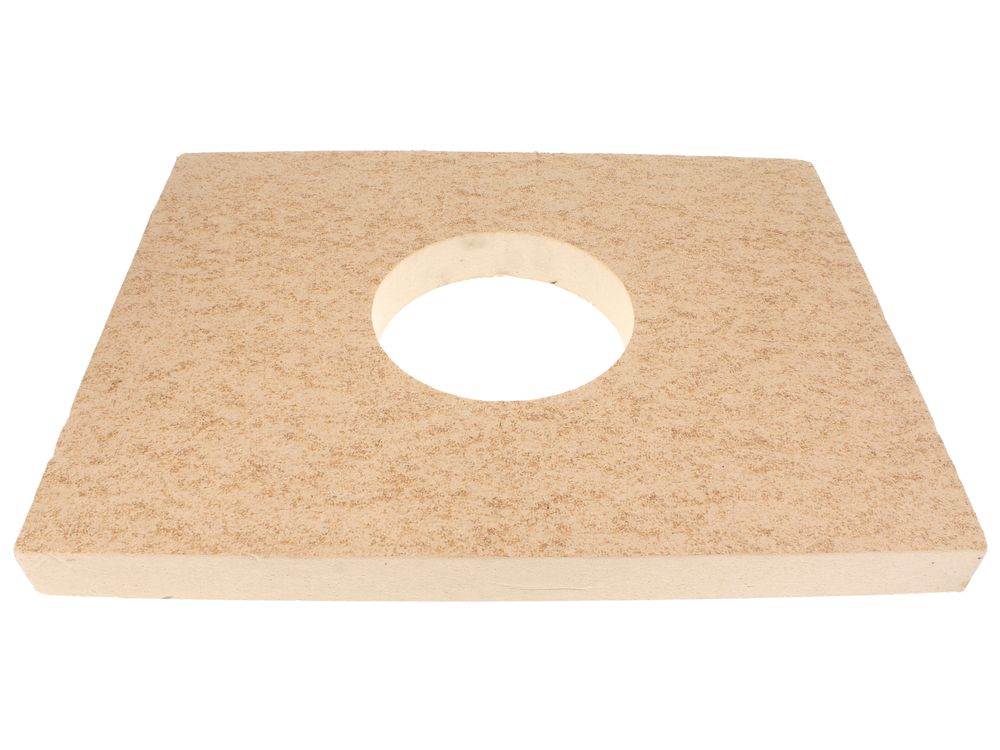

Ideal Burner Door Insulation 170390
Burner door insulation for Ideal Commercial boilers, part 170390 (previous number 97550236), fitting Viscount GTE and other models.
At a glance
- Part type: Burner door insulation
- Also known as BURNER-DOOR-INSUL-97550236, 1177587
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£217.25
£181.04 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal burner door insulation, part 170390, is a heat-resistant insulating panel that fits inside the burner door of Ideal Commercial boilers. It shields the door and the surrounding casing from the radiant heat of the combustion chamber and keeps that heat within the firing area. It is supplied as an Ideal Commercial boiler spare and is listed against the Viscount GTE range and other Ideal Commercial appliances.
Signs this part needs replacing
- The insulation panel is cracked, crumbling or breaking away from the burner door
- Discoloured or burnt-through surface where the flame has been playing on the panel
- The burner door or front casing runs noticeably hotter than usual
- Combustion readings drift or become difficult to set
- Loose insulation material found in the combustion chamber during a service
Before you order
- Confirm the boiler model and serial number against the compatibility list before ordering.
- Check the number marked on the existing insulation; 97550236 is the previous number for this part.
- Inspect the burner door gasket or seal at the same time, as it is disturbed when the door is removed.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Burner door insulation |
|---|
Compliance
| Manufacturer part number (MPN) | 170390 |
|---|---|
| Barcode / EAN | 5022141703904 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | BURNER-DOOR-INSUL-97550236, 97550236, 1177587 |
| Previous numbers | 97550236 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL VISCOUNT GTE | — | — | — | |
| IDEAL COMMERCIAL VISCOUNT GTE14 NUWAY GAS | — | — | — | |
| IDEAL COMMERCIAL VISCOUNT GTE14 NUWAY OIL | — | — | — | |
| IDEAL COMMERCIAL VISCOUNT GTE14 RIELLO GAS | — | — | — | |
| IDEAL COMMERCIAL VISCOUNT GTE14 RIELLO OIL | — | — | — | |
| IDEAL COMMERCIAL VISCOUNT GTE14 SPECIAL | — | — | — | |
| IDEAL COMMERCIAL VISCOUNT GTE15 NUWAY GAS | — | — | — | |
| IDEAL COMMERCIAL VISCOUNT GTE15 RIELLO GAS | — | — | — | |
| IDEAL COMMERCIAL VISCOUNT GTE15 SPECIAL | — | — | — |
Showing 10 of 35 compatible appliances.
