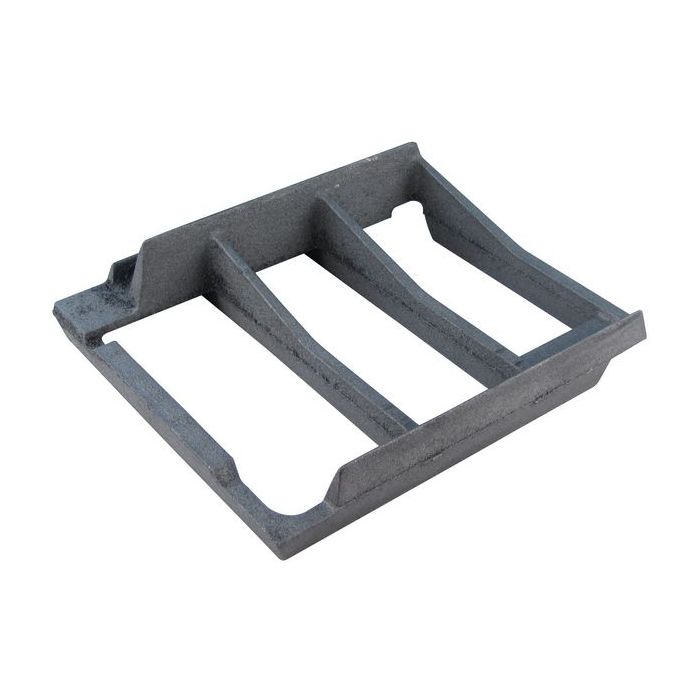

Ideal Lower Baffle Commercial 170305
Ideal Commercial lower baffle, part 170305 (previous number 82290024), for Viceroy GT and other Ideal Commercial appliances.
At a glance
- Part type: Lower baffle
- Also known as COMP-LOWER-BAFFLE-82290024, 1177530
£107.75
£89.79 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 170305 is a lower baffle for Ideal Commercial boilers. It sits in the heat exchanger flueway, where it slows the passage of hot combustion gases so more heat is transferred to the water and less is lost up the flue. The baffle is listed under Ideal Commercial Boiler Spares and carries the manufacturer code 170305.
Signs this part needs replacing
- Flue gas temperatures reading higher than expected, pointing to reduced heat transfer across the exchanger.
- The boiler short cycling or struggling to hold its setpoint on a commercial load.
- Visible distortion, heavy sooting, corrosion or scale build-up on the baffle face.
- Rattling or vibration coming from the heat exchanger area during firing.
- Soot or broken baffle fragments found in the flueway or combustion chamber at service.
Before you order
- Confirm the appliance model and serial number against the compatibility list before ordering.
- Check the number on the baffle being removed; 82290024 is the previous number for this item.
- Inspect the upper baffle and any associated seals while the appliance is open, as they may need replacing at the same time.
- Isolate the appliance and let the heat exchanger cool fully before removing the baffle.
Mechanical
| Part type | Lower baffle |
|---|
Compliance
| Manufacturer part number (MPN) | 170305 |
|---|---|
| Barcode / EAN | 5022141703058 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | COMP-LOWER-BAFFLE-82290024, 82290024, 1177530 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL VICEROY GT | — | — | — | |
| IDEAL COMMERCIAL VICEROY GT10 C/W EOGB GAS HI/LOW BURNER | — | — | — | |
| IDEAL COMMERCIAL VICEROY GT10 C/W EOGB OI HI/LOW BURNER | — | — | — | |
| IDEAL COMMERCIAL VICEROY GT10 NUWAY GAS | — | — | — | |
| IDEAL COMMERCIAL VICEROY GT10 NUWAY OIL | — | — | — | |
| IDEAL COMMERCIAL VICEROY GT10 RIELLO GAS | — | — | — | |
| IDEAL COMMERCIAL VICEROY GT10 RIELLO OIL | — | — | — | |
| IDEAL COMMERCIAL VICEROY GT10 SPECIAL | — | — | — | |
| IDEAL COMMERCIAL VICEROY GT11 C/W EOGB GAS HI/LOW BURNER | — | — | — |
Showing 10 of 44 compatible appliances.
