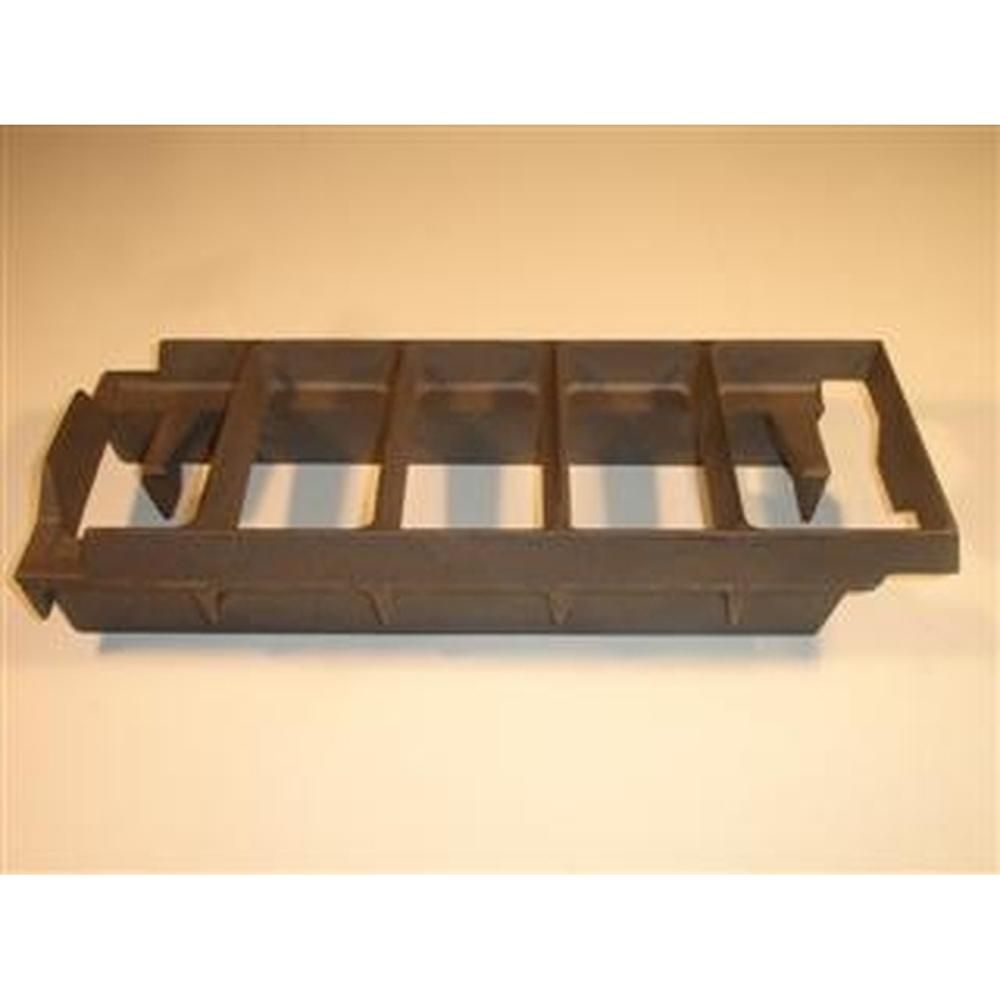

Ideal Lower Baffle 412 Lg 170147
Ideal Lower Baffle 412 Lg, part 170147, a replacement baffle for Ideal Commercial Harrier GT, GTE and GTE5 appliances.
At a glance
- Part type: Baffle (lower)
- Also known as 1777405
£146.22
£121.85 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal Lower Baffle 412 Lg is a replacement baffle plate for Ideal commercial heating appliances. It sits in the flue gas path of the heat exchanger, where it slows and redirects the hot gases so more heat is transferred to the water circuit and the metal surfaces are protected from localised overheating. This is the lower baffle in the assembly, identified by the 412 Lg designation.
Signs this part needs replacing
- Flue gas temperature readings higher than expected, with a drop in heat transfer efficiency
- Soot or carbon build-up around the baffle and flueways
- Visible distortion, corrosion, cracking or scaling on the baffle plate during inspection
- Overheating, kettling or unusual noise from the heat exchanger
- Baffle found loose, displaced or missing from its location during a service
Before you order
- Confirm the appliance model and serial number against the compatibility list before ordering
- Check the number on the existing baffle: 82190019 identifies the earlier version of this part
- This is the lower baffle - check whether the upper baffle also needs replacing at the same time
Mechanical
| Part type | Baffles |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 170147 |
|---|---|
| Barcode / EAN | 5022141701474 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 82190019, 1777405 |
| Previous numbers | 82190019 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL HARRIER GT | — | — | — | |
| IDEAL COMMERCIAL HARRIER GTE | — | — | — | |
| IDEAL COMMERCIAL HARRIER GTE5 EOGB GAS HI/LOW | — | — | — | |
| IDEAL COMMERCIAL HARRIER GTE5 EOGB GAS ON/OFF | — | — | — | |
| IDEAL COMMERCIAL HARRIER GTE5 NUWAY GAS HI/LOW | — | — | — | |
| IDEAL COMMERCIAL HARRIER GTE5 NUWAY GAS ON/OFF | — | — | — | |
| IDEAL COMMERCIAL HARRIER GTE5 NUWAY OIL HI/LOW | — | — | — | |
| IDEAL COMMERCIAL HARRIER GTE5 NUWAY OIL ON/OFF | — | — | — | |
| IDEAL COMMERCIAL HARRIER GTE5 RIELLO GAS HI/LOW | — | — | — | |
| IDEAL COMMERCIAL HARRIER GTE5 RIELLO GAS ON/OFF | — | — | — |
Showing 10 of 46 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — HARRIER GT
manualmanualIDEAL COMMERCIAL appliance manual — HARRIER GTE, HARRIER GTE5 EOGB GAS HI/LOW, HARRIER GTE5 EOGB GAS ON/OFF, HARRIER GTE5 NUWAY GAS HI/LOW, HARRIER GTE5 NUWAY GAS ON/OFF, HARRIER GTE5 NUWAY OIL HI/LOW, HARRIER GTE5 NUWAY OIL ON/OFF, HARRIER GTE5 RIELLO GAS HI/LOW, HARRIER GTE5 RIELLO GAS ON/OFF, HARRIER GTE5 RIELLO OIL HI/LOW, HARRIER GTE5 RIELLO OIL ON/OFF, HARRIER GTE5 SPECIAL, HARRIER GTE6 NUWAY GAS HI/LOW, HARRIER GTE6 NUWAY GAS ON/OFF, HARRIER GTE6 NUWAY OIL HI/LOW, HARRIER GTE6 NUWAY OIL ON/OFF, HARRIER GTE6 RIELLO GAS HI/LOW, HARRIER GTE6 RIELLO GAS ON/OFF, HARRIER GTE6 RIELLO OIL HI/LOW, HARRIER GTE6 RIELLO OIL ON/OFF, HARRIER GTE6 SPECIAL, HARRIER GTE7 EOGB GAS HI/LOW, HARRIER GTE7 EOGB GAS ON/OFF, HARRIER GTE7 NUWAY GAS HI/LOW, HARRIER GTE7 NUWAY GAS ON/OFF, HARRIER GTE7 NUWAY OIL HI/LOW, HARRIER GTE7 NUWAY OIL ON/OFF, HARRIER GTE7 RIELLO GAS ON/OFF, HARRIER GTE7 RIELLO OIL ON/OFF, HARRIER GTE7 SPECIAL, HARRIER GTE8 EOGB OIL ON/OFF, HARRIER GTE8 NUWAY GAS HI OW, HARRIER GTE8 NUWAY GAS ON/OFF, HARRIER GTE8 NUWAY OIL HI OW, HARRIER GTE8 RIELLO GAS HI/LOW, HARRIER GTE8 RIELLO OIL ON/OFF, HARRIER GTE8 SPECIAL, HARRIER GTE9 NUWAY GAS HI/LOW, HARRIER GTE9 NUWAY GAS ON/OFF, HARRIER GTE9 NUWAY OIL HI/LOW, HARRIER GTE9 RIELLO GAS HI/LOW, HARRIER GTE9 RIELLO GAS ON/OFF, HARRIER GTE9 RIELLO OIL HI/LOW, HARRIER GTE9 SPECIAL
manualNo technical questions yet for this part.
