Ideal Upper Baffle 570 Lg 170146

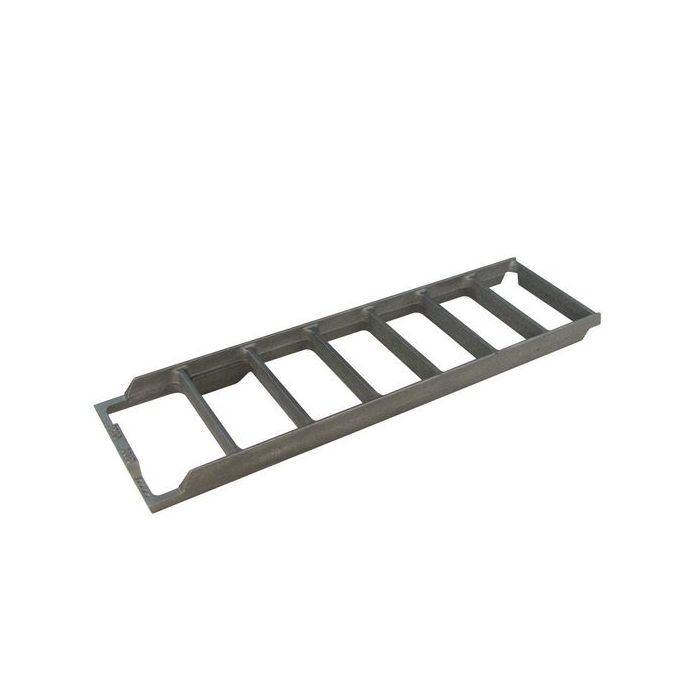

The Ideal 170146 is an upper baffle for Ideal Commercial Harrier GT and GTE series boilers. It sits in the upper flueway of the heat exchanger, where it slows the passage of hot flue gases so more heat is transferred into the water circuit before the gases leave the appliance. Baffles also shield the heat exchanger surfaces from direct flame impingement and help keep combustion temperatures within the range the boiler was designed for.

• Flue gas temperatures running higher than expected for the appliance, suggesting heat is no longer being absorbed in the flueway
• Soot, carbon or heavy discolouration around the upper heat exchanger and baffle location
• Visible distortion, cracking, corrosion or heavy scale on the baffle plate
• Combustion readings that drift out of tolerance and cannot be corrected by adjustment alone
• Rattling or vibration from the flueway, often caused by a loose or degraded baffle

• Confirm the appliance model and GC number against the compatibility list, as baffle fitment varies between Harrier variants
• Check that the upper position is the one being replaced; upper and lower baffles are separate items
• Inspect retaining clips, pins and any seals while the boiler is open, and replace them if they are worn
