Vaillant

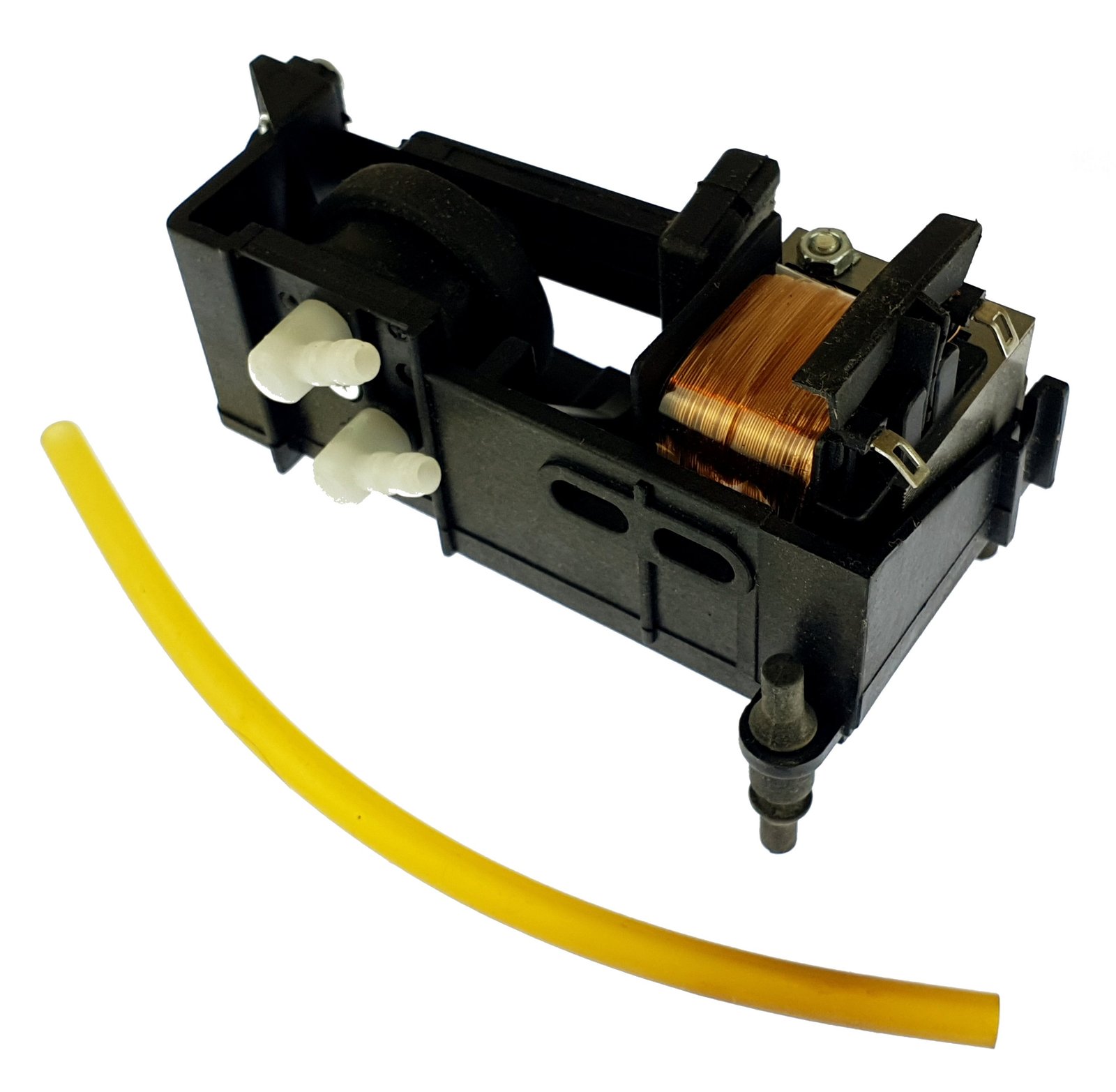

Vaillant 160108 Diaphragm Pump
At a glance
- Part type: Pump Assembly
- Also known as VAILLANT160108
£180.00
£150.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 160108 is a diaphragm pump assembly produced by Vaillant for its heating and hot water appliances. A diaphragm pump moves water by flexing an elastomer membrane inside the pump head, which draws water in on one stroke and pushes it out on the next. In an appliance hydraulic circuit this provides a steady, self-priming flow without the close tolerances of a rotary impeller pump.
Signs this part needs replacing
- Little or no water flow at the outlet while the appliance is calling for heat or hot water
- The pump runs and can be heard operating but no water is moved
- Water weeping from the pump body, head screws or inlet and outlet connections
- Flow that pulses or drops away instead of holding steady
- Increased noise or vibration from the pump area compared with normal running
Before you order
- Check the appliance model and serial plate against the compatibility list before ordering, as Vaillant uses different pump assemblies across its ranges.
- Confirm the number on the existing pump matches 160108.
- While access is open, inspect the seals and connections around the pump housing for wear or hardening.
Mechanical
| Part type | Pump Assembly |
|---|
Compliance
| Manufacturer part number (MPN) | VAILLANT160108 |
|---|---|
| GC number | 255-318 |
| Commodity code | 8413 50 20 00 |
| Alternative numbers | 4024074477649, VAILLANT160108, VAILLANT160108, VAILLANT160108, 266381652655, 43375592, 1373942 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT COMBIcompact VCW 240T (1988-1995) | 47-044-15 | 47-044-15 | — | — |
| VAILLANT COMBIcompact VCW 240XT (1995-1996) | 47-044-15 | 47-044-15 | — | — |
| VAILLANT COMBIcompact VCW 242E (1988-1995) | 47-044-13 | 47-044-13 | — | — |
| VAILLANT COMBIcompact VCW 280T (1988-1995) | 47-044-16 | 47-044-16 | — | — |
| VAILLANT COMBIcompact VCW 280XT (1995 - 1996) | 47-044-16 | 47-044-16 | — | — |
| VAILLANT COMBIcompact VCW 282E (1988-1995) | 47-044-18 | 47-044-18 | — | — |
| VAILLANT THERMOcompact VC 110T (1988-1995) | 41-044-01 | 41-044-01 | — | — |
| VAILLANT THERMOcompact VC 110XT (1995-1996) | 41-044-01 | 41-044-01 | — | — |
| VAILLANT THERMOcompact VC 112E (1988-1998) | 41-044-02 | 41-044-02 | — | — |
| VAILLANT THERMOcompact VC 142E (1988-1998) | 41-044-09 | 41-044-09 | — | — |
Showing 10 of 38 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
VAILLANT appliance manual — COMBIcompact VCW 240T (1988-1995) (GC 47-044-15), COMBIcompact VCW 240XT (1995-1996) (GC 47-044-15), COMBIcompact VCW 280T (1988-1995) (GC 47-044-16), COMBIcompact VCW 280XT (1995 - 1996) (GC 47-044-16), VCW 240T (GC 47-044-15), VCW 240XT (GC 47-044-15), VCW 280T (GC 47-044-16), VCW 280XT (GC 47-044-16)
manualmanualVAILLANT appliance manual — COMBIcompact VCW 242E (1988-1995) (GC 47-044-13), COMBIcompact VCW 282E (1988-1995) (GC 47-044-18), VCW 242E (GC 47-044-13), VCW 282E (GC 47-044-18)
manualmanualVAILLANT appliance manual — THERMOcompact VC 112E (1988-1998) (GC 41-044-02), THERMOcompact VC 142E (1988-1998) (GC 41-044-09), VC 112E (GC 41-044-02), VC 142E (GC 41-044-09)
manualmanualVAILLANT appliance manual — THERMOcompact VC 182E (1988-1996) (GC 41-044-04), THERMOcompact VC 242E (1988-1996) (GC 41-044-07), THERMOcompact VC 282E (1988-1996) (GC 41-044-10), VC 182E (GC 41-044-04), VC 242E (GC 41-044-07), VC 282E (GC 41-044-10)
manualNo technical questions yet for this part.
