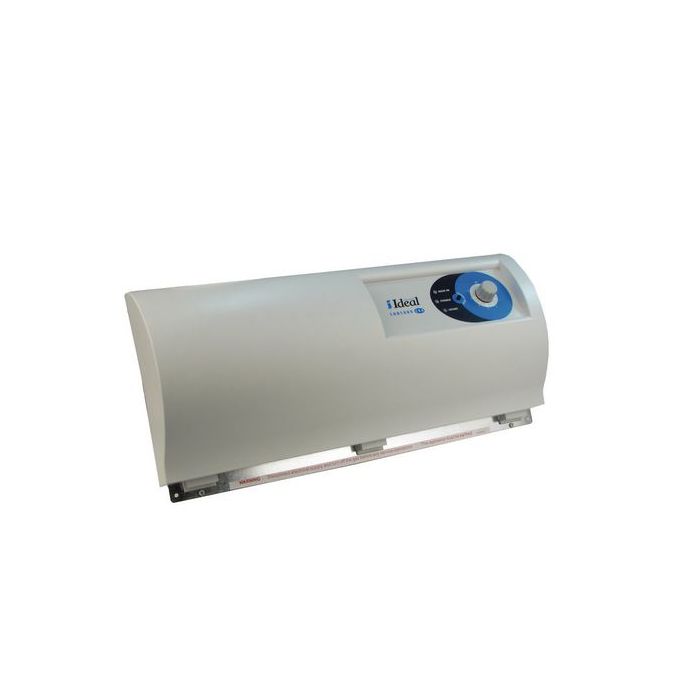

Ideal Control Box 157152
Packaged control box for Ideal Concord CXA commercial boilers, part 157152, alternative number 1177238.
At a glance
- Part type: Control box
- Also known as 1177238
£853.66
£711.38 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 157152 is a packaged control box intended for commercial boilers in the Ideal Concord CXA range. It carries the electrical control gear that governs burner sequencing, monitoring and the safety interlocks on the appliance. The unit is supplied as a complete packaged assembly so the original control box can be swapped out directly.
Signs this part needs replacing
- The boiler fails to fire and locks out without running through its normal sequence
- No response from the fan, pump or ignition on a call for heat
- Repeated lockouts that clear on reset but return shortly afterwards
- Visible burning, scorching or corrosion on the control box or its plug connections
- Erratic operation of the boiler's sequencing or safety interlocks
Before you order
- Confirm the appliance model and GC number against the compatibility list before ordering
- Check that the control box currently fitted carries the number 157152
- Cross-reference the alternative number 1177238 when working from older documentation
- Electrical control work on the appliance should be carried out by a competent engineer
Mechanical
| Part type | Control box |
|---|
Compliance
| Manufacturer part number (MPN) | 157152 |
|---|---|
| Barcode / EAN | 5022141571527 |
| Commodity code | 8537 10 98 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1177238 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CXA 100H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 110H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 120H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 40H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 50H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 60H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 70H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 80H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 90H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXAP 100H - PROPANE | — | — | — |
Showing 10 of 19 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — CONCORD CXA 100H, CONCORD CXA 110H, CONCORD CXA 120H, CONCORD CXA 40H, CONCORD CXA 50H, CONCORD CXA 60H, CONCORD CXA 70H, CONCORD CXA 80H, CONCORD CXA 90H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXAP 100H - PROPANE, CONCORD CXAP 110H - PROPANE, CONCORD CXAP 120H - PROPANE, CONCORD CXAP 40H - PROPANE, CONCORD CXAP 50H - PROPANE, CONCORD CXAP 60H - PROPANE, CONCORD CXAP 70H - PROPANE, CONCORD CXAP 80H - PROPANE, CONCORD CXAP 90H - PROPANE
manualNo technical questions yet for this part.
