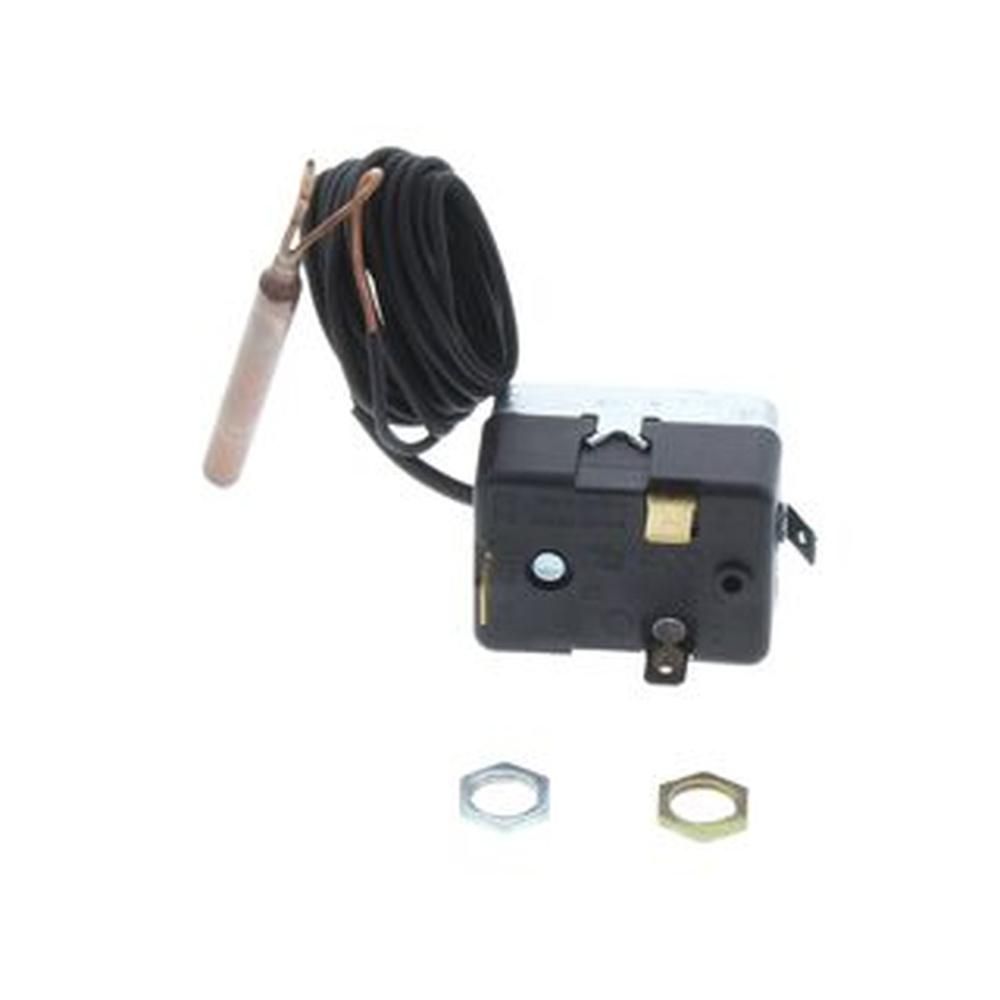

Ideal Limit Thermostat T+G 971.1-358 155791
Ideal 155791 limit thermostat for Commercial Concord CXA appliances, also listed under alternative number 1177233.
At a glance
- Part type: Limit thermostat
- Appliance family: Ideal Commercial Concord CXA
- Also known as 1177233
£71.21
£59.34 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 155791 is a limit thermostat supplied for Ideal Commercial Concord CXA appliances. It sits in the appliance's temperature control circuit and interrupts the burner when the sensed temperature rises above the set limit, protecting the heat exchanger and casing from overheating. The item is listed under the T+G 971.1-358 reference and also carries the alternative number 1177233.
Signs this part needs replacing
- The appliance locks out or shuts down shortly after firing, with a limit or overheat trip indicated.
- Repeated manual resets are needed to restore heating or hot water.
- The burner cuts out before the appliance reaches its normal operating temperature.
- Operation is intermittent and does not follow a pattern linked to the room thermostat or programmer.
- The appliance fails to respond after the limit device has tripped.
Before you order
- Match the model and GC number of your Concord CXA appliance against the compatibility list before ordering.
- Check the number printed on the existing thermostat; 1177233 may appear on older stock of the same item.
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Appliance family | Ideal Commercial Concord CXA |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 155791 |
|---|---|
| Barcode / EAN | 5022141557910 |
| Commodity code | 9032 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1177233 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CXA 100H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 110H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 120H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 40H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 50H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 60H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 70H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 80H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 90H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXAP 100H - PROPANE | — | — | — |
Showing 10 of 45 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — CONCORD CXA 100H, CONCORD CXA 110H, CONCORD CXA 120H, CONCORD CXA 40H, CONCORD CXA 50H, CONCORD CXA 60H, CONCORD CXA 70H, CONCORD CXA 80H, CONCORD CXA 90H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXAP 100H - PROPANE, CONCORD CXAP 110H - PROPANE, CONCORD CXAP 120H - PROPANE, CONCORD CXAP 40H - PROPANE, CONCORD CXAP 50H - PROPANE, CONCORD CXAP 60H - PROPANE, CONCORD CXAP 70H - PROPANE, CONCORD CXAP 80H - PROPANE, CONCORD CXAP 90H - PROPANE
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXDI 110/H, CONCORD CXDI 120/H, CONCORD CXDI 140/H, CONCORD CXDI 160/H, CONCORD CXDI 180/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXS 110/H, CONCORD CXS 120/H, CONCORD CXS 40/H, CONCORD CXS 50/H, CONCORD CXS 60/H, CONCORD CXS 70/H, CONCORD CXS 80/H, CONCORD CXS 90/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 110/H, CONCORD CXSD 120/H, CONCORD CXSD 40/H, CONCORD CXSD 50/H, CONCORD CXSD 60/H, CONCORD CXSD 70/H, CONCORD CXSD 80/H, CONCORD CXSD 90/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSI 110/H, CONCORD CXSI 120/H, CONCORD CXSI 140/H, CONCORD CXSI 160/H, CONCORD CXSI 180/H
manualNo technical questions yet for this part.
