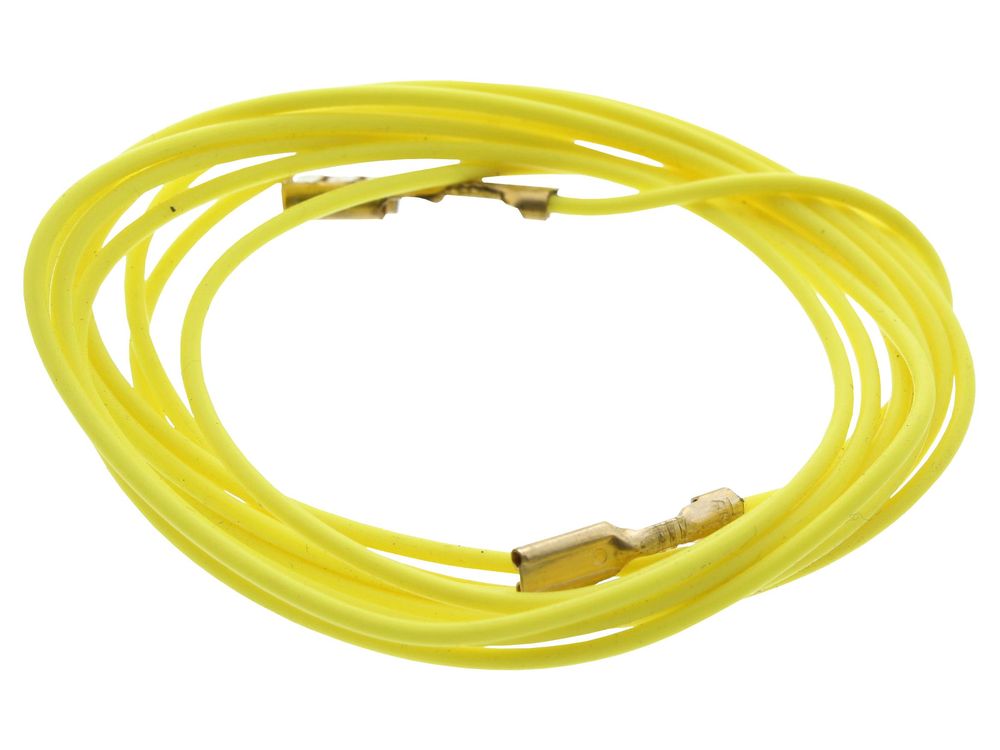

Ideal Detection Lead Assembly Cxa, part 154966, a flame detection wiring lead for Ideal Commercial Concord CXA boilers.
At a glance
- Part type: HT leads (detection lead assembly)
- Also known as 1177153
£13.69
£11.41 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal Detection Lead Assembly Cxa is a wiring lead used within Ideal Commercial Concord CXA appliances. It carries the flame detection signal from the sensing circuit back to the control board, allowing the boiler to confirm that a flame has been established and to keep running safely. The lead is supplied as an Ideal Spares component under part number 154966.
Signs this part needs replacing
- The boiler locks out or fails to fire even though the ignition electrode is sparking
- The burner lights and then shuts down because the flame signal is intermittent or lost
- Repeated lockout codes relating to flame detection or ignition
- Visible damage along the lead, such as cracked insulation, scorched sleeving or brittle conductors
- Corroded, loose or poorly crimped terminals at the electrode or control board end
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the lead suits your CXA variant.
- Confirm the exact model and fuel type, as the Concord CXA range includes natural gas and propane versions.
- Cross-reference the alternative number 1177153 if you are working from older documentation or a previous parts list.
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 154966 |
|---|---|
| Barcode / EAN | 5022141549663 |
| Commodity code | 8544 42 90 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1177153 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CXA 100H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 100P - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 110 | 41-387-85 | 41-387-85 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 110H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 120 | 41-387-86 | 41-387-86 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 120H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 40 | 41-387-78 | 41-387-78 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 40H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 40P - PROPANE | 41-387-78 | 41-387-78 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 50 | 41-387-79 | 41-387-79 | — | — |
Showing 10 of 34 compatible appliances.
