Ideal
Ideal Straight Adaptor 3/4 Inch 154925
Ideal 154925 3/4 inch straight adaptor, a fittings and fixings spare for Elise and Evo HE boilers, with GC number 796-013.
At a glance
- Part type: Adaptors and connectors
- Also known as 1177149
£10.60
£8.83 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

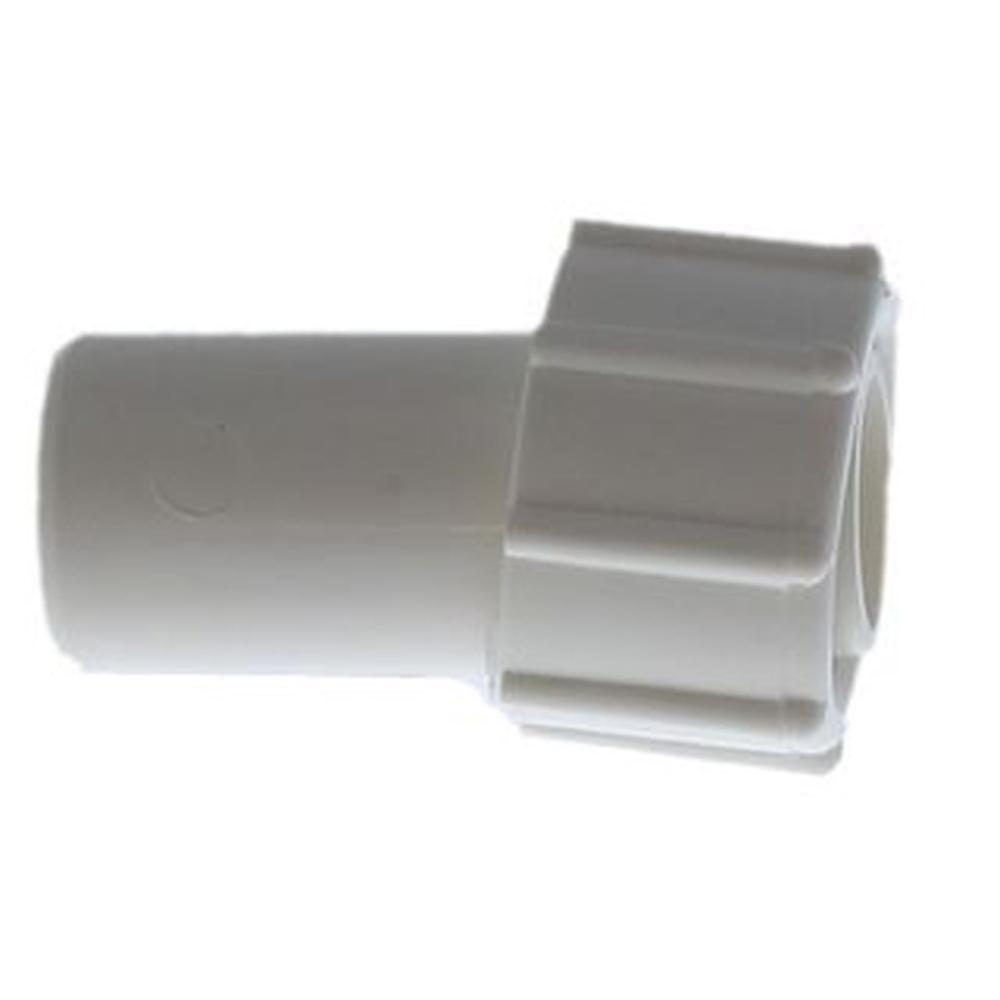

The Ideal 154925 is a 3/4 inch straight adaptor, a fitting used to make an in-line connection between pipework and a component on the appliance. It sits within Ideal's adaptors and connectors group and is supplied as a spare for the Elise and Evo HE boiler families. The adaptor carries a straight threaded connection at 3/4 inch, allowing the mating pipe or component to be joined without an elbow or offset.
Signs this part needs replacing
- Weeping or dripping at the adaptor joint, with water tracking down the pipe or fitting
- Corrosion, pitting or scale build-up on the adaptor body or threads
- Damaged or cross-threaded threads that will not pull up to a sound seal
- Repeated pressure loss traced back to the connection rather than the appliance itself
- Staining or discolouration on the casing or surrounding components below the joint
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the model.
- Match the existing fitting against part number 154925 or the alternative number 1177149 before ordering.
- Inspect the joint for a sealing washer or gasket and order a replacement if the existing one is worn or compressed.
- Confirm the connection size and orientation on the appliance, as the adaptor is a straight 3/4 inch fitting.
Mechanical
| Part type | Fittings & Fixings |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 154925 |
|---|---|
| GC number | 796-013 |
| Barcode / EAN | 5022141549250 |
| Commodity code | 7412 20 00 00 |
| Alternative numbers | 1177149 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ELISE HE15 | 41-399-97 | 41-399-97 | — | — |
| IDEAL ELISE HE24 | 41-399-98 | 41-399-98 | — | — |
| IDEAL EVO HE H12 | 41-397-96 | 41-397-96 | — | — |
| IDEAL EVO HE H16 | 41-397-86 | 41-397-86 | — | — |
| IDEAL EVO HE H19 | 41-397-93 | 41-397-93 | — | — |
| IDEAL EVO HE H22 | 41-397-94 | 41-397-94 | — | — |
| IDEAL ICOS HE12 | 41-397-95 | 41-397-95 | — | — |
| IDEAL ICOS HE15 | 41-397-83 | 41-397-83 | — | — |
| IDEAL ICOS HE18 | 41-397-84 | 41-397-84 | — | — |
| IDEAL ICOS HE24 | 41-397-85 | 41-397-85 | — | — |
Showing 10 of 12 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — ELISE HE15 (GC 41-399-97), ELISE HE24 (GC 41-399-98)
manualmanualIDEAL appliance manual — EVO HE H12 (GC 41-397-96), EVO HE H16 (GC 41-397-86), EVO HE H19 (GC 41-397-93), EVO HE H22 (GC 41-397-94)
manualmanualIDEAL appliance manual — ICOS HE12 (GC 41-397-95), ICOS HE15 (GC 41-397-83), ICOS HE18 (GC 41-397-84), ICOS HE24 (GC 41-397-85)
manualmanualIDEAL appliance manual — ICOS M3080 (GC 41-391-49)
manualNo technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
