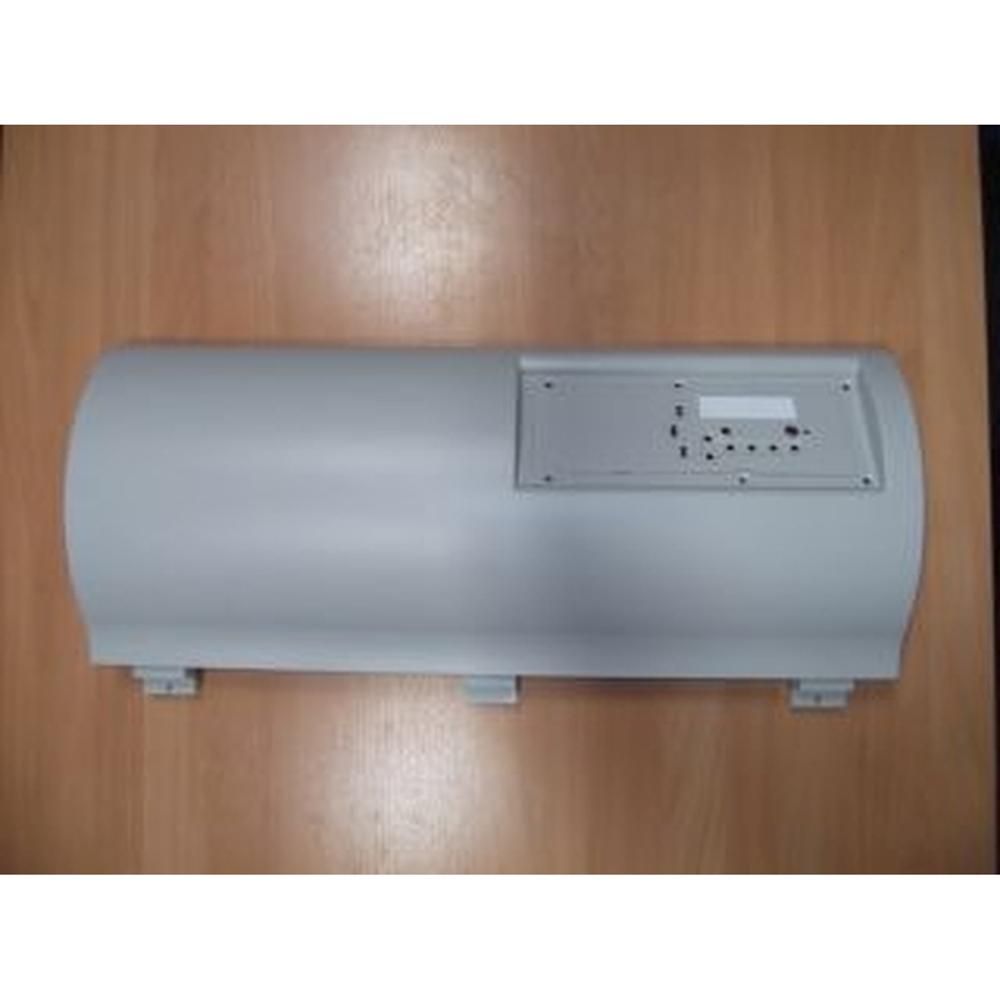

Ideal Control Box Front Panel CXA/CXS 154846
Ideal 154846 control box front panel for Concord CXA and CXS commercial appliances, covering the control box and its user controls.
At a glance
- Part type: Control box front panel
- Also known as 1177139
Showing prices
£142.24
£118.53 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 154846 is the front panel that fits to the control box on Concord CXA and CXS commercial appliances. It forms the outer face of the control box assembly, shielding the internal controls and providing the mounting surface for the user controls and indicators on the appliance fascia. It is supplied as a spare part for the Ideal Commercial Concord range.
Signs this part needs replacing
- The front panel is cracked, broken or distorted, leaving the control box internals exposed.
- Fixing points or mounting lugs are damaged so the panel no longer sits flush against the control box.
- Controls or indicators mounted on the panel are loose, misaligned or no longer operate correctly.
- Corrosion, heat marking or moisture damage is visible across the panel face.
- The panel has been removed during servicing and cannot be refitted securely.
Before you order
- Check the appliance GC number against the compatibility list to confirm the panel suits your Concord CXA or CXS model.
- Confirm the existing part number on the appliance matches 154846 or the alternative number 1177139.
- Inspect the control box fixings and any seals around the panel while access is available, and replace them if worn.
Mechanical
| Part type | Control Box, Panels & Accessories |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 154846 |
|---|---|
| Barcode / EAN | 5022141548468 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1177139 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CXA 100H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 100P - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 110 | 41-387-85 | 41-387-85 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 110H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 120 | 41-387-86 | 41-387-86 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 120H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 40 | 41-387-78 | 41-387-78 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 40H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 40P - PROPANE | 41-387-78 | 41-387-78 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 50 | 41-387-79 | 41-387-79 | — | — |
Showing 10 of 86 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL COMMERCIAL appliance manual — CONCORD CXA 100H, CONCORD CXA 110H, CONCORD CXA 120H, CONCORD CXA 40H, CONCORD CXA 50H, CONCORD CXA 60H, CONCORD CXA 70H, CONCORD CXA 80H, CONCORD CXA 90H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 100P - PROPANE, CONCORD CXA 40P - PROPANE (GC 41-387-78), CONCORD CXA 50P - PROPANE (GC 41-387-79), CONCORD CXA 60P - PROPANE (GC 41-387-80), CONCORD CXA 70P - PROPANE (GC 41-387-81), CONCORD CXA 80P - PROPANE (GC 41-387-82), CONCORD CXA 90P - PROPANE (GC 41-387-83)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 110 (GC 41-387-85), CONCORD CXA 120 (GC 41-387-86), CONCORD CXA 40 (GC 41-387-78), CONCORD CXA 50 (GC 41-387-79), CONCORD CXA 60 (GC 41-387-80), CONCORD CXA 70 (GC 41-387-81), CONCORD CXA 80 (GC 41-387-82), CONCORD CXA 90 (GC 41-387-83)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXAP 100H - PROPANE, CONCORD CXAP 110H - PROPANE, CONCORD CXAP 120H - PROPANE, CONCORD CXAP 40H - PROPANE, CONCORD CXAP 50H - PROPANE, CONCORD CXAP 60H - PROPANE, CONCORD CXAP 70H - PROPANE, CONCORD CXAP 80H - PROPANE, CONCORD CXAP 90H - PROPANE
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXDI 110, CONCORD CXDI 120, CONCORD CXDI 140, CONCORD CXDI 160, CONCORD CXDI 180
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXDI 110/H, CONCORD CXDI 120/H, CONCORD CXDI 140/H, CONCORD CXDI 160/H, CONCORD CXDI 180/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXS 110/H, CONCORD CXS 120/H, CONCORD CXS 40/H, CONCORD CXS 50/H, CONCORD CXS 60/H, CONCORD CXS 70/H, CONCORD CXS 80/H, CONCORD CXS 90/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXS 110NG, CONCORD CXS 120NG, CONCORD CXS 40NG, CONCORD CXS 50NG, CONCORD CXS 60NG, CONCORD CXS 70NG, CONCORD CXS 80NG, CONCORD CXS 90NG
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 110/H, CONCORD CXSD 120/H, CONCORD CXSD 40/H, CONCORD CXSD 50/H, CONCORD CXSD 60/H, CONCORD CXSD 70/H, CONCORD CXSD 80/H, CONCORD CXSD 90/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 110NG (GC 41-391-47), CONCORD CXSD 120NG (GC 41-391-48), CONCORD CXSD 40NG (GC 41-387-96), CONCORD CXSD 50NG (GC 41-387-97), CONCORD CXSD 60NG (GC 41-387-98), CONCORD CXSD 70NG, CONCORD CXSD 80NG (GC 41-387-99), CONCORD CXSD 90NG (GC 41-391-33)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSI 110, CONCORD CXSI 120, CONCORD CXSI 140, CONCORD CXSI 160, CONCORD CXSI 180
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSI 110/H, CONCORD CXSI 120/H, CONCORD CXSI 140/H, CONCORD CXSI 160/H, CONCORD CXSI 180/H
