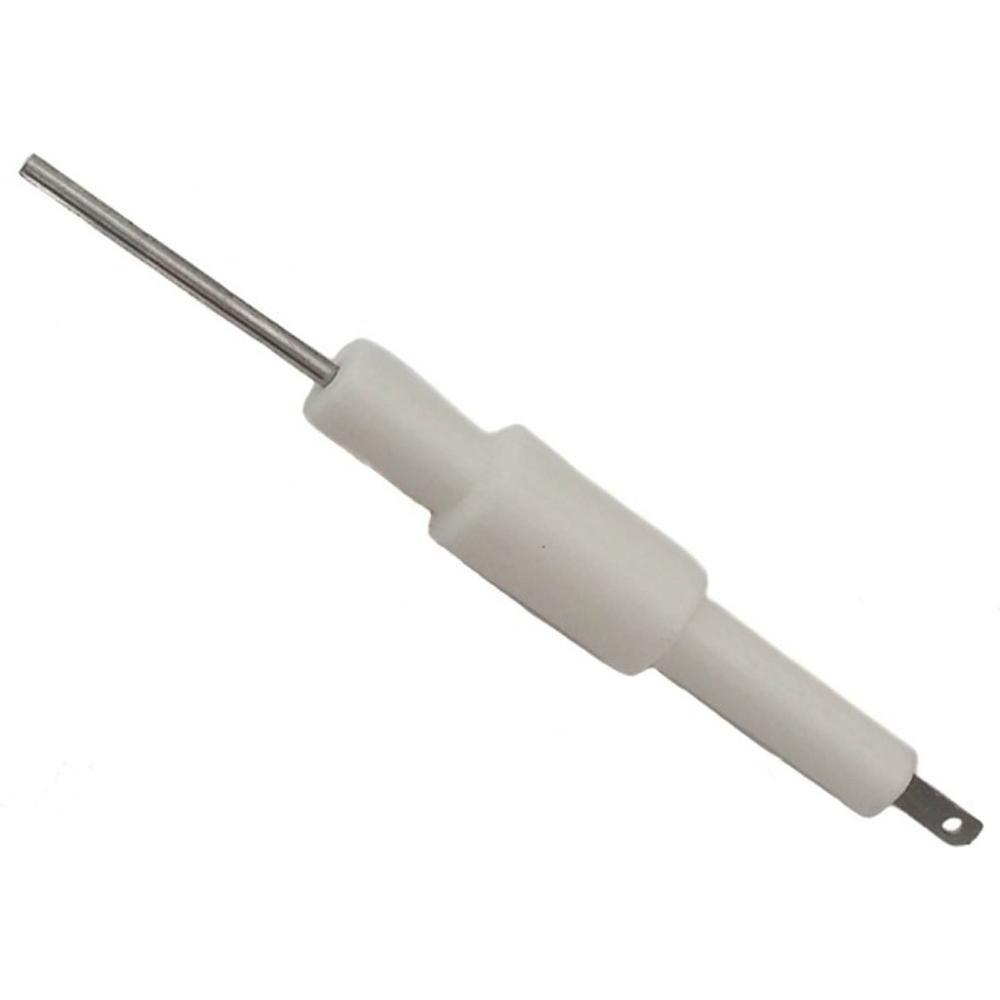

Ideal Electrode 154818

The Ideal 154818 is an electrode supplied for Ideal commercial Concord CXA boilers. It forms part of the ignition and flame-monitoring circuit inside the combustion chamber, where it provides the spark at burner start-up and helps the control board confirm that a flame has been established. The part carries the manufacturer reference 45.900.413-003 and is listed under the Electrodes & Ignitions spare part group.

• The boiler attempts to light but there is no spark at the burner, or ignition is weak and intermittent.
• The appliance locks out shortly after start-up because no flame signal is detected.
• Repeated lockouts that clear on reset and then return on the next demand for heat.
• The electrode tip is visibly burnt, eroded, sooted or bridged, or the ceramic insulator is cracked or discoloured.
• The electrode lead connection is loose, corroded or heat-damaged at the terminal.

• Check the appliance GC number and model against the compatibility list below before ordering, as several Concord CXA variants use different electrode arrangements.
• Confirm the number on the existing electrode or the boiler's parts list matches 154818, 45.900.413-003, 1177135 or N7390.
• Inspect the electrode gasket, seal and lead at the same time, as these are commonly disturbed or degraded when the electrode is removed.
• Work on the combustion chamber and ignition circuit should be carried out by a competent engineer following the manufacturer's instructions.
• This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
