Ideal Ignition Control PCB S4561B1047 154814

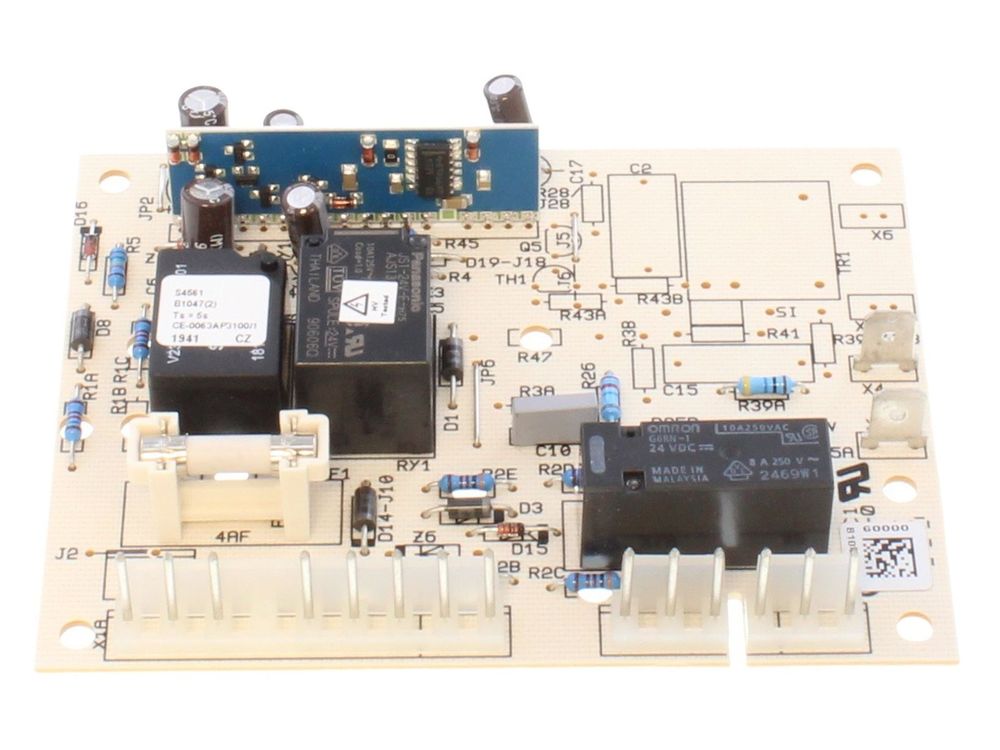

Ideal 154814 ignition control printed circuit board (S4561B1047) for Ideal Commercial Concord CXDI appliances, supporting reliable burner ignition.
At a glance
- Part type: Printed circuit board (ignition control)
- Also known as 1177132
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£208.86
£174.05 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 154814 is a printed circuit board that carries the ignition control function for the appliance it is fitted to. It manages the ignition sequence and burner proving so the unit lights and runs as intended. The board is supplied under the Ideal Spares brand and is used across the Ideal Commercial Concord CXDI range.
Signs this part needs replacing
- The burner fails to light and the appliance goes to lockout
- No spark is produced at the ignition electrode when there is a call for heat
- The appliance locks out repeatedly, clears on reset and then fails again
- Intermittent firing, nuisance shutdowns or unstable running
- Visible damage to the board, such as scorching, discoloured tracks or failed components
Before you order
- Confirm the appliance model and GC number against the compatibility list before ordering
- Check that the board reference S4561B1047 matches the unit being repaired
- Cross-reference the alternative number 1177132 when checking older stock or documentation
- Isolate the electrical supply to the appliance before removing the existing board
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 154814 |
|---|---|
| Barcode / EAN | 5022141548147 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1177132 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CXDI 110/H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 120/H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 140/H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 160/H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 180/H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXS 110/H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXS 110NG | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXS 120/H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXS 120NG | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXS 40/H | — | — | — |
Showing 10 of 40 compatible appliances.
