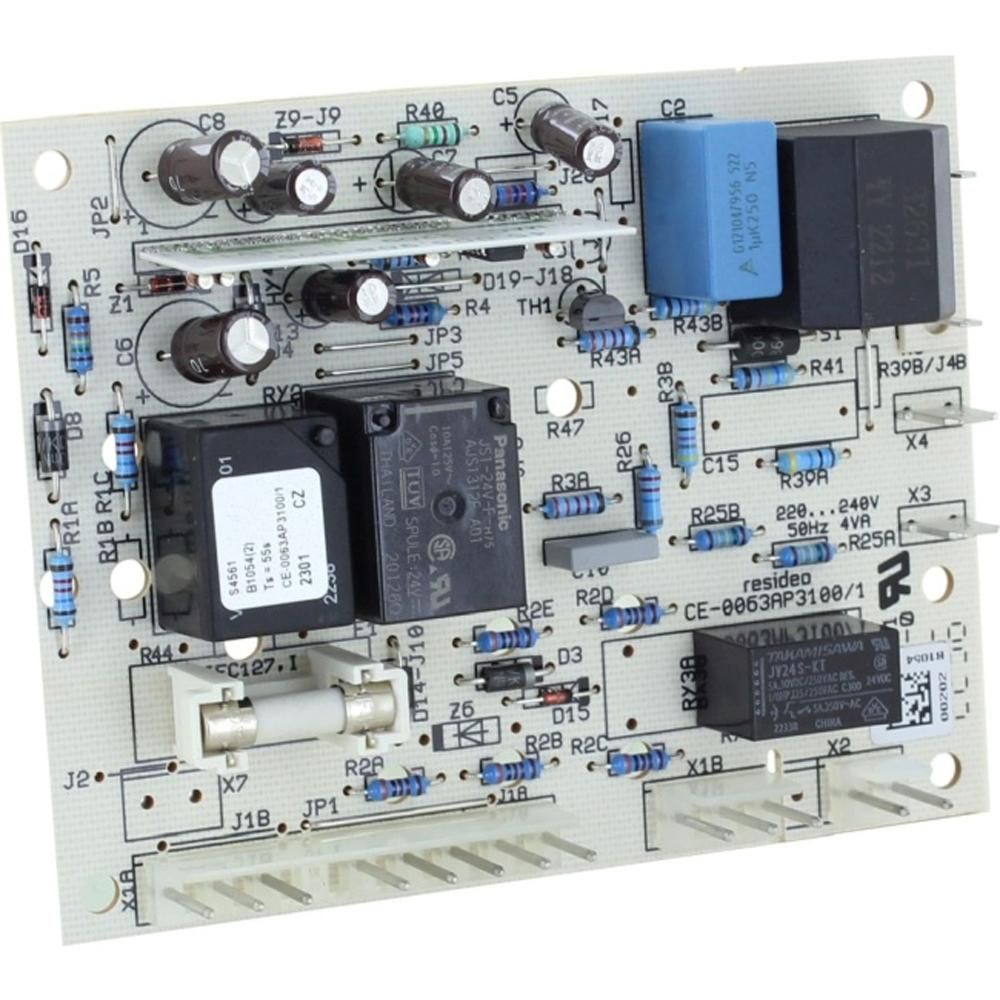

Ideal 154813 Concord Ignition Control PCB
At a glance
- Part type: Printed circuit board (PCB), ignition control
- Also known as 1177131, N2918, IDEAL154813
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£217.42
£181.18 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 154813 is a printed circuit board that provides ignition control, identified by the board code S4561B1054. It forms part of the control electronics inside the appliance and governs the ignition sequence, spark output and flame supervision so the burner lights and continues to run safely. It is supplied as an Ideal Spares PCB for Ideal domestic heating appliances.
Signs this part needs replacing
- The appliance fails to fire and drops into lockout on a call for heat or hot water
- No spark is produced at the ignition electrode when the boiler is demanded
- Ignition is intermittent, with the boiler locking out repeatedly before or after lighting
- The burner lights and then extinguishes shortly afterwards
- The appliance shows no response at all when heat or hot water is requested
Before you order
- Match the part number 154813 and the board code S4561B1054 against the markings on the existing PCB.
- Check the appliance data badge and any GC number to confirm the exact model variant.
- Inspect the ignition electrode, leads and harness plugs for damage or corrosion before fitting a replacement board.
- Isolate the electrical supply to the appliance before removing the old board.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 154813 |
|---|---|
| Commodity code | 8537 10 99 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 5022141548130, IDEAL154813, IDEAL154813, IDEAL154813, 252404463149, 43375439, 1177131, N2918 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CXA 100H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 100P - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 110 | 41-387-85 | 41-387-85 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 110H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 120 | 41-387-86 | 41-387-86 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 120H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 40 | 41-387-78 | 41-387-78 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 40H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 40P - PROPANE | 41-387-78 | 41-387-78 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 50 | 41-387-79 | 41-387-79 | — | — |
Showing 10 of 34 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL COMMERCIAL appliance manual — CONCORD CXA 100H, CONCORD CXA 110H, CONCORD CXA 120H, CONCORD CXA 40H, CONCORD CXA 50H, CONCORD CXA 60H, CONCORD CXA 70H, CONCORD CXA 80H, CONCORD CXA 90H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 100P - PROPANE, CONCORD CXA 40P - PROPANE (GC 41-387-78), CONCORD CXA 50P - PROPANE (GC 41-387-79), CONCORD CXA 60P - PROPANE (GC 41-387-80), CONCORD CXA 70P - PROPANE (GC 41-387-81), CONCORD CXA 80P - PROPANE (GC 41-387-82), CONCORD CXA 90P - PROPANE (GC 41-387-83)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 110 (GC 41-387-85), CONCORD CXA 120 (GC 41-387-86), CONCORD CXA 40 (GC 41-387-78), CONCORD CXA 50 (GC 41-387-79), CONCORD CXA 60 (GC 41-387-80), CONCORD CXA 70 (GC 41-387-81), CONCORD CXA 80 (GC 41-387-82), CONCORD CXA 90 (GC 41-387-83)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXAP 100H - PROPANE, CONCORD CXAP 110H - PROPANE, CONCORD CXAP 120H - PROPANE, CONCORD CXAP 40H - PROPANE, CONCORD CXAP 50H - PROPANE, CONCORD CXAP 60H - PROPANE, CONCORD CXAP 70H - PROPANE, CONCORD CXAP 80H - PROPANE, CONCORD CXAP 90H - PROPANE
manualNo technical questions yet for this part.
