Ideal

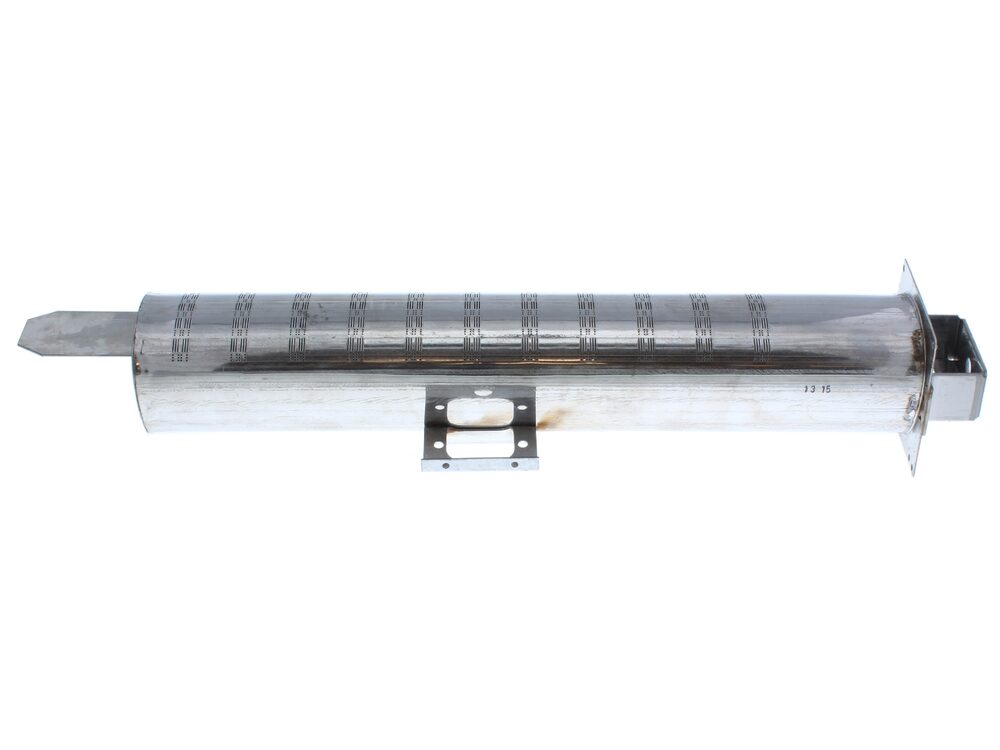

Ideal Burner Assembly Main Ignition 4 Section 150154
Ideal 150154 main ignition burner assembly for four-section Concord CX commercial appliances; a gas-carrying component for reliable ignition.
At a glance
- Part type: Burner assembly
- Also known as 1176790
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£88.46
£73.72 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 150154 is a main ignition burner assembly built for the four-section heat exchanger used across the Ideal Commercial Concord CX range. It sits in the combustion chamber and distributes the gas and air mixture across the burner head, where ignition takes place to heat the appliance waterways. Because it carries gas and forms the ignition point, it is central to stable light-up and consistent flame performance.
Signs this part needs replacing
- Repeated ignition lockouts, or a burner that will not light reliably on demand
- Delayed ignition with a noticeable pop or rough light-up
- A yellow or lazy flame where a steady blue flame is expected
- Sooting or blackening around the burner head and combustion area
- Visible cracking, distortion or corrosion on the burner body or head
Before you order
- Check the appliance GC number and model against the compatibility list; Concord CX variants differ by series and by fuel type, so confirm the exact unit before ordering.
- Confirm the part number currently fitted and any alternative number listed for the appliance.
- Check whether the burner gasket or seal needs replacing at the same time as the burner assembly.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Burner & Burner Controls |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 150154 |
|---|---|
| GC number | E58-102 |
| Barcode / EAN | 5022141501548 |
| Commodity code | 8416 20 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1176790 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CX 50 SERIES 3 | 41-387-61 | 41-387-61 | — | — |
| IDEAL COMMERCIAL CONCORD CX 50P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 60 SERIES 3 | 41-387-62 | 41-387-62 | — | — |
| IDEAL COMMERCIAL CONCORD CX 60P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 50 | 41-387-79 | 41-387-79 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 50H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 50P - PROPANE | 41-387-79 | 41-387-79 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 60 | 41-387-80 | 41-387-80 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 60H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 60P - PROPANE | 41-387-80 | 41-387-80 | — | — |
Showing 10 of 24 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — CONCORD CX 50 SERIES 3 (GC 41-387-61), CONCORD CX 50P SERIES 3 - PROPANE, CONCORD CX 60 SERIES 3 (GC 41-387-62), CONCORD CX 60P SERIES 3 - PROPANE
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 50 (GC 41-387-79), CONCORD CXA 60 (GC 41-387-80)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 50H, CONCORD CXA 60H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 50P - PROPANE (GC 41-387-79), CONCORD CXA 60P - PROPANE (GC 41-387-80)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXAP 50H - PROPANE, CONCORD CXAP 60H - PROPANE
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXC 70 SERIES 3 (GC 41-394-33)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXD 50 SERIES 3, CONCORD CXD 60 SERIES 3
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXS 50/H, CONCORD CXS 60/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXS 50NG, CONCORD CXS 60NG
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 50/H, CONCORD CXSD 60/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 50NG (GC 41-387-97), CONCORD CXSD 60NG (GC 41-387-98)
manualNo technical questions yet for this part.
