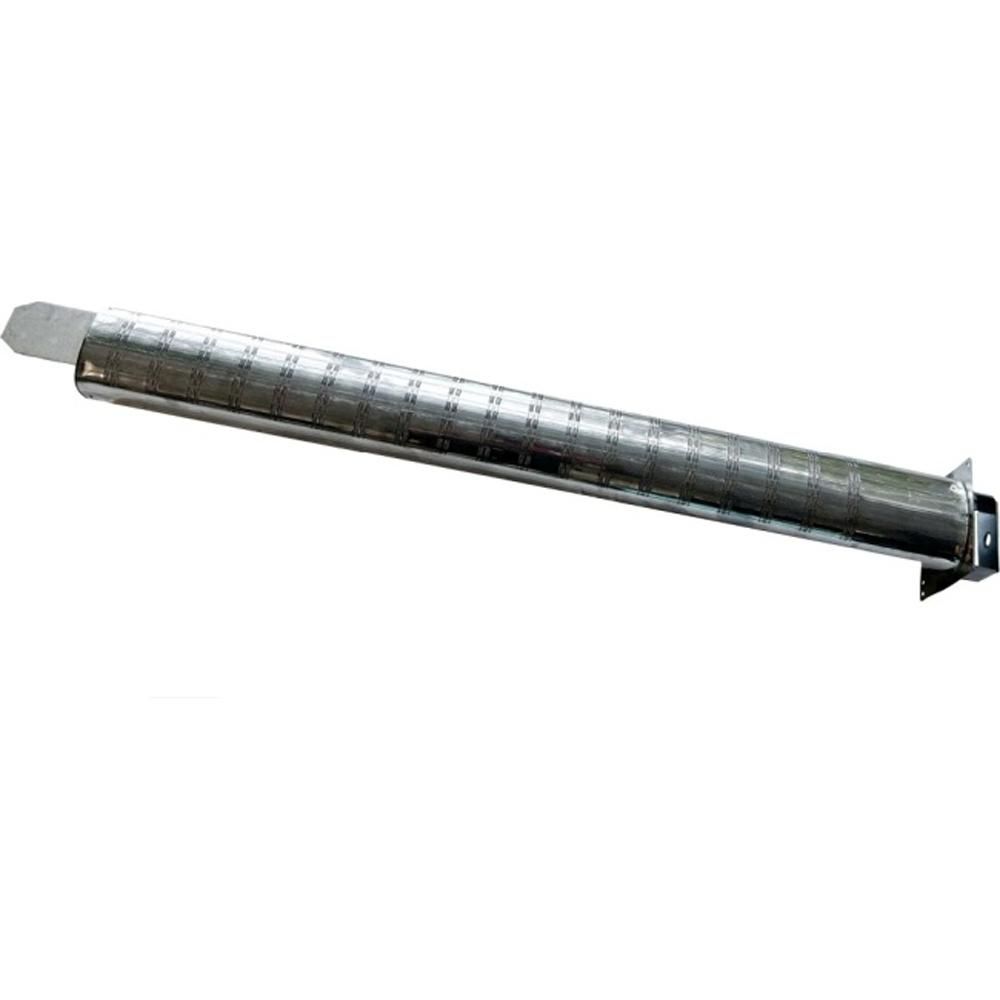

Ideal Main Burner Assembly 6 Section 150152
Ideal 150152 six-section main burner assembly for Ideal Commercial Concord CX and CXA series appliances; a gas-carrying component for registered engineers.
At a glance
- Part type: Main burner assembly, six section
- Also known as 1176788, N7895
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£108.18
£90.15 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 150152 is a six-section main burner assembly used in Ideal Commercial Concord CX and CXA series appliances. It sits in the combustion chamber and distributes the gas/air mixture across the burner sections so the appliance can fire evenly and hold a stable flame. As a gas-carrying component it is a serviceable part that is replaced when the burner surface or ports degrade.
Signs this part needs replacing
- Flame burns yellow or orange instead of a steady blue, or lifts off the burner surface
- Uneven flame across the burner sections, with some sections failing to light
- Sooting or blackening around the burner and heat exchanger
- Visible cracking, distortion, corrosion or blocked ports on the burner body
- Rising carbon monoxide readings or repeated flame-failure lockouts after servicing
Before you order
- Check the appliance GC number and serial plate against the compatibility list to confirm the correct burner variant
- Cross-check the alternative numbers 1176788 and N7895 against the part being removed
- Inspect the burner gasket and seals at the same time, as these are normally renewed when the burner is disturbed
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Burner & Burner Controls |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 150152 |
|---|---|
| Barcode / EAN | 5022141501524 |
| Commodity code | 8416 20 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1176788, N7895 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CX 100 SERIES 3 | 41-387-66 | 41-387-66 | — | — |
| IDEAL COMMERCIAL CONCORD CX 100P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 90 SERIES 3 | 41-387-65 | 41-387-65 | — | — |
| IDEAL COMMERCIAL CONCORD CX 90P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 100H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 100P - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 110 | 41-387-85 | 41-387-85 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 90 | 41-387-83 | 41-387-83 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 90H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 90P - PROPANE | 41-387-83 | 41-387-83 | — | — |
Showing 10 of 24 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — CONCORD CX 100 SERIES 3 (GC 41-387-66), CONCORD CX 100P SERIES 3 - PROPANE, CONCORD CX 90 SERIES 3 (GC 41-387-65), CONCORD CX 90P SERIES 3 - PROPANE
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 100H, CONCORD CXA 90H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 100P - PROPANE, CONCORD CXA 90P - PROPANE (GC 41-387-83)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 110 (GC 41-387-85), CONCORD CXA 90 (GC 41-387-83)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXAP 100H - PROPANE, CONCORD CXAP 90H - PROPANE
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXC 116 SERIES 3 (GC 41-394-35)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXD 90 SERIES 3
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXS 110/H, CONCORD CXS 90/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXS 110NG, CONCORD CXS 90NG
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 110/H, CONCORD CXSD 90/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 110NG (GC 41-391-47), CONCORD CXSD 90NG (GC 41-391-33)
