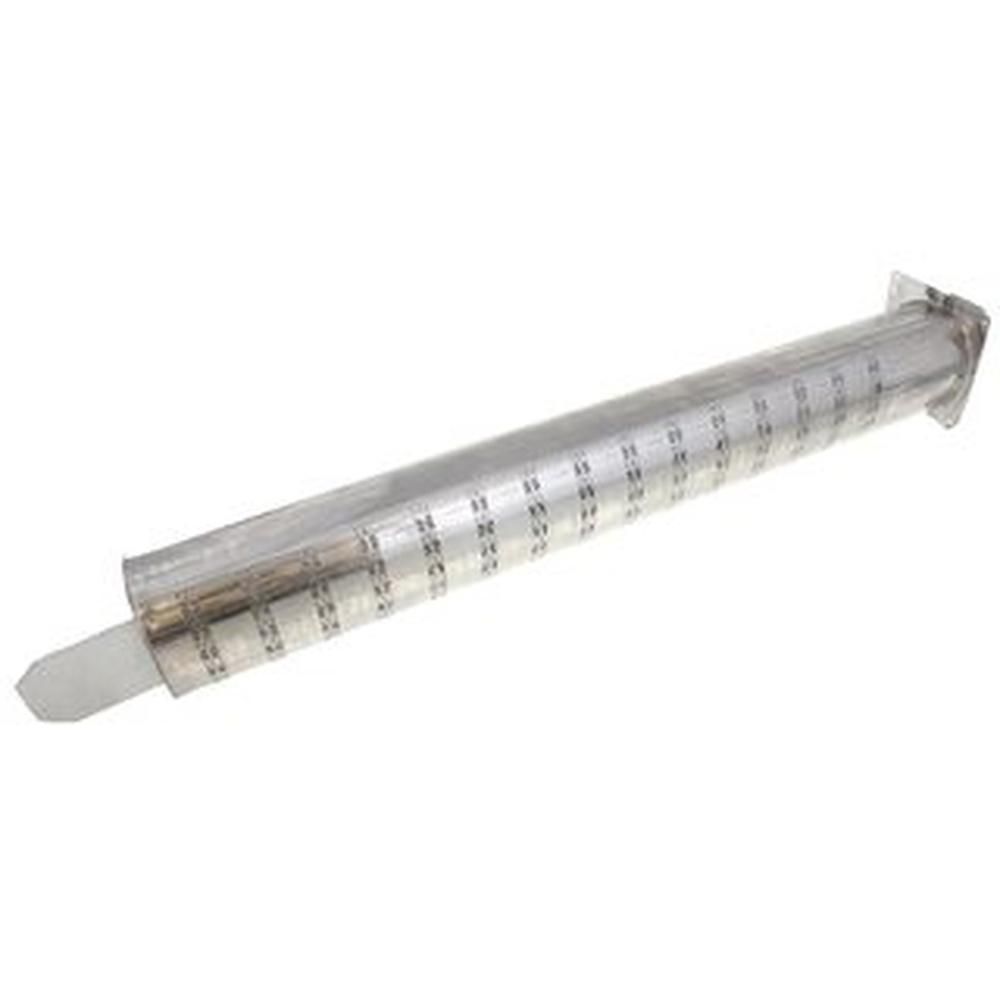

Ideal Burner Assembly 5 Section CX 150151
Ideal main burner assembly, 5 section CX, part 150151, for Concord CX and CXA commercial boilers. Gas appliance part.
At a glance
- Part type: Burner assembly, 5 section CX
- Also known as 1176787, N7503
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£93.68
£78.07 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal Main Burner 5 Section CX is a replacement main burner assembly for Ideal commercial heating appliances. It is the component that carries the flame across the combustion area, so the condition of the burner directly affects ignition, flame quality and steady heat output. This assembly is supplied under Ideal part number 150151 and is listed against the Concord CX and CXA commercial ranges.
Signs this part needs replacing
- The appliance locks out or fails to establish a flame at ignition
- A yellow, lazy or lifting flame instead of a steady blue flame
- Soot deposits or blackening around the burner or heat exchanger
- Uneven heat output or reduced performance across the burner sections
- Visible cracking, corrosion or distortion of the burner body
Before you order
- Check the GC number and appliance data plate to confirm the model matches the compatibility list below.
- Confirm the existing burner against part numbers 150151, 1176787 and N7503 before ordering.
- Check whether a burner gasket or seal is required for the appliance being worked on.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Burner & Burner Controls |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 150151 |
|---|---|
| Barcode / EAN | 5022141501517 |
| Commodity code | 8416 20 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1176787, N7503 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CX 70 SERIES 3 | 41-387-63 | 41-387-63 | — | — |
| IDEAL COMMERCIAL CONCORD CX 70P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 80 SERIES 3 | 41-387-64 | 41-387-64 | — | — |
| IDEAL COMMERCIAL CONCORD CX 80P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 70 | 41-387-81 | 41-387-81 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 70H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 70P - PROPANE | 41-387-81 | 41-387-81 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 80 | 41-387-82 | 41-387-82 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 80H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 80P - PROPANE | 41-387-82 | 41-387-82 | — | — |
Showing 10 of 24 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — CONCORD CX 70 SERIES 3 (GC 41-387-63), CONCORD CX 70P SERIES 3 - PROPANE, CONCORD CX 80 SERIES 3 (GC 41-387-64), CONCORD CX 80P SERIES 3 - PROPANE
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 70 (GC 41-387-81), CONCORD CXA 80 (GC 41-387-82)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 70H, CONCORD CXA 80H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 70P - PROPANE (GC 41-387-81), CONCORD CXA 80P - PROPANE (GC 41-387-82)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXAP 70H - PROPANE, CONCORD CXAP 80H - PROPANE
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXC 94 SERIES 3 (GC 41-394-34)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXD 70 SERIES 3, CONCORD CXD 80 SERIES 3
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXS 70/H, CONCORD CXS 80/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXS 70NG, CONCORD CXS 80NG
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 70/H, CONCORD CXSD 80/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 70NG, CONCORD CXSD 80NG (GC 41-387-99)
manualNo technical questions yet for this part.
