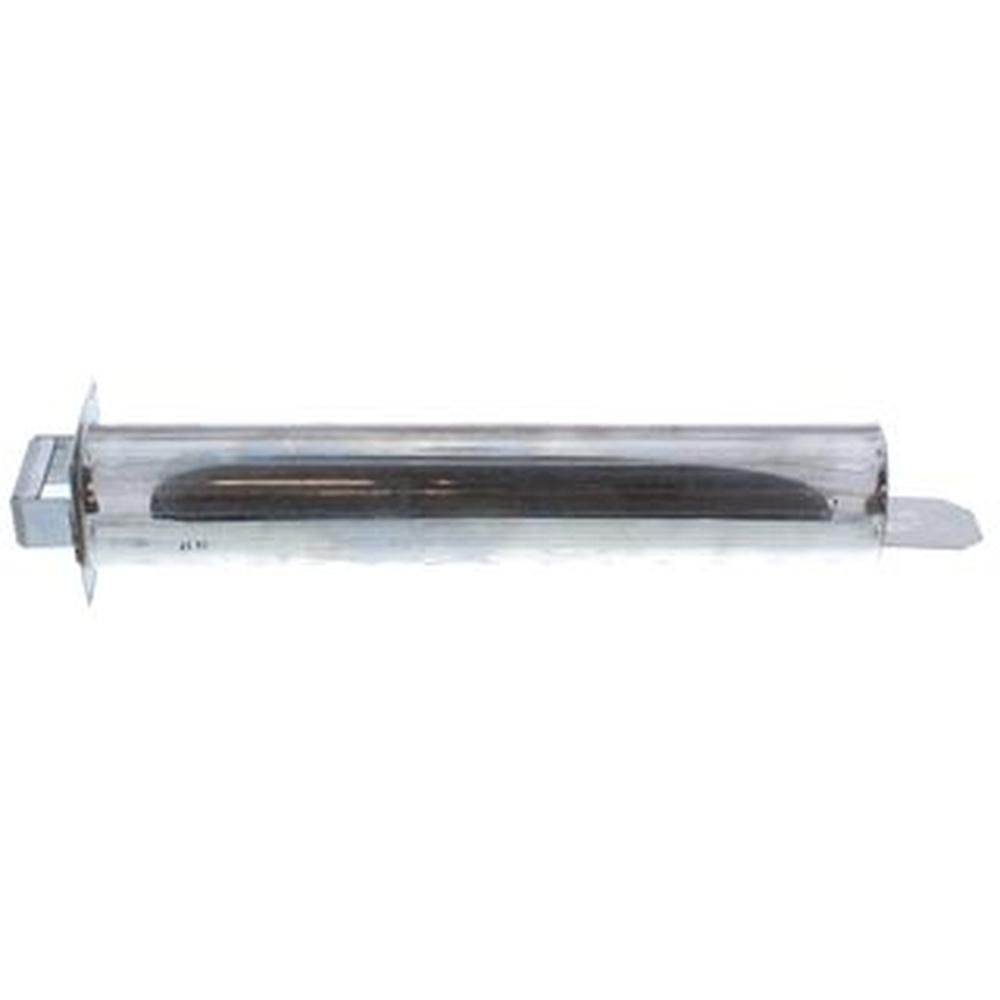

Ideal Main Burner Assembly 4 Section CX 150150
Ideal 150150 main burner assembly for Concord CX and CXA commercial boilers, a four-section gas burner unit.
At a glance
- Part type: Burner assembly
- Also known as 1176786, N7894
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£82.36
£68.63 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 150150 is a four-section main burner assembly used in Ideal commercial boilers. It sits in the combustion chamber and delivers the gas/air mixture across the burner sections, producing the flame that heats the appliance's waterways. As a gas-carrying component it is central to safe, stable combustion and to the boiler's overall efficiency.
Signs this part needs replacing
- Yellow, lazy or lifting flames instead of a steady blue flame
- Uneven flame pattern, with some burner sections not lighting or burning weakly
- Soot deposits or blackening around the burner and combustion chamber
- Repeated ignition failure or lockout on start-up
- Rising carbon monoxide readings or a failed combustion analysis
Before you order
- Check the appliance GC number and serial plate against the compatibility list, as this burner covers several Concord CX and CXA variants.
- Confirm the existing burner's section count and part number before ordering, since different outputs use different burner assemblies.
- Inspect the burner gasket and seals at the same time and replace them if they are compressed or damaged.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Burner & Burner Controls |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 150150 |
|---|---|
| GC number | E58-108 |
| Barcode / EAN | 5022141501500 |
| Commodity code | 8416 20 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1176786, N7894 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CX 50 SERIES 3 | 41-387-61 | 41-387-61 | — | — |
| IDEAL COMMERCIAL CONCORD CX 50P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 60 SERIES 3 | 41-387-62 | 41-387-62 | — | — |
| IDEAL COMMERCIAL CONCORD CX 60P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 50 | 41-387-79 | 41-387-79 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 50H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 50P - PROPANE | 41-387-79 | 41-387-79 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 60 | 41-387-80 | 41-387-80 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 60H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 60P - PROPANE | 41-387-80 | 41-387-80 | — | — |
Showing 10 of 24 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
