Ideal

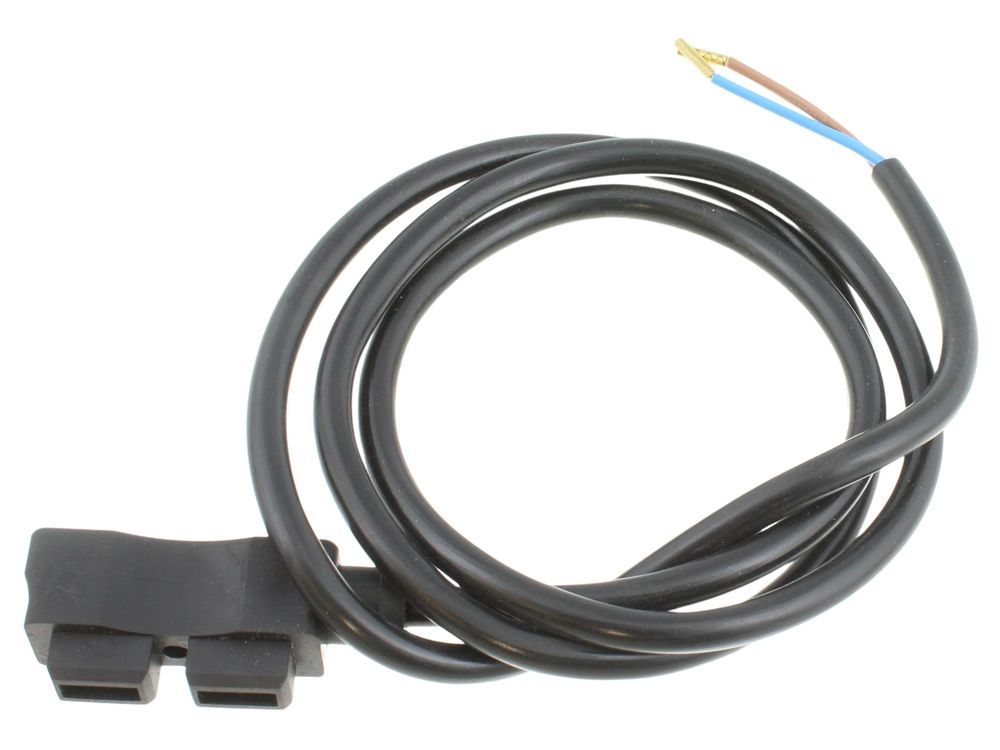

Ideal Moulded Plug and Lead CXI 139269
Moulded plug and lead for Ideal Commercial Concord CXDI appliances, Ideal part 139269, alternative number 1176713.
At a glance
- Part type: Caps, plugs and sockets
- Appliance family: Commercial Concord CXDI
- Also known as 1176713
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£16.48
£13.73 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The moulded plug and lead is an electrical connection component supplied by Ideal for its Commercial Concord CXDI range. The plug body is moulded directly onto the lead, giving a sealed, single-piece assembly that plugs into the appliance's mating socket to carry the supply to the unit. It is listed under the caps, plugs and sockets part group and is not a gas-carrying component.
Signs this part needs replacing
- Cracks, splits or heat damage visible on the moulded plug body
- Scorching, discolouration or pitting on the plug pins
- Lead insulation damaged, chafed or pulled away from the moulded body
- Intermittent power to the appliance, or the plug working loose in its socket
- Burning smell or warmth around the plug connection during operation
Before you order
- Check the appliance model and GC number against the compatibility list to confirm 139269 is the correct plug and lead for your unit.
- Note the alternative number 1176713 when cross-referencing older documentation or stock records.
- Inspect the mating socket as well as the plug; a worn socket can damage a replacement plug.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Caps, plugs and sockets |
|---|---|
| Appliance family | Commercial Concord CXDI |
Compliance
| Manufacturer part number (MPN) | 139269 |
|---|---|
| Barcode / EAN | 5022141392696 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1176713 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CXDI 110 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 110/H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 120 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 120/H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 140 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 140/H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 160 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 160/H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXS 110/H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXS 110NG | — | — | — |
Showing 10 of 27 compatible appliances.
