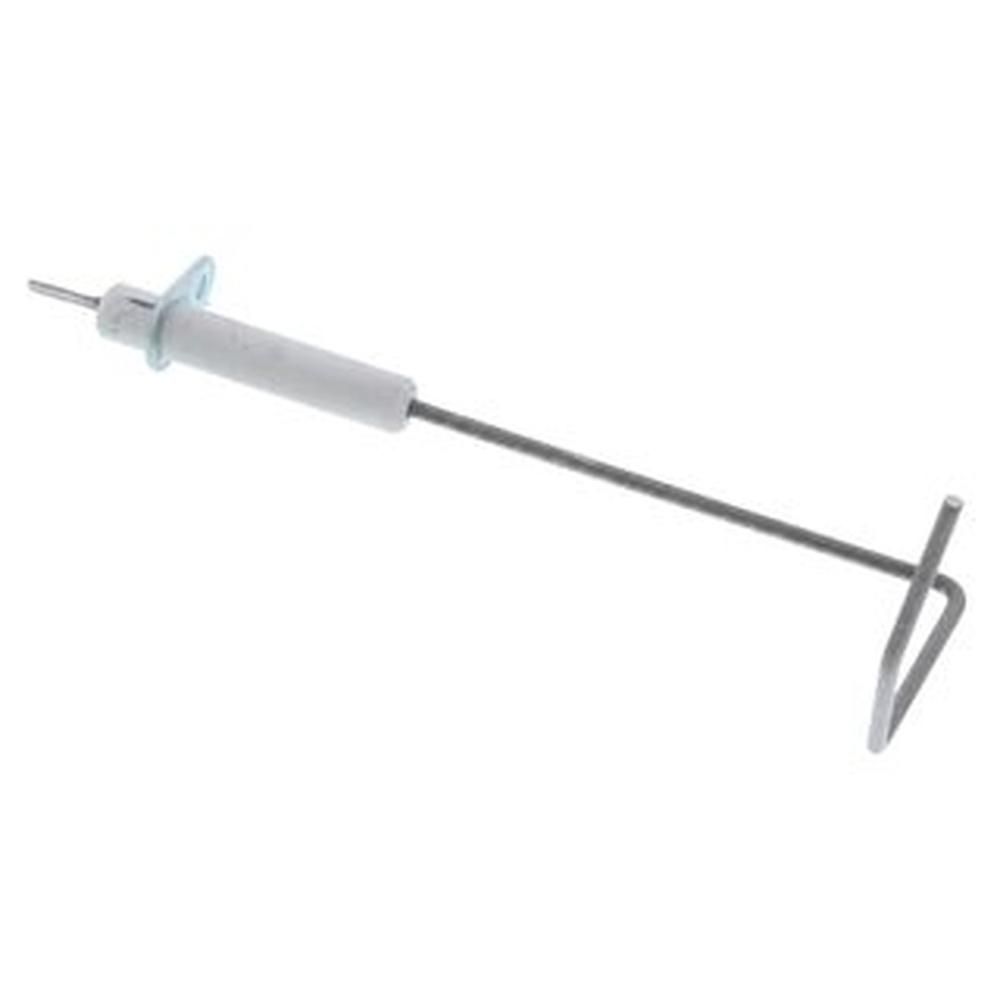

Ideal Detection Electrode 138895
Ideal 138895 detection electrode for Ideal Commercial Concord CXDI boilers, used to sense flame presence at the burner.
At a glance
- Part type: Electrodes
- Also known as 1176686
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£41.63
£34.69 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 138895 is a detection electrode manufactured by Ideal for use in Ideal Commercial Concord CXDI appliances. It sits in the combustion path and provides the flame signal that the control board uses to confirm the burner has lit and is burning safely. When the electrode or its lead degrades, the board loses that signal and shuts the appliance down.
Signs this part needs replacing
- Burner lights but the appliance locks out shortly afterwards
- Repeated lockouts on start-up with no sustained flame signal
- Intermittent shutdowns during a demand for heat or hot water
- Electrode tip visibly eroded, cracked, or coated in carbon deposits
- Ceramic insulator showing cracks or tracking marks
Before you order
- Check the appliance model and serial plate against the compatibility list to confirm the electrode suits your Concord CXDI unit
- Note the alternative number 1176686 when cross-referencing older documentation
- Inspect the electrode lead and ceramic insulator at the same time, as damage there produces the same fault symptoms
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Electrodes & Ignitions |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 138895 |
|---|---|
| Barcode / EAN | 5022141388958 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1176686 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CXDI 110 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 110/H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 120 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 120/H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 140 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 140/H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 160 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 160/H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 180 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 180/H | — | — | — |
Showing 10 of 26 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — CONCORD CXDI 110, CONCORD CXDI 120, CONCORD CXDI 140, CONCORD CXDI 160, CONCORD CXDI 180
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXDI 110/H, CONCORD CXDI 120/H, CONCORD CXDI 140/H, CONCORD CXDI 160/H, CONCORD CXDI 180/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSI 110, CONCORD CXSI 120, CONCORD CXSI 140, CONCORD CXSI 160, CONCORD CXSI 180
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSI 110/H, CONCORD CXSI 120/H, CONCORD CXSI 140/H, CONCORD CXSI 160/H, CONCORD CXSI 180/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXi 110 SERIES 2, CONCORD CXi 120 SERIES 2, CONCORD CXi 140 SERIES 2, CONCORD CXi 160 SERIES 2, CONCORD CXi 180 SERIES 2
