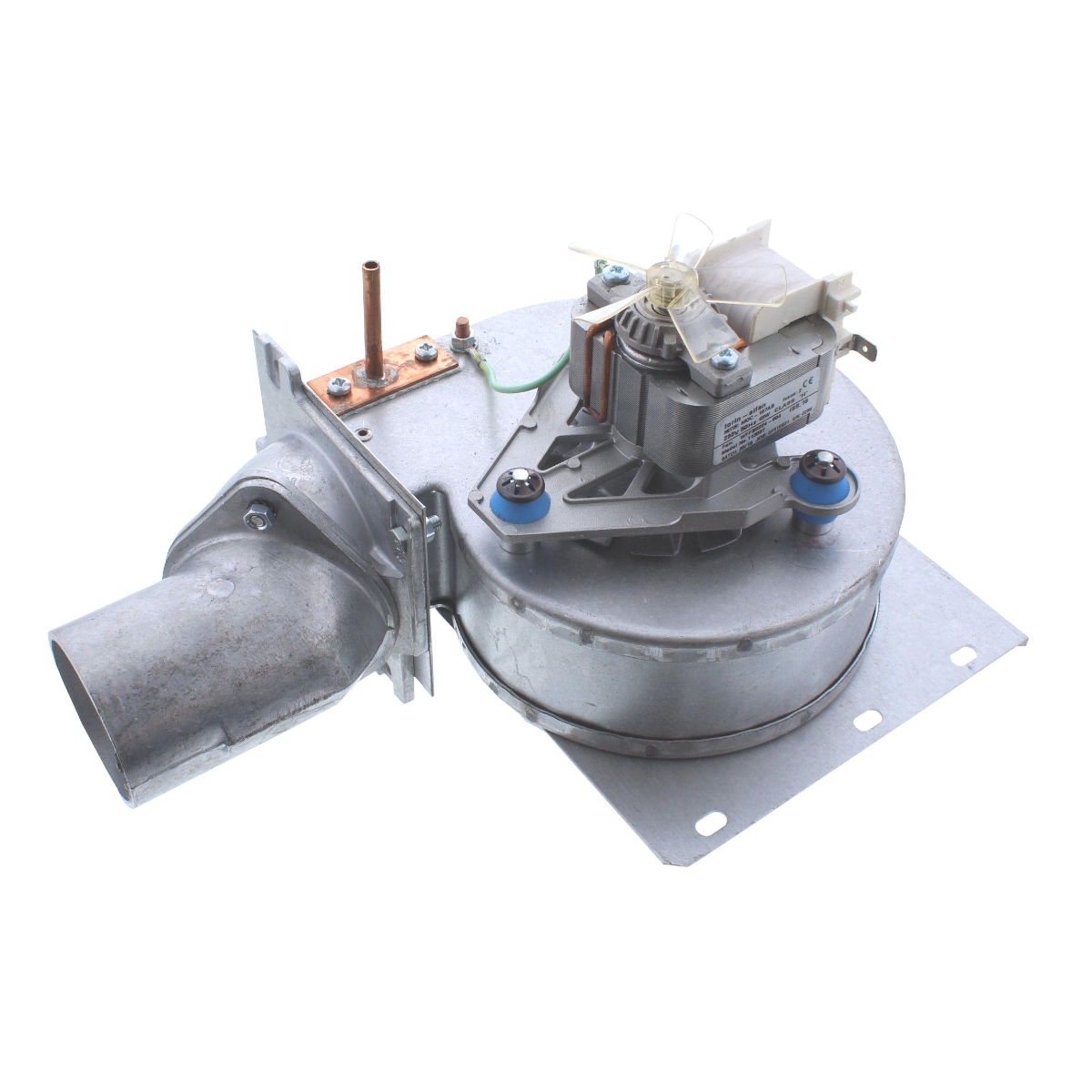

Ideal Fan Assembly NF30-80 Classic 137568
At a glance
- Part type: Fan assembly
- Also known as 1176550, N7512
£70.84
£59.03 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal fan assembly, part number 137568, is a replacement combustion fan for the Ideal Classic and Classic Combi boiler families. It sits on the combustion circuit, drawing fresh air into the combustion chamber and driving the products of combustion out to the flue at the end of the burn cycle. The boiler's safety parameters prevent gas reaching the main burner unless the fan is proving correctly, so a fan that has stopped will stop the appliance firing altogether.
Signs this part needs replacing
- The boiler will not fire and locks out on a call for heat
- The fan does not turn, or turns intermittently, when the boiler starts
- Grinding, rumbling or whining noise coming from the fan housing
- The appliance fires briefly and then shuts down
- Repeated lockouts that clear after a reset but return on the next demand
Before you order
- Check the GC number on the appliance data badge against the compatibility list before ordering.
- Confirm the fan currently fitted carries one of the alternative numbers 1176550 or N7512.
- Inspect the fan mounting gasket when the old assembly is removed and renew it if it is damaged.
Mechanical
| Part type | Fan assembly |
|---|
Compliance
| Manufacturer part number (MPN) | 137568 |
|---|---|
| GC number | 386-220 |
| Barcode / EAN | 5022141375682 |
| Commodity code | 8414 59 00 00 |
| Alternative numbers | 1176550, N7512 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC COMBI NF80 | 47-415-07 | 47-415-07 | — | — |
| IDEAL CLASSIC NF 30 | 41-429-30 | 41-429-30 | — | — |
| IDEAL CLASSIC NF 40 | 41-429-31 | 41-429-31 | — | — |
| IDEAL CLASSIC NF 50 | 41-429-32 | 41-429-32 | — | — |
| IDEAL CLASSIC NF 60 | 41-429-33 | 41-429-33 | — | — |
| IDEAL CLASSIC NF 70 | 41-429-77 | 41-429-77 | — | — |
| IDEAL CLASSIC NF 80 | 41-429-34 | 41-429-34 | — | — |
| IDEAL CLASSIC NFP 50 | — | — | — | |
| IDEAL CLASSIC NFP 60 | — | — | — | |
| IDEAL CLASSIC NFP 80 | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — CLASSIC COMBI NF80 (GC 47-415-07)
manualmanualIDEAL appliance manual — CLASSIC NF 30 (GC 41-429-30), CLASSIC NF 40 (GC 41-429-31), CLASSIC NF 50 (GC 41-429-32), CLASSIC NF 60 (GC 41-429-33), CLASSIC NF 70 (GC 41-429-77), CLASSIC NF 80 (GC 41-429-34)
manualmanualIDEAL appliance manual — CLASSIC NFP 50, CLASSIC NFP 60, CLASSIC NFP 80
manualNo technical questions yet for this part.
