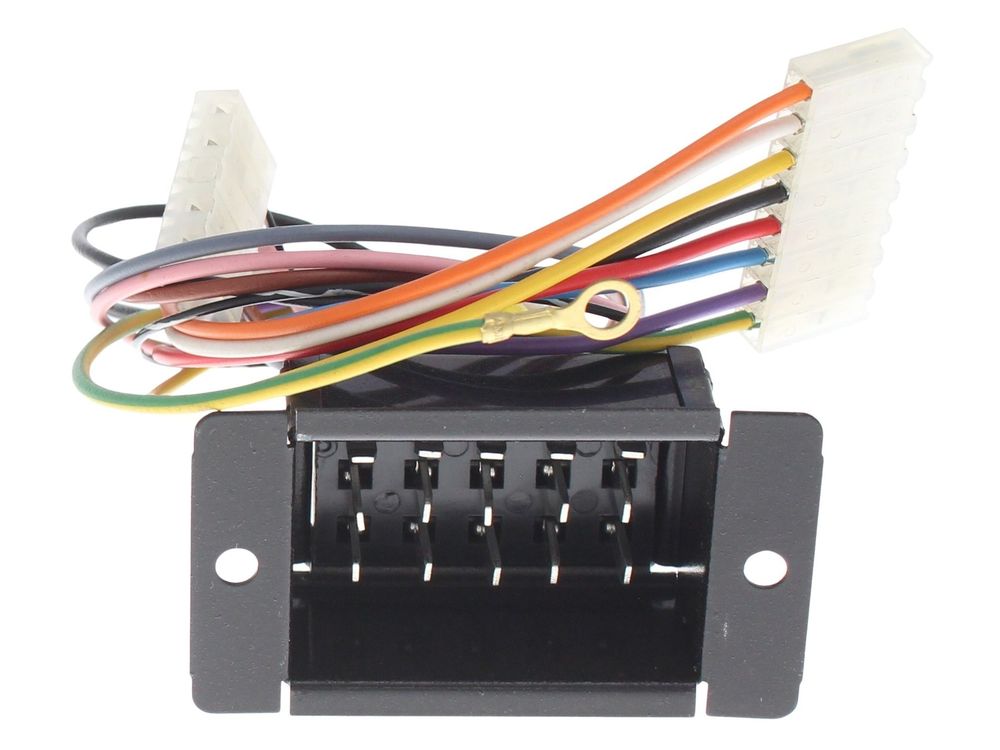

Ideal Plug Assembly 15-Way 134454
Ideal 134454 15-way plug assembly for Ideal Commercial boiler wiring looms, fitting Super Plus and Module Super Plus DBI models.
At a glance
- Part type: Wiring plug assembly
- Appliance family: Ideal Commercial
- Also known as 1176230
£168.29
£140.24 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 134454 is a 15-way plug assembly used in the wiring looms of Ideal Commercial boilers. It forms the multi-pin connection between the harness and the control components it serves, carrying low-voltage signals and supply across fifteen terminals. As a wiring-side component it sits within the Ideal Commercial spares range and is matched to the Super Plus family of appliances.
Signs this part needs replacing
- Boiler fails to fire or drops out intermittently with no obvious mechanical cause
- Fault codes relating to the control or wiring circuit appear and clear at random
- Visible scorching, discolouration or melting on the plug body or terminal housing
- Corroded, bent or retracted pins inside the plug
- Loom connection works loose or needs to be held in position to keep the appliance running
Before you order
- Check the GC number and serial plate on the appliance to confirm the model before ordering
- Confirm the existing plug is a 15-way type and compare the terminal layout with the original
- Note the alternative number 1176230 when cross-referencing against older documentation
- Work on the appliance wiring should be carried out by a competent engineer, with the supply isolated first
Mechanical
| Part type | Wiring plug assembly |
|---|---|
| Appliance family | Ideal Commercial |
| Connection | 15-way |
Compliance
| Manufacturer part number (MPN) | 134454 |
|---|---|
| Barcode / EAN | 5022141344541 |
| Commodity code | 8536 69 10 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1176230 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL IDEAL SUPER PLUS | — | — | — | |
| IDEAL COMMERCIAL MODULE SUPER PLUS DBI | — | — | — | |
| IDEAL COMMERCIAL SUPER PLUS 200/2 | — | — | — | |
| IDEAL COMMERCIAL SUPER PLUS 200/2 DBI | 41-415-68 | 41-415-68 | — | — |
| IDEAL COMMERCIAL SUPER PLUS 200/S | 41-415-68 | 41-415-68 | — | — |
| IDEAL COMMERCIAL SUPER PLUS 300/3 | — | — | — | |
| IDEAL COMMERCIAL SUPER PLUS 300/3 ALT | — | — | — | |
| IDEAL COMMERCIAL SUPER PLUS 300/3 AT | 41-415-69 | 41-415-69 | — | — |
| IDEAL COMMERCIAL SUPER PLUS 300/3 DBI | 41-415-69 | 41-415-69 | — | — |
Showing 10 of 15 compatible appliances.
