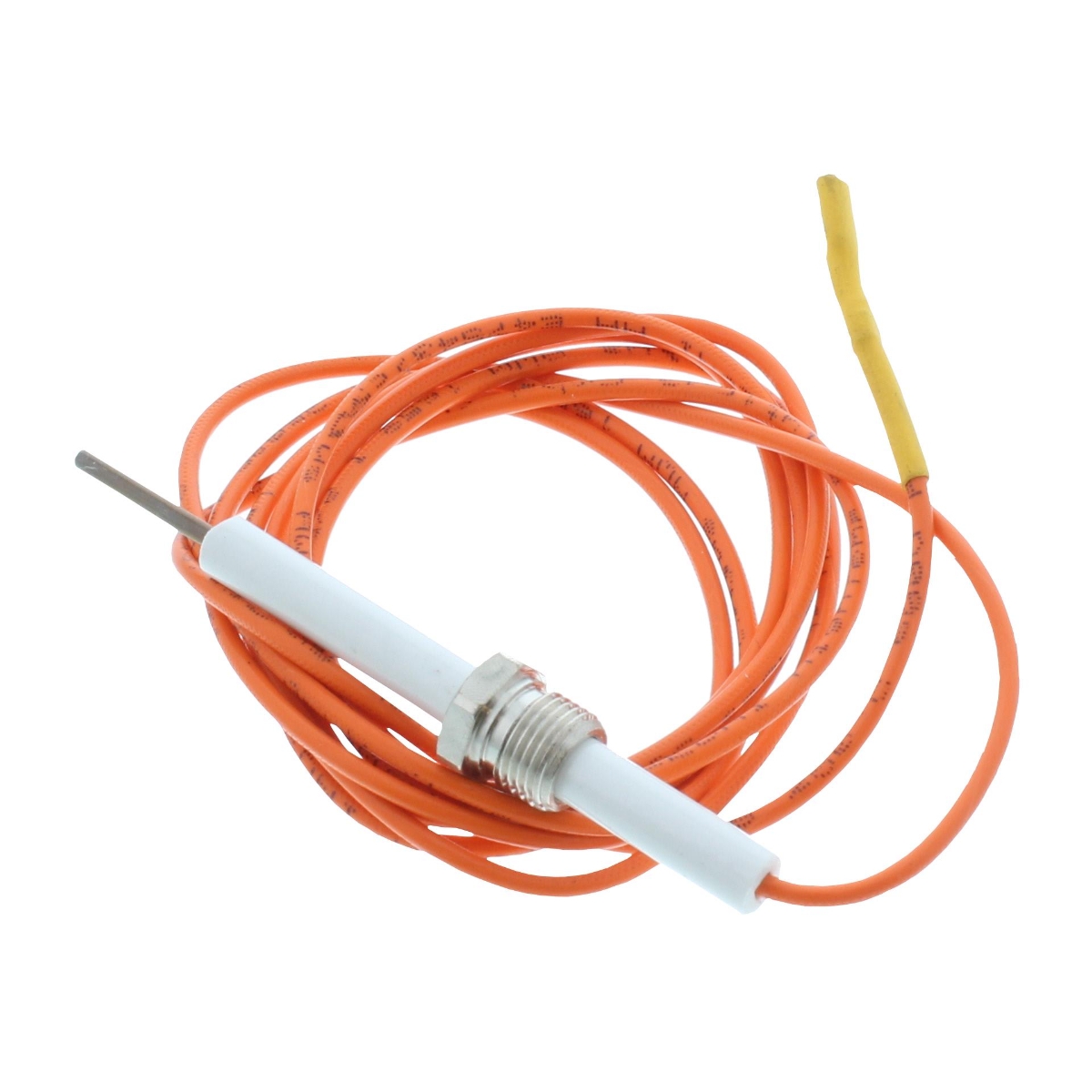

Ideal Electrode Assembly Kit 130947

The Ideal Electrode Assembly Kit 130947 is a combined ignition and flame sensing electrode set for Ideal Commercial gas appliances. The ignition electrode produces the spark that lights the burner, while the flame sensing electrode monitors the presence of a flame and signals the control board to keep the gas valve open. Both functions sit in the combustion path, so the electrodes are exposed to heat, moisture and repeated ignition cycles throughout their service life.

This kit is supplied by Ideal for the Commercial Concord CX range and is identified by GC number 790-030.

• The burner fails to light and the appliance locks out on repeated ignition attempts
• No visible spark at the electrode when the ignition sequence runs
• The appliance lights but shuts down shortly afterwards because no flame signal is detected
• Intermittent lockouts or nuisance shutdowns during normal operation
• Visible damage to the electrode tip, ceramic insulator or lead, such as cracking, sooting or corrosion

• Check the appliance GC number and model against the compatibility list before ordering, as the Concord CX range covers several outputs and gas types
• Confirm the existing electrode arrangement matches this kit, since ignition and flame sensing electrodes are supplied together
• This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
