Vokera

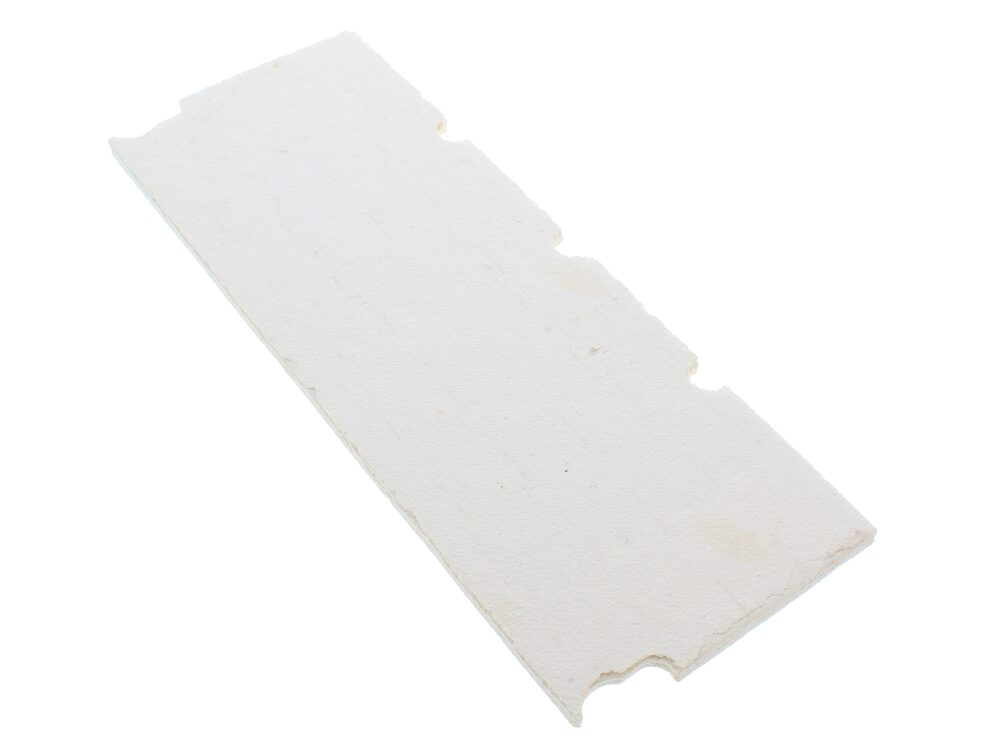

Vokera Front Insulation Panel 1193
Front insulation panel for Vokera Hydra, Pinnacle and Eclipse gas boilers, fitted to the casing.
At a glance
- Part type: front insulation panel
- Also known as 1531007
£33.28
£27.73 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vokera 1193 is a front insulation panel used on Vokera Hydra, Pinnacle and Eclipse gas boilers. It sits at the front of the appliance as part of the casing assembly, providing the thermal insulation layer behind the front casing panel. It supersedes the earlier code 8888.
Signs this part needs replacing
- Visible heat damage, scorching or discolouration on the panel face
- Insulation material crumbling, flaking or breaking away from the panel
- Panel warped, cracked or no longer sitting flat against the casing
- Moisture staining or damp insulation material behind the front casing
- Exposed casing area where the insulation layer has degraded
Before you order
- Confirm the boiler model and GC number against the fitment list above
- Check the existing panel for a part number marking before removal
- Inspect the casing fixings and seals at the same time, as these are disturbed during replacement
- Isolate the appliance and follow the manufacturer's instructions for casing removal and refitting
Compliance
| GC number | 793-498 |
|---|---|
| Alternative numbers | 1531007 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VOKERA ECLIPSE 216 ESS | 41-094-19 | 41-094-19 | — | — |
| VOKERA ECLIPSE 226 ESS | 41-094-20 | 41-094-20 | — | — |
| VOKERA ECLIPSE ESC | 47-094-24 | 47-094-24 | — | — |
| VOKERA HYDRA | 47-094-36 | 47-094-36 | — | — |
| VOKERA HYDRA 26 LPG | 47-094-37 | 47-094-37 | — | — |
| VOKERA HYDRA 26 NG | 47-094-36 | 47-094-36 | — | — |
| VOKERA PINNACLE 16 | 41-094-23 | 41-094-23 | — | — |
| VOKERA PINNACLE 16 LPG | 41-094-25 | 41-094-25 | — | — |
| VOKERA PINNACLE 26 | 41-094-24 | 41-094-24 | — | — |
| VOKERA PINNACLE 26 LPG | 41-094-26 | 41-094-26 | — | — |
Showing 10 of 11 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
VOKERA appliance manual — ECLIPSE 216 ESS (GC 41-094-19), ECLIPSE 226 ESS (GC 41-094-20)
manualmanualVOKERA appliance manual — ECLIPSE ESC (GC 47-094-24)
manualmanualVOKERA appliance manual — HYDRA (GC 47-094-36), HYDRA 26 LPG (GC 47-094-37), HYDRA 26 NG (GC 47-094-36)
manualmanualVOKERA appliance manual — PINNACLE 16 (GC 41-094-23), PINNACLE 16 LPG (GC 41-094-25), PINNACLE 26 (GC 41-094-24), PINNACLE 26 LPG (GC 41-094-26)
manualNo technical questions yet for this part.
