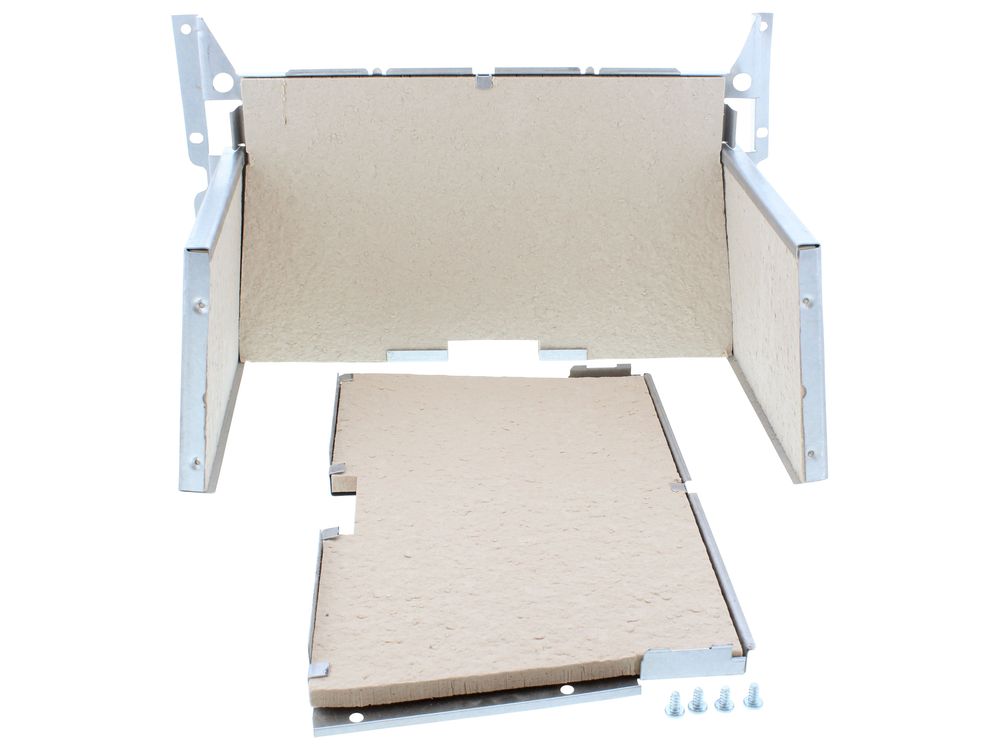

Vaillant Combustion Chamber 117545
Vaillant 117545 combustion chamber for Thermocompact, Turbomax Plus and Turbomax Pro boilers in the 28-36kW range.
At a glance
- Also known as 1373566
- Work on the combustion chamber must be carried out by a Gas Safe registered engineer
Showing prices
£147.86
£123.22 ex. VAT · VAT at 20%
Available to order · 7 working days
Available to order · 7 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 117545 is a combustion chamber used across the Thermocompact, Turbomax Plus and Turbomax Pro boiler families. It encloses the burner and combustion zone, containing the flame and directing flue products towards the heat exchanger. It is listed for 28-36kW appliances.
Signs this part needs replacing
- Visible cracking, distortion or heat damage to the chamber walls
- Heavy sooting or carbon build-up inside the combustion zone
- Corrosion or perforation that could allow flue products to escape
- Persistent combustion faults or lockouts after burner servicing
- A CO alarm activation or evidence of spillage around the combustion area
Before you order
- Confirm the model and variant on the boiler data badge, including any R revision suffix
- Check the appliance kW rating falls within the 28-36kW range this chamber is listed for
- Verify the existing chamber carries the same part number before removal
- Work on the combustion chamber must be carried out by a Gas Safe registered engineer
Compliance
| Barcode / EAN | 4024074413111 |
|---|---|
| Alternative numbers | 1373566 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT THERMOcompact 628E VU 282-5 (2000-2001) | 41-044-26 | 41-044-26 | — | — |
| VAILLANT THERMOcompact 628E VU 282/2-5 (2001-2002) | 41-044-26 | 41-044-26 | — | — |
| VAILLANT THERMOcompact 628E VU 282/2-5 R1 (2002-2003) | 41-044-26 | 41-044-26 | — | — |
| VAILLANT THERMOcompact 628E VU 282/2-5 R2 (2003-2004) | 41-044-26 | 41-044-26 | — | — |
| VAILLANT THERMOcompact 628E VU 282/2-5 R3 (2004-2006) | 41-044-26 | 41-044-26 | — | — |
| VAILLANT THERMOcompact 637E VU 362/2-5 (2002-2004) | 41-044-32 | 41-044-32 | — | — |
| VAILLANT THERMOcompact 637E VU 362/2-5 R3 (2004-2006) | 41-044-32 | 41-044-32 | — | — |
| VAILLANT TURBOmax Plus 828E VUW 282-5 (2000-2001) | 47-044-09 | 47-044-09 | — | — |
| VAILLANT TURBOmax Plus 828E VUW 282/2-5 (2001-2002) | 47-044-09 | 47-044-09 | — | — |
| VAILLANT TURBOmax Plus 828E VUW 282/2-5 R1 (2002-2002) | 47-044-09 | 47-044-09 | — | — |
Showing 10 of 43 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
VAILLANT appliance manual — THERMOcompact 628E VU 282/2-5 (2001-2002) (GC 41-044-26), THERMOcompact 628E VU 282/2-5 R1 (2002-2003) (GC 41-044-26), THERMOcompact 628E VU 282/2-5 R2 (2003-2004) (GC 41-044-26), THERMOcompact 628E VU 282/2-5 R3 (2004-2006) (GC 41-044-26), THERMOcompact 637E VU 362/2-5 (2002-2004) (GC 41-044-32), THERMOcompact 637E VU 362/2-5 R3 (2004-2006) (GC 41-044-32), TURBOmax Plus 828E VUW 282/2-5 (2001-2002) (GC 47-044-09), TURBOmax Plus 828E VUW 282/2-5 R1 (2002-2002) (GC 47-044-09), TURBOmax Plus 828E VUW 282/2-5 R2 (2003-2004) (GC 47-044-09), TURBOmax Plus 828E VUW 282/2-5 R3 (2004-2004) (GC 47-044-09), TURBOmax Plus 836E VUW 362/2-5 (2002-2004) (GC 47-044-28), TURBOmax Plus 836E VUW 362/2-5 R3 (2004-2004) (GC 47-044-28), TURBOmax Plus 837E VUW 362/2-5 (2002-2004) (GC 47-044-28), TURBOmax Plus 837E VUW 362/2-5 R3 (2004-2004) (GC 47-044-28), VU 282/2-5 (GC 41-044-26), VU 282/2-5 R1 (GC 41-044-26), VU 282/2-5 R2 (GC 41-044-26), VU 282/2-5 R3 (GC 41-044-26), VU 362/2-5 (GC 41-044-32), VU 362/2-5 R3 (GC 41-044-32), VUW 282/2-5 (GC 47-044-09), VUW 282/2-5 R1 (GC 47-044-09), VUW 282/2-5 R2 (GC 47-044-09), VUW 282/2-5 R3 (GC 47-044-09), VUW 362/2-5 (GC 47-044-28), VUW 362/2-5 R3 (GC 47-044-28)
manualmanualVAILLANT appliance manual — TURBOmax Pro 28E VUW 282-3 (2000-2001) (GC 47-044-11), TURBOmax Pro 28E VUW 282/2-3 R1 (2002-2002) (GC 47-044-11), TURBOmax Pro 28E VUW 282/2-3 R2 (2003-2004) (GC 47-044-11), TURBOmax Pro 28E VUW 282/2-3 R3 (2004-2004) (GC 47-044-11), VUW 282/2-3 R1 (GC 47-044-11), VUW 282/2-3 R2 (GC 47-044-11), VUW 282/2-3 R3 (GC 47-044-11)
manualmanualVAILLANT appliance manual — TURBOmax Pro 28E VUW 282/2-3 (2001-2002) (GC 47-044-11), VUW 282/2-3 (GC 47-044-11)
manualmanualVAILLANT appliance manual — VUI 362-7 (GC 47-044-29), VUI 362-7 R3 (GC 47-044-29), aquaPLUS VUI 362-7 (2002-2005) (GC 47-044-29), aquaPLUS VUI 362-7 R3 (2005-2008) (GC 47-044-29)
manualNo technical questions yet for this part.
